The LIDAR series detector offers wide and precise coverage, with a range of 50x100 meters at a 190° angle. It uses advanced infrared laser scanning technology to ensure reliable and accurate detection. Designed for both indoor and outdoor environments, an installation height of at least 2 meters is recommended for indoor use and 4 meters or more for outdoor use. Powered by 19.2-30 VDC or PoE+ , the device is built with IP66 protection rating, making it resistant to adverse weather conditions - RLS-50100V
LIQUIDACION TOTAL ×
 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

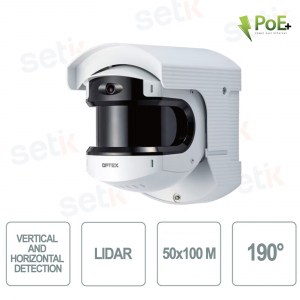

LONG RANGE INDOOR/OUTDOOR LIDAR SERIES DETECTOR - 190° - 50x100M - POE+ - OPTEX

Product details
- LIDAR detector
- Indoor installation height: 2m or more
- External installation height: 4m
- To branch
- Power supply PoE+ or 19.2-30 VDC
- Detection coverage 50x100 m
- IP66 protection
- Dimensions 230x160x256.6 mm
- Weight: 2.6 Kg
Technical data sheet
| Model | RLS-50100V |
| Place of installation | Interior/Exterior |
| Detection method | Infrared Laser Scanning |
| Laser protection class | Class 1 |
| Input power | 19.2-30 VDC, PoE+ (IEEE 802.3at compatible) |
| Current consumption | 500 mA max. (24 VDC), 12 W max. (PoE+) with optional heater: 1.25 A max. (24 VDC), 25.5 W max. (PoE+) |
| Installation Method | Ceiling installation, Wall installation, Pole installation |

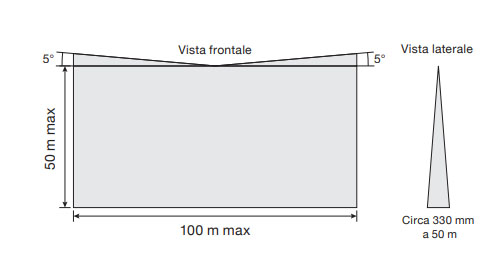

| Detection zones | 50 x 100 m, 190 degrees |
| Detection field | Range 1 to 50m at 10% reflectivity |
| Detection resolution / | 0.125 degrees / from 100 msec. at 15 min. |
| Installation height (vertical mode) | Interior: 2 mo more / Exterior: 4 mo more (Recommended) |
| Communication port | Ethernet RJ-45 10BASE-T/100BASE-TX (Auto Negotiation) |
| Protocol | UDP/TCP/HTTP/HTTPS/IPV4/DNS/DHCP/SNMPv1-v3/NTP/WS-Discovery/ONVIF |
| Exit | 6 outputs, 28 VDC 0.2A max. NO/NC Selectable |
| Entrance | 1 voltage-free contact input |
| Alarm duration | Timer about 2 seconds delay |
| Operating temperature | From -20°C to 60°C with RLS-LWVH: -40°C to 60°C |
| Dimensions (H×W×D), Weight | 230 × 160 × 256.6 mm max., 2.6 kg |
| IP Rating | IP66 |
