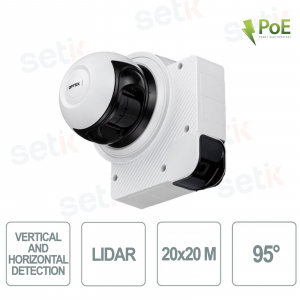

20x20 95° Indoor/Outdoor Short Range Lidar Detector - PoE - Optex

20x20 95° Indoor/Outdoor Short Range Lidar Detector - PoE - Optex

 
-32%

The LIDAR series detector uses an advanced detection mode based on infrared laser scanning, providing a wide and precise coverage of 20x20 meters. Thanks to its robust structure with IP66 certification, it guarantees reliable performance even in harsh environments. Dimensions 206.7x202.6x163.5 mm - RLS-2020A

referencia : RLS-2020A

brand : Optex

Manufacturer Object ( [id] => 49 [name] => Optex [description] =>

Descubra todos los productos optex amplio catálogo de sensores de exterior. Encontrará optex vxi, optex bxs, optex vxi-dam, optex bxs-am, optex vx, optex bx80n, optex vxi-rdam. Todo el mundo de la detección de intrusiones Optex

[short_description] =>

Optex

OPTEX fabricante y líder mundial en tecnología de detección de alto rendimiento. Desde hace más de 40 años en el mercado, Optex cuenta con miles de clientes en todo el mundo que les eligen cada día para sus sistemas de detección fiables.

[id_address] => [date_add] => 2023-07-10 10:37:37 [date_upd] => 2024-06-17 15:20:33 [link_rewrite] => optex [meta_title] => [meta_keywords] => optex deteccion intrusiones, optex catalogo, optex sensores exterieur, optex vxi, optex bxs, optex vxi-dam, optex bxs-am, optex vx, optex bx80n, optex vxi-rdam [meta_description] => [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

LIQUIDACION TOTAL ×

 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

INDOOR/OUTDOOR SHORT RANGE LIDAR SERIES DETECTOR - 95° - 20x20M - POE - OPTEX

Rilevatore LIDAR

Product details

  • LIDAR detector
  • Built-in camera with IR
  • To branch
  • Power supply 19.2-30V DC, PoE
  • Detection coverage 20x20 m
  • IP66 protection
  • Dimensions 202.6 x 206.7 x 163.5 mm
  • Weight: 1.6 Kg

Technical data sheet

Model

 RLS-2020A
Place of installation Interior/Exterior
Detection method Infrared Laser Scanning
Laser protection class Class 1
Input power 19.2-30 VDC, PoE (IEEE 802.3 af/at compliant)
Absorption 420 mA max. (24V DC), 10W max. (POE)
Installation Method On the ceiling, on the wall, on the pole
Detection zones 20 x 20 m, 95 degrees
Detection field Range 1 to 21 m at 10% reflectance

Detection resolution /
Response time

 0.125 degrees / 100 ms to 15 min / 0.25 degrees / 50 ms to 15 min
Installation height (vertical mode) Interior: 2 mo more / Exterior: 4 mo more (Recommended)
Communication port Ethernet RJ-45 10BASE-T/100BASE-TX (auto-negotiation)
Protocol UDP/TCP/HTTP/HTTPS/IPV4/IPV6/DNS/DHCP/ SNMPv1-v3/NTP/WS-Discovery/ONVIF/IEEE802.1X
Exit 6 outputs, 28V DC, 0.2A max. NO/NC (selectable) (6 from main alarm, zone alarm, fault, tamper, environmental disqualification, device monitoring) (programmable) RS-485
Entrance 2 dry contact inputs (detection profile switching, area setting, sensor control, LED switching, AND/NAND logic creation, dynamic event filtering (programmable)
Alarm duration Timer about 2 seconds delay
Operating temperature From -40 °C to +60 °C
Dimensions (H×W×D), Weight 202.6 x 206.7 x 163.5 mm max., 1.6 kg
IP Rating IP66

Detection area

RLS-2020V dimensions

Download

Brochure not available
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
