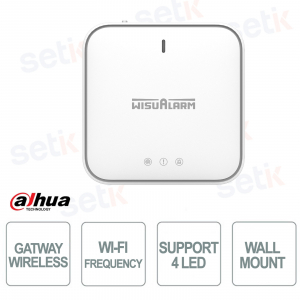

HY-GW01A | WIRELESS GATEWAY

Dahua

The HY-GW01A wireless gateway is the ideal solution for managing WisuLink alarms thanks to its dual Ethernet and Wi-Fi connection, real-time notifications via the Wisualarm app and simple installation both on the wall and on the table.

Main specifications:

- Dual 2.4 GHz Wi-Fi and Ethernet connection

- Real-time push notifications on smartphones

- Support up to 24 interconnected devices

- Status LEDs for power, faults, alarms and network

- OTA software updates always available

- Wall or tabletop installation with compact design

Further details

✅ Dual Ethernet and Wi-Fi communication:
The device integrates a dual-mode connection that supports both wired Ethernet and 2.4 GHz Wi-Fi, ensuring a stable and flexible connection in any environment. This ensures continuous communication with all interconnected WisuLink devices, even in the absence of a Wi-Fi network.
✅ Support OTA (Over-The-Air) software updates:
The gateway supports automatic firmware updates via OTA, allowing for continuous improvement in functionality and performance without the need for technical intervention or wiring, ensuring a product that is always up-to-date and secure over time.
✅ Loud Sound Alarm :
When detecting smoke, the DHI-HY-SA30A-R8 emits a loud audible alarm of over 85 dB at 3 meters, ensuring clear warning even in large rooms or in the presence of other ambient noise.

✅ 4 status LEDs for instant monitoring:
The HY-GW01A features four LED indicators that clearly indicate the status of power (green), fault (yellow), alarm (red), and internet connection (blue). This allows the user to have an immediate visual check on the system status directly from the device.

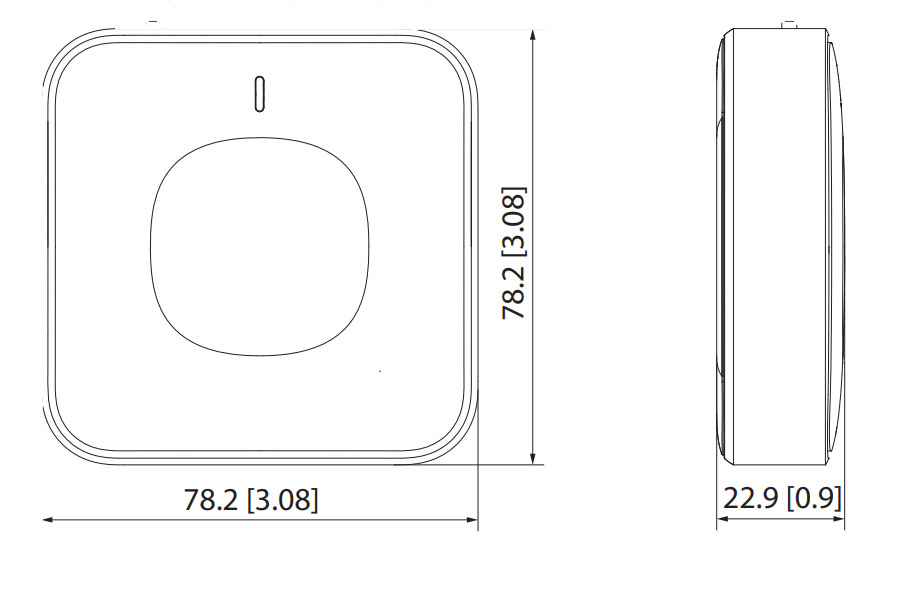

HY-GW01A dimensions

Technical data sheet

Model HY-GW01A
General
Power Supply 5.0V/1.0A
Alarm Volume 70 dB
Alarm Mode Visual and audible alarm
Indicator Light Alarm, fault and operation indicator
LED Instructions Standby: Green indicator stays on continuously
Pairing: Green indicator flashes quickly (once per 0.5 seconds)
Unpairing: All indicators stay on continuously for 3 seconds
Alarm: Red indicator stays on continuously
Fault: Yellow indicator stays on continuously
Distributed the network successfully: Blue indicator stays on continuously
AP distribution mode: Blue indicator flashes quickly (once per 0.5 seconds)
Reset: Red indicator flashes quickly (once per 0.5 seconds)
Wi-Fi Frequency 2.4 GHz (Incompatible with 5 GHz Wi-Fi network)
Wi-Fi Transmission Range 50 m (164 ft)
Wi-Fi Protocol IEEE 802.11b/g/n
Operating Frequency 868 MHz
Maximum Number of Connected Devices 24 WisuLink wireless interconnected products
Color White
Casing ABS
Dimensions L78.2mm × W78.2mm × H22.9mm (L3.08" × W3.08" × H0.90")
Weight 60 g (0.13 lb)
Installation Free-standing/Wall-mounted
Operating Temperature -10°C to +55S°C (+14°F to +131°F)
Operating Humidity ≤95% RH (non-condensing)
Certifications CE, UKCA
