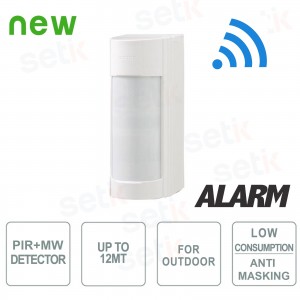

Detector inalámbrico pasivo PIR + MW para exteriores - Baja absorción - Antienmascaramiento

Detector inalámbrico pasivo PIR + MW para exteriores - Baja absorción - Antienmascaramiento

-52%

Rivelatore volumetrico senza fili passivo a Doppia Tecnologia PIR+MW, a doppio fascio e a bassissimo assorbimento. Funzione Antimascheramento. Copertura di rilevazione regolabile sino a 12 metri e 90°, doppia schermatura conduttiva contro i disturbi dovuti a forte luce.  SMDA (Super Multi Dimension analysis), logica avanzata di compensazione della temperatura e d’immunità al rumore. VXI-RDAM-X5



referencia : VXI-RDAM-X5

brand : Guardian

EAN: 788924088556

Manufacturer Object ( [id] => 33 [name] => Guardian [description] => [short_description] => [id_address] => [date_add] => 2019-01-24 17:10:56 [date_upd] => 2019-05-21 12:45:00 [link_rewrite] => guardian [meta_title] => [meta_keywords] => [meta_description] => [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1


LIQUIDACION TOTAL ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

RIVELATORE PASSIVO DOPPIA TECNOLOGIA PIR+MW - ANTIMASCHERMAMENTO - BASSI CONSUMI

RIVELATORE PASSIVO DA ESTERNO DOPPIO FASCIO DOPPIA TECNOLOGIA ANTIMASCHERAMENTO DA ESTERNO BASSO ASSORBIMENTO

DESCRIZIONE:
Il sensore GRD VXI-RDAM è uno dei migliori rivelatori senza fili sul mercato.

Questo dispositivo è munito di doppia tecnologia PIR+MW e doppio fascio con portata 12mt angolo 90°.

  • Logica SMDA per compensazione avanzata della temperatura e immunità ai disturbi ambientali.
    • Doppia schermatura conduttiva del piroelemento contro i disturbi causati da luci intense.
    • Funzione antimascheramento all'infrarosso attivo per il rilevamento di corpi/persone nascoste

Prodotto estremamente affidabile. Basso assorbimento



Funzionamento a batteria



Dettagli prodotto




  • Rivelatore da esterno passivo - Setik
  • Doppia tecnologia PIW+MW
    • Funzionamento a batteria (senza fili)
    • Portata m 12 angolo 90° con fasci di rilevazione regolabili nella portata.
    • Logica SMDA per compensazione avanzata della temperatura e immunità ai disturbi ambientali.
    • Configurazione rettangolare dell’area di rilevazione con adesivi di mascheramento pre-tagliati.
    • Doppia schermatura conduttiva del piroelemento contro i disturbi causati da luci intense.
    • Funzione antimascheramento ad infrarossi attivi per rilevare il mascheramento con oggetti coprenti.
      • Basso Assorbimento
      • Versione a doppia tecnologia estremamente robusta basata sul modulo microonde OPTEX placcato oro.
  • Prodotto di qualità

Scheda tecnica

Model VXI-RDAM-X5
Detection method Passive infrared & Microwave
PIR coverage 12.0 m (40 ft) wide / 16 zones
PIR distance limit 12 - 2.5 m (5 levels)
Detectable speed 0.3 – 1.5 m/s (1 - 5 ft/s)
Sensitivity 2.0°C (3.6°F) at 0.6 m/s (2 ft/s)
Power input 3 – 9 V DC(Lithium or Alkaline Battery)
Current draw 18μA (standby) / 8 mA (max) at 3 V DC
Alarm period 2.0 ±1 sec.
Warm-up period Approx. 60 sec. (LED blinks)
Alarm output N.C. / N.O. Selectable-Solid State Switch 10 V DC 0.01 A (max)
Trouble output N.C. / N.O. Selectable-Solid State Switch 10 V DC 0.01 A (max)
LED indicator

Disable: During normal operation.

Enable: During WALK TEST or LED SW on.

Red: Warm-up, alarm, masking detection. Yellow: Warm-up, MW detect

RF interference No alarm 10 V/m
Operating temperature -20 – +45°C (-4 – +113°F)
Environment humidity 95% max.
International protection IP55
Mounting Wall, Pole (Outdoor, Indoor)
Mounting height 0.8 – 1.2 m (2.64 ft – 3.94 ft)
Weight 600 g (21.2 oz.)
Accessories Connector for POWER and ALARM, Connector for TROUBLE,
Screw (4×20mm) ×2, Masking seal ×3
