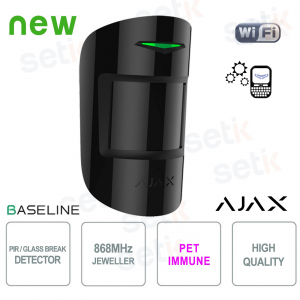

Ajax CombiProtect Jeweler Black: High-Security Wireless PIR and Glass Breakage Sensor

Ajax CombiProtect Jeweler Black: High-Security Wireless PIR and Glass Breakage Sensor

 
BEST PRICE

38096.06.BL1 # 38096 | Ajax CombiProtect Jeweller black is an advanced wireless sensor that combines PIR motion detection and glass break analysis via microphone, ensuring reliable security in any environment. Thanks to the SmartDetect algorithm and animal immunity, it avoids false alarms while maintaining a coverage of up to 12 m with an 88.5° angle. DualTone glass break technology ensures accuracy up to 9 m , filtering out noises such as dog barking or traffic. Jeweller communication offers a range of up to 1,200 m , with encryption and anti-spoofing authentication. Easy to install via QR code, it guarantees up to 5 years of battery life with the pre-installed battery. Ajax

Technical Data Sheet

referencia : 38096.06.BL1

brand : Ajax Systems

EAN: 4823114014963

Disponibilità: 35

Manufacturer Object ( [id] => 31 [name] => Ajax Systems [description] =>

Establecido en 2011, Ajax Systemconstruye sistemas inalámbricos de incendio y alarma con la tecnología inalámbrica JEWELLER que le permite monitorear de manera segura todos los dispositivos de red conectados. Ajax System ofrece soluciones para el hogar, la oficina o las actividades comerciales, gestionables a través de la App, siempre actualizadas y compatibles con los sistemas iOS y Android. Los sistemas de alarma de Ajax System son fáciles de instalar, de hecho sólo toma 15 segundos conectar la unidad de control a los sensores. Además, pueden integrarse con las cámaras de vigilancia, tienen un margen de error casi nulo y, en caso de peligro, en menos de 150 milisegundos envían una notificación (sms, push o call).

[short_description] =>

Ajax SystemsAjax Systems


Los sistemas de alarma Ajax system utilizan la última tecnología inalámbrica que hace que todos los productos sean fiables y estén siempre conectados. Además de su excelente rendimiento, los sistemas de alarma Ajax se distinguen por su diseño moderno y elegante.

[id_address] => [date_add] => 2019-01-15 15:51:16 [date_upd] => 2025-06-11 12:47:32 [link_rewrite] => ajax-systems [meta_title] => Sistemas de incendio y alarma de última generación - Ajax System [meta_keywords] => sistemi allarme ajax,sicurezza ajax,allarmi ajax,ajax security system,ajax security,ajax system [meta_description] => I sistemi allarme Ajax system sono dispositivi wireless affidabili e innovativi, non producono falsi allarmi e si installano in 15 secondi. Scoprili su Setik.biz! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

CARTEL GRATUITO DE TVCC×

Con todos >> KITS AJAX

LIQUIDACION TOTAL ×

 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

38096.06.BL1 | Wireless IR Motion and Glass Break Detector with Microphone


Ajax

The Ajax CombiProtect Jeweller, 38096.06.BL1, black , is a professional sensor that combines PIR motion detection and glass break analysis, providing comprehensive protection for both residential and commercial environments. Thanks to the SmartDetect algorithm and DualTone filter, it ensures maximum accuracy, preventing false alarms, while Jeweller radio technology offers encrypted communication up to 1,200 m. QR code installation and a battery life of up to 5 years ensure quick and reliable operation over time.

Main specifications:

- Motion detection up to 12 m with 88.5° angle

- Glass break detection up to 9 m with 180° angle

- Jeweller technology with range up to 1,200 m and advanced encryption

- Animal immunity up to 20 kg / 50 cm

- Battery life up to 5 years with pre-installed CR123A battery

- Quick installation with QR code and app management

Further details

✅ Jeweler Communication :
Jeweller technology ensures stable and secure radio communication up to 1,200 m , supported by advanced encryption and device authentication to prevent spoofing, ensuring constant monitoring thanks to regular polling of the sensor status.
✅ Detection :
The built-in PIR sensor detects motion up to 12 meters away with a wide 88.5° horizontal angle, supported by an intelligent algorithm that drastically reduces false alarms and pet immunity up to 20 kg and 50 cm.
✅ Glass break detection :
The electret microphone detects glass breaking up to 9 m away, analyzing both low and high frequencies to distinguish real breaking noises from similar sounds, offering effective protection even in environments with large glass surfaces.
✅ Glass breakage characteristics :
The DualTone algorithm identifies glass breakage through a double acoustic verification, filtering out common sources of disturbance such as dog barking or truck noises, ensuring accurate detection over a 180° angle.
✅ Anti-sabotage protection:
The device integrates systems against tampering and interference, continuously monitoring its status and communicating any sabotage attempts via the encrypted network, ensuring operational integrity even in critical contexts.
✅ Power supply:
Powered by a pre-installed CR123A battery, it offers up to 5 years of battery life, maintaining efficiency even in climatic conditions between –10°C and +40°C, with automatic low battery warnings to ensure continuous operation.

Technical data sheet

38096.06.BL1
Communication
Jeweler communication technology Proprietary wireless communication technology to transmit commands, alarms, and events.
Key features:
  • Two-way communication.
  • Advanced anti-sabotage.
  • Block encryption featuring a dynamic key.
  • Instant notifications.
  • Remote configuration via the Ajax apps.
Radio frequency bands 866.0 - 866.5 MHz
868.0 - 868.6 MHz
868.7 - 869.2 MHz
905.0 - 926.5 MHz
915.85 - 926.5 MHz
921.0 - 922.0 MHz
Depence on the sales reaction
Maximum effective radiated power (ERP) up to 20 mW
Automatic power control to reduce power consumption and radio interference.
Radio signal modulation GFSK
Radio signal range Up to 1,200 m
up to 3,900 ft
Between the detector and a hub (or radio signal range extender) in an open space.
Encrypted radio communication All the data stored and transmitted are protected by block encryption featuring a dynamic key.
Frequency hopping Radio communication uses frequency hopping to prevent interception and jamming
Detection
Sensitive element PIR sensor
Motion detection distance up to 12 m
up to 39 ft
When installed at the height of 2.4 m.
When installed at the height of 7.9 ft.
Motion detection angles horizontal: 88.5°
Motion detection speed from 0.3 to 2 m/s
from 1 to 6.6 ft/s
The direction of the detector lens should be perpendicular to an alleged intrusion path into the facility.
Sensitivity 3 levels
Adjusted by PRO or user with admin rights in the Ajax app.
Pet immunity weight: up to 20 kg
weight: up to 44 lb
height: up to 50 cm
height: up to 1.6 ft
False alarm prevention SmartDetect
Software algorithm
Temperature compensation Effective motion detection at temperatures
from −10°C to +40°C.
from 14°F to 104°F.
Recommendations It is recommended to install the detector at a height of 2.4 m.
It is recommended to install the detector at a height of 7.9 ft.
The device is designed for indoor use only.
Glass break detection
Sensitive elements electret microphone
Glass break detection distance from 0.3 up to 9 m
from 1 to 30 ft
Glass break detection angles horizontal: 180°
Sensitivity 3 levels
Adjusted by PRO or user with admin rights in the Ajax app.
False alarm prevention DualTone
Two-factor glass break verification software algorithm: by low and high frequencies.
Glass break characteristics
Minimum glass size 279 × 279 mm
11″ × 11″
Detection distance is up to 9 m (30 ft) for all glass types when the High sensitivity level is selected.
Glass types and their thickness:
  • standard bread — 3 mm (⅛") and 10 mm (⅜′′)
  • tempered glass — 3 mm (⅛") and 10 mm (⅜′′)
  • laminated glass — 3 mm (⅛") and 13 mm (½′′)
  • wired glass — 6 mm (¼′′)
  • insulated glass — 3 mm (⅛") and 6 mm (¼")
  • annealed glass — 1.6 mm (1/16”)
Caution The device will not detect glass breaking if the glass is covered with shockproof, sunscreen, decorative, or any other film.
Sabotage protection
Tamper alarm Notifications on attempts to detach the device from the surface or remove it from the mounting panel.
Holding screw to secure the detector on SmartBracket
Protection against spoofing device authentication
Communication loss detection after 36 s
Detection time depends on the Jeweler or Jeweller/Fibra settings.
Power Supply
Battery 1 × CR123A
Pre-installed.
Type type C
Calculated battery life up to 5 years
Detector's operating voltage range 2.1−3.3 V⎓
Device's nominal operating voltage 3 V⎓
Quiescent device's current consumption at nominal voltage 38 μA
Maximum device's current consumption at nominal voltage 60 mA
Full battery capacity 1,600 mAh
Low battery voltage 2.5 V⎓
Low battery recovery voltage 2.7 V⎓
End-of-life battery voltage 2.1 V⎓
Device is switched off.
End-of-life battery capacity 300 mAh
Manufacturer Huiderui or Duracell
UL listed.
Enclosure
Color Black
Dimension 110 × 65 × 50 mm
4.33″ × 2.56″ × 1.97″
Weight 92 g
3.25 oz
Operating temperature range from −10 °C to +40 °C
from 14 °F to 104 °F
Temperature range from 32 °F (0 °C) to 120 °F (+49 °C) is certified according to UL/ULC standards.
Operating humidity up to 75%
Humidity of up to 93% is certified according to UL/ULC standards.
Casing protection class IP50
Complete set CombiProtect Jeweler
SmartBracket mounting panel
CR123A battery (pre-installed)
Installation kit
Quick start guide
Warranty 24 months
