38195.36.WH1 | Wireless IR Curtain Motion Detector


Ajax

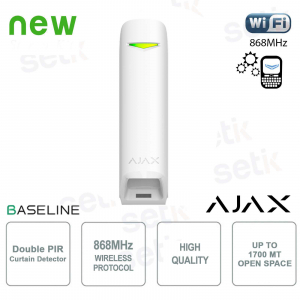

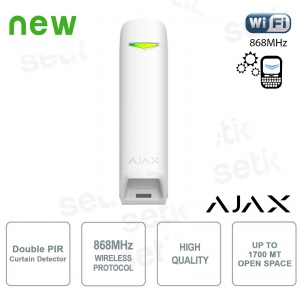

The Ajax MotionProtect Curtain Jeweller, 38195.36.WH1, white, is an IR curtain sensor ideal for protecting corridors, doors, windows, and narrow passages thanks to its ultra-narrow 6° detection angle and ability to detect motion up to 15 meters, ensuring maximum accuracy and reducing false alarms. The rugged IP54 -certified construction ensures resistance to dust and moisture, while Jeweller's long-range communication of up to 1,700 m ensures fast and secure transmission. Thanks to temperature compensation and an advanced motion processing algorithm, the sensor maintains consistent performance in any environment. It operates for up to 3 years with the pre-installed battery and can be configured via the app via QR code for quick and easy installation.

Main specifications:

- Detection up to 15m with 6° narrow IR angle for targeted protection

- IP54 dust and moisture resistant construction

- Anti-false alarm algorithm for reliable detections

- Jeweler communication up to 1,700 m with two-way transmission

- Up to 3 years of battery life with pre-installed battery

- Configuration via app and simple installation via QR code

Further details

✅ Jeweler Communication :
The MotionProtect Curtain uses the Jeweller radio protocol, an advanced technology that ensures secure two-way communication up to 1,700 meters . The system uses encryption, device authentication, and ping control to maintain a stable connection and resist interference, ensuring that every alarm is transmitted quickly and reliably to the central system.
✅ Detection :
The MotionProtect uses a high-precision PIR sensor that detects motion up to 12 meters away with a wide 88.5° angle, as shown in the coverage map on page 1. The advanced optics and software filter out interference and recognize the difference between a person and pets up to 20 kg , while minimizing false alarms thanks to thermal analysis and the SmartDetect algorithm.
✅ Anti-sabotage protection:
The device integrates a comprehensive security system, including a tamper protection that immediately signals unauthorized opening or removal, as well as an algorithm that detects sensor deception attempts. This combination ensures safe and continuous operation, preventing device compromise or unauthorized deactivation.
✅ Power supply:
Powered by a pre-installed battery, the MotionProtect Curtain offers up to 3 years of battery life, reducing maintenance and ensuring continuous operation. Energy efficiency is optimized to ensure consistent performance without sacrificing signal strength or detection accuracy, making it ideal for long-term installations.

Technical data sheet

38195.36.WH1
Communication
Jeweler communication technology Proprietary wireless communication technology to transmit commands, alarms, and events.
Key features:
  • Two-way communication.
  • Advanced anti-sabotage.
  • Block encryption featuring a dynamic key.
  • Instant notifications.
  • Remote configuration via the Ajax apps.
Radio frequency bands 866.0 - 866.5 MHz
868.0 - 868.6 MHz
868.7 - 869.2 MHz
905.0 - 926.5 MHz
915.85 - 926.5 MHz
921.0 - 922.0 MHz
Depence on the sales reaction
Maximum effective radiated power (ERP) up to 20 mW
Automatic power control to reduce power consumption and radio interference.
Radio signal modulation GFSK
Radio signal range Up to 1,700 m
up to 5,600 ft
Between the detector and a hub (or radio signal range extender) in an open space.
Encrypted radio communication All the data stored and transmitted are protected by block encryption featuring a dynamic key.
Frequency hopping To prevent radio interference and jamming
Detection
Sensitive element 2 × PIR sensors
Motion detection distance up to 6–15 m
When installed at a height of 2.4 m, and the Correlation Signal Processing feature is disabled. It also depends on the sensitivity level adjusted in the device settings.
up to 6–8 m
When installed at a height of 2.4 m, and the Correlation Signal Processing feature is enabled. It also depends on the sensitivity level adjusted in the device settings.
Motion detection angles horizontal: 6°
vertical — 90°
Motion detection speed from 0.3 to 2.0 m/s
The direction of the detector lens should be perpendicular to an alleged intrusion path into the facility.
Sensitivity 3 levels
Adjusted by PRO or user with admin rights in the Ajax app.
Pet immunity Install the detector upside down to prevent it reacting to domestic animals.
Temperature compensation Effective motion detection at temperatures
from −10°C to +40°C.
from 14°F to 104°F.
Recommendations It is recommended to install the detector at height of 2.4 m.
It is recommended to install the detector at height of 7.9 ft.
The device is designed for indoor use only.
Sabotage protection
Tamper alarm Notifications on attempts to detach the device from the surface or remove it from the mounting panel.
Protection against spoofing device authentication
Communication loss detection after 36 s
Detection time depends on the Jeweler or Jeweller/Fibra settings.
Power Supply
Battery 1 × CR123A
Pre-installed.
Type Type C
Calculated battery life up to 5 years
Detector's operating voltage range 2.1−3.3 V⎓
Device's nominal operating voltage 3 V⎓
Quiescent device's current consumption at nominal voltage 41 mA
Maximum device's current consumption at nominal voltage 60.4 mA
Full capacity 1,600 mAh
Low battery voltage 2.5 V⎓
Low battery recovery voltage 2.7 V⎓
End-of-life battery voltage 2.1 V⎓
Device is switched off.
End-of-life battery capacity 300 mAh
Manufacturer Huiderui
Enclosure
Color White
Dimension 134 × 44 × 34 mm
with bracket
134 × 52 × 41 mm
Weight 118 g
Operating temperature range from −10 °C to +40 °C
from 14 °F to 104 °F
Operating humidity up to 75%
Casing protection class IP54
Complete set MotionProtect Curtain Jeweller
SmartBracket mounting panel
Bracket
CR123A battery (pre-installed)
Installation kit
Quick start guide
Warranty 24 months
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
