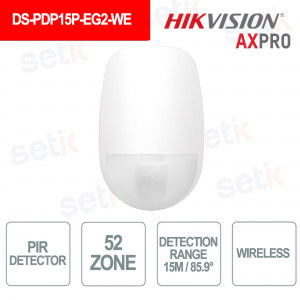

DS-PDP15P-EG2-WE / DS-PDIR15P-EG2-WE Wireless PIR Sensor AX PRO 15m Pet Immunity 30kg - Hikvision

DS-PDP15P-EG2-WE / DS-PDIR15P-EG2-WE Wireless PIR Sensor AX PRO 15m Pet Immunity 30kg - Hikvision

 
BEST PRICE -35%

DS-PDP15P-EG2-WE / DS-PDIR15P-EG2-WE is a wireless PIR motion detector for AX PRO intrusion systems , designed for indoor security. It offers a detection range of up to 15 meters , a 90° coverage angle and 84 detection zones , with pet immunity up to 30 kg . It integrates SEC technology with digital signal processing and 3D optics , tamper protection and digital temperature compensation. The 868 MHz Tri-X two-way wireless transmission , with AES-128 encryption and a range of up to 1.6 km in open field , guarantees protected communications. It features remote configuration via APP , anti-jamming protection with frequency hopping and a CR123A battery with up to 5 years of battery life , ideal for professional alarm installations.

Technical Data Sheet

referencia : DS-PDP15P-EG2-WE

brand : Hikvision

EAN: 6942160434605

Disponibilità: 150

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Desde el año de su nacimiento, su prestigio ha crecido tanto que en 2015 se convertirá en la primera realidad mundial en materia de seguridad.

A partir de 2016 Hikvision expande su mercado convirtiéndose en Proveedor de Soluciones Totales para todo el mercado de la seguridad. Así entra en el mundo de la detección de intrusos y luego se acerca a las nuevas tecnologías e inteligencia al servicio de la humanidad ocupándose de IO, Visión Artificial, Robótica y Sistemas Automovilísticos. De líder en seguridad, Hikvision se convierte con compromiso, pasión y competencia en una empresa de alta tecnología con una visión 4.0, siempre apuntando alto.

Por lo tanto, Setik se siente honrado de ser un distribuidor de Hikvision. Como siempre, ofreceremos productos de última generación y el apoyo técnico y comercial adecuado.

[short_description] =>

Videosorveglianza Hikvision

Hikvision fue fundada en 2001 con el objetivo de crear y desarrollar soluciones profesionales completas de videovigilancia, convirtiéndose rápidamente en un líder en el mundo de la seguridad.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Seguridad hikvision [meta_keywords] => Seguridad hikvision [meta_description] => Hikvision fue fundada en 2001 y pronto se convirtió en líder del mundo de la videovigilancia. Descubra ahora los productos del catálogo! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

DS-PDP15P-EG2-WE / DS-PDIR15P-EG2-WE – WIRELESS PIR MOTION SENSOR

Hikvision AXPro Alarms

The Hikvision DS-PDP15P-EG2-WE / DS-PDIR15P-EG2-WE is a wireless PIR motion sensor for intruder alarm systems , ideal for protecting indoor environments. It offers a detection range of up to 15 meters , a 90° coverage angle and 84 detection zones , with pet immunity up to 30 kg . It integrates SEC technology with 3D optics , digital signal processing, temperature compensation and front and rear tamper protection . The 868 MHz Tri-X two-way wireless technology , with AES-128 encryption and a range of up to 1.6 km in open field , ensures secure communications. It features remote configuration via APP, anti-jamming protection and a CR123A battery with a battery life of up to 5 years , for simple and reliable installation.

Main specifications:

  • Type: Indoor wireless PIR sensor
  • Detection: 15m, 90°, 84 zones
  • Pet Immunity: Up to 30 kg
  • Technology: SEC with 3D optics
  • Transmission: 868 MHz bidirectional Tri-X
  • Wireless range: Up to 1.6 km
  • Security: AES-128 and anti-jamming
  • Protection: Front and rear tamper-proof
  • Management: Remote configuration via APP
  • Power supply: CR123A battery, up to 5 years

Further details

✅ Type:
The Hikvision DS-PDP15P-EG2-WE is a wireless passive infrared PIR motion detector , designed for indoor protection in AX PRO intruder alarm systems . Featuring two-way communication and continuous supervision, it detects suspicious movements and reports any anomalies, ensuring reliable monitoring of residential and commercial spaces.

✅ Detection :
The PIR sensor offers a detection range of up to 15 meters , a 90° coverage angle and 84 detection zones , allowing you to effectively monitor indoor environments. It supports motion detection with speeds ranging from 0.3 to 2 m/s , has adjustable sensitivity (Auto, High and Pet ) and integrates Creep Zone Protection.
✅ Pet Immunity:
Thanks to the Pet Immunity function up to 30 kg , the detector is designed to distinguish human movements from those of pets , reducing the risk of false alarms caused by their presence. The Pet sensitivity mode allows you to optimize detection in environments where people and animals live together.

✅ Technology:
It integrates SEC (Smart Environmental Control) technology with advanced digital signal processing and 3D optics , designed to improve detection accuracy. It features digital temperature compensation, sealed optics , and a white light filter up to 6500 lux , helping maintain reliable performance in different environmental conditions.
✅ Transmission:
It uses Tri-X Wireless technology with 868 MHz two-way radio communication , which allows the exchange of information between the sensor and the alarm system. It integrates AES-128 encryption for communication protection and anti-jamming frequency hopping , which allows the radio frequency to be varied to counter interference and improve transmission reliability.
✅ Wireless range:
Tri-X Wireless technology guarantees a communication range of up to 1.6 km in open field , allowing radio connection to the alarm control panel even at great distances. Supervised two-way transmission and a signal strength indicator make it easy to check the connection and choose the installation location.
✅ Protection:
The detector integrates front and rear tamper protection , designed to report attempts at unauthorized opening or removal. It also features device status monitoring, low battery warning, under-area protection, and AES-128 encrypted transmission , contributing to the overall security of the intrusion detection system.
✅ Power supply:
The sensor is powered by a single 3V CR123A lithium battery , which provides up to 5 years of standby time , reducing maintenance requirements. The easily replaceable battery , with a protected PCB, allows for convenient power management, while the low battery indicator lets you monitor battery status.

Technical data sheet

DS-PDP15P-EG2-WE
Detection Performance yes
Detection method Passive Infrared
Detection Range 15m
Detection angle 85.9°
Detection Zones 52
Detectable Speed 0.3-2m/s
Pet Immunity 30kg
White Light Filter 6500lux
Digital Temperature Compensation Support
Creep Zone Protection Support
Feature
Digital Processing Support
Sale optics Support
Tamper Protection Front; Rear
Environment Temperature Indicator Support
Signal Strength Indicator Support
Interface
Power Switch Power Up Enrolling
LED Indicator Blue (Alarm)
Transmission
Transmission Technology Tri-X Wireless
Transmission Method Two-Way RF Wireless
Transmission Frequency 868MHz
Transmission Security AES-128 Encryption
Transmission Range(Free Space) 1.6km
Frequency Hopping Support
Enrolling Method Power up; Remote ID; QR Code
Electrical Characteristics
Standard Battery Life 5 years in work status (being triggered 20 times per day)
Power Supply Battery Powered
Battery Type CR123A x 1
Typical Voltage 3V
General
Operation Temperature -10 °C to 55 °C (14 °F to 131 °F)
Storage Temperature -20 °C to 60 °C (-4 °F to 140 °F)
Operation Humidity 10% to 90%
Dimensions (WxHxD) 65.5mm × 103mm × 48.5mm
Weight 128g
Mounting Height 1.8 to 2.4m
Mounting Method Wall
Application Scenario Indoor
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
