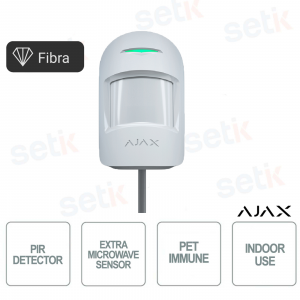

Ajax Superior MotionProtect Plus Fiber White – Wired PIR Motion and Microwave Sensor

Ajax Superior MotionProtect Plus Fiber White – Wired PIR Motion and Microwave Sensor

 
ANUNCIOS

AJAX FIBER | 143624.02.WH1 (ex. 44408.02.WH1) # 143624 | Ajax Superior MotionProtect Plus Fiber white is a wired motion detector designed for Ajax professional security systems, ideal for highly reliable indoor environments. It combines a high-precision PIR sensor and a K-band microwave sensor to filter thermal interference and ensure accurate detection up to 12 meters at an 88.5° angle . The advanced SmartDetect algorithm effectively reduces false alarms and integrates pet immunity up to 20 kg , making it suitable even for spaces with pets. Encrypted two-way Fiber wired communication up to 2000 m ensures secure transmissions and constant monitoring of the device. It features anti-sabotage protection with tamper notifications , while direct power supply from the low-power Fiber line ensures operational continuity and low maintenance, with a discreet and professional black Ajax design.

Technical Data Sheet

referencia : 143624.02.WH1

brand : Ajax Systems

EAN: 4823114020049

Manufacturer Object ( [id] => 31 [name] => Ajax Systems [description] =>

Establecido en 2011, Ajax Systemconstruye sistemas inalámbricos de incendio y alarma con la tecnología inalámbrica JEWELLER que le permite monitorear de manera segura todos los dispositivos de red conectados. Ajax System ofrece soluciones para el hogar, la oficina o las actividades comerciales, gestionables a través de la App, siempre actualizadas y compatibles con los sistemas iOS y Android. Los sistemas de alarma de Ajax System son fáciles de instalar, de hecho sólo toma 15 segundos conectar la unidad de control a los sensores. Además, pueden integrarse con las cámaras de vigilancia, tienen un margen de error casi nulo y, en caso de peligro, en menos de 150 milisegundos envían una notificación (sms, push o call).

[short_description] =>

Ajax SystemsAjax Systems


Los sistemas de alarma Ajax system utilizan la última tecnología inalámbrica que hace que todos los productos sean fiables y estén siempre conectados. Además de su excelente rendimiento, los sistemas de alarma Ajax se distinguen por su diseño moderno y elegante.

[id_address] => [date_add] => 2019-01-15 15:51:16 [date_upd] => 2025-06-11 12:47:32 [link_rewrite] => ajax-systems [meta_title] => Sistemas de incendio y alarma de última generación - Ajax System [meta_keywords] => sistemi allarme ajax,sicurezza ajax,allarmi ajax,ajax security system,ajax security,ajax system [meta_description] => I sistemi allarme Ajax system sono dispositivi wireless affidabili e innovativi, non producono falsi allarmi e si installano in 15 secondi. Scoprili su Setik.biz! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

CARTEL GRATUITO DE TVCC×

Con todos >> KITS AJAX

LIQUIDACION TOTAL ×

 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

143624.02.WH1 | K-BAND MICROWAVE WIRED IR MOTION DETECTOR ADDED

Ajax

The Ajax Superior MotionProtect Plus Fibra, 143624.02.WH1 (ex. 44408.02.WH1), white is a professional wired motion detector designed to ensure high reliability in Ajax indoor security systems. It combines a high-precision PIR sensor and a K-band microwave sensor , effectively filtering thermal interference and reducing false alarms. Detection up to 12 meters with an 88.5° angle ensures accurate coverage of protected spaces. The advanced SmartDetect algorithm improves motion analysis and integrates pet immunity up to 20 kg , making it suitable even for contexts with pets. Encrypted two-way wired Fiber communication up to 2000 m ensures stability, security and constant monitoring of the device. The profile is completed by anti-sabotage protection with tamper notifications and direct power supply from the low-consumption Fiber line , ideal for discreet and continuous professional installations.

Main specifications:

- High precision PIR sensor with detection up to 12m

- K-band microwave sensor to filter thermal interference

- SmartDetect algorithm with advanced false alarm reduction

- Pet immunity up to 20 kg and 50 cm in height

- Wired communication Bidirectional encrypted fiber up to 2000 m

- Anti-sabotage protection and direct power supply from the fiber line

Further details

✅ Fiber Communication :
The device uses Ajax Fiber technology , a two-way wired protocol that ensures fast, secure and stable transmissions , with encryption, device authentication and continuous polling of the operating status, supporting installations up to 2000 meters away from the hub for complex professional installations.
✅ Detection :
Thanks to the combination of a high sensitivity PIR sensor and a K-band microwave sensor , the system detects real movements up to 12 meters with an 88.5° angle , filtering thermal interference and drastically reducing false alarms through the SmartDetect algorithm and pet immunity up to 20 kg.
✅ Anti-sabotage protection:
The detector integrates anti-tampering , removal notifications and constant connection monitoring , sending immediate alerts in case of sabotage attempts or anomalies to ensure continuous and reliable security.
✅ Power supply:
Powered by a 5–30 V⎓ fiber line , the device ensures operational continuity without batteries , with low consumption and minimal maintenance, ideal for permanent professional installations.

Technical data sheet

143624.02.WH1
Communication
Fiber communication technology Proprietary wired communication technology. Fiber combines the reliability of wires with the freedom of radio connection.
Key features:
  • Two-way communication.
  • Advanced anti-sabotage.
  • Instant notifications.
  • Remote configuration via the Ajax apps.
Line connection 4-core cable
Fiber line length up to 2,000 meters
up to 6,500 ft
When using the U/UTP cat.5 twisted pair.
Detection
Sensitive element 1 × PIR sensor
1 × K-band microwave sensor
When the device detects motion, it conducts an additional RF scan to eliminate false alarms due to thermal interference: air flows, heated curtains and blinds, fans, fireplaces, air conditioners, and other likely sources of false alarms
Motion detection distance up to 12 meters
When installed at 2.4 meters height.
up to 39 ft
When installed at 7.9 ft height.
Motion detection angles horizontal — 88.5°
vertical — 80°
Motion detection speed from 0.3 to 2.0 m/s
from 1 to 6.6 ft/s
The direction of the detector lens should be perpendicular to the intended path of entry into the room
Sensitivity 3 levels
Sensitivity can be adjusted by PRO or user with admin rights in an Ajax app.
Pet immunity up to 20 kg
up to 50 cm height
up to 44 lb
up to 1.6 ft height
False alarm prevention SmartDetect
Software algorithm
Temperature compensation Effective motion detection within −10°C to +40°C range
Effective motion detection within 14°F to 104°F range
Sabotage protection
Tamper alarm Alerts of attempts to detach the detector from the surface or remove the mounting panel.
Protection against forgery devices authentication
Power Supply
Fiber line power supply 5−30 V⎓, up to 50 mW
The detector is powered by the control panel.
Enclosure
Color White
Dimension 110 × 65 × 50 mm
4.33″ × 2.56″ × 1.97″
Weight 96 g
3.39 oz
Operating temperature range from −10 °C to +40 °C
from 14 °F to 104 °F
Operating humidity up to 75%
Casing protection class IP50
Complete set Superior MotionProtect Plus Fiber
SmartBracket mounting panel
Installation kit
Quick start guide
Warranty 24 months
