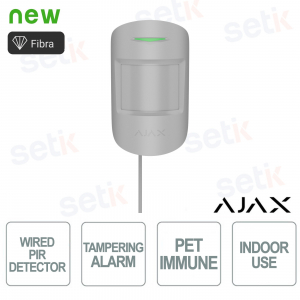

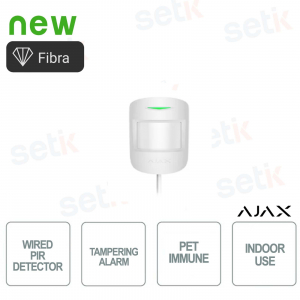

Ajax Superior MotionProtect Fibra White – Wired PIR Motion Sensor with Fiber Technology

Ajax Superior MotionProtect Fibra White – Wired PIR Motion Sensor with Fiber Technology

 

AJAX FIBER | 143618.09.WH1 (ex.44405.09.WH1) # 143618 | Ajax Superior MotionProtect Fiber white is a wired PIR motion detector designed for high-performance professional security systems. Thanks to the high-precision PIR sensor with a range of up to 12 meters and a detection angle of 88.5° , it ensures effective control of indoor environments. The SmartDetect digital algorithm with three sensitivity levels reduces false alarms and integrates pet immunity up to 20 kg , making it ideal even in environments with pets. Encrypted two-way Fiber wired communication up to 2000 m ensures fast, secure transmissions and constant monitoring of the device status. It features anti-sabotage protection with tamper, disconnection and short circuit detection , increasing system reliability. The compact black design and direct power supply from the low-consumption Fiber line make it perfect for continuous and discreet professional installations. Ajax

Technical Data Sheet

referencia : 143618.09.WH1

brand : Ajax Systems

EAN: 4823114079269

Disponibilità: 62

Manufacturer Object ( [id] => 31 [name] => Ajax Systems [description] =>

Establecido en 2011, Ajax Systemconstruye sistemas inalámbricos de incendio y alarma con la tecnología inalámbrica JEWELLER que le permite monitorear de manera segura todos los dispositivos de red conectados. Ajax System ofrece soluciones para el hogar, la oficina o las actividades comerciales, gestionables a través de la App, siempre actualizadas y compatibles con los sistemas iOS y Android. Los sistemas de alarma de Ajax System son fáciles de instalar, de hecho sólo toma 15 segundos conectar la unidad de control a los sensores. Además, pueden integrarse con las cámaras de vigilancia, tienen un margen de error casi nulo y, en caso de peligro, en menos de 150 milisegundos envían una notificación (sms, push o call).

[short_description] =>

Ajax SystemsAjax Systems


Los sistemas de alarma Ajax system utilizan la última tecnología inalámbrica que hace que todos los productos sean fiables y estén siempre conectados. Además de su excelente rendimiento, los sistemas de alarma Ajax se distinguen por su diseño moderno y elegante.

[id_address] => [date_add] => 2019-01-15 15:51:16 [date_upd] => 2025-06-11 12:47:32 [link_rewrite] => ajax-systems [meta_title] => Sistemas de incendio y alarma de última generación - Ajax System [meta_keywords] => sistemi allarme ajax,sicurezza ajax,allarmi ajax,ajax security system,ajax security,ajax system [meta_description] => I sistemi allarme Ajax system sono dispositivi wireless affidabili e innovativi, non producono falsi allarmi e si installano in 15 secondi. Scoprili su Setik.biz! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

CARTEL GRATUITO DE TVCC×

Con todos >> KITS AJAX

LIQUIDACION TOTAL ×

 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

143618.09.WH1 | WIRED IR MOTION DETECTOR

Ajax

The Ajax Superior MotionProtect Fibra, 143618.09.WH1 (ex. 44405.09.WH1), white is a wired PIR motion detector designed for Ajax professional security systems, ideal for reliable monitoring of indoor environments. The high-precision PIR sensor with a range of up to 12 meters and a detection angle of 88.5° ensures effective monitoring of protected areas. The SmartDetect digital algorithm with three sensitivity levels reduces false alarms and guarantees pet immunity up to 20 kg , making it suitable even for environments with pets. Encrypted two-way wired Fiber communication up to 2000 m provides secure transmissions and constant monitoring of the device status. It integrates anti-sabotage protection with tamper, disconnection and short circuit detection , while the direct power supply from the low-consumption Fiber line ensures operational continuity and discreet professional installations.

Main specifications:

- PIR sensor with a range of up to 12 m and an angle of 88.5°

- SmartDetect algorithm with three sensitivity levels and pet immunity up to 20 kg

- Wired communication Bidirectional encrypted fiber up to 2000 m

- Tamper protection with tamper and disconnection detection

- Direct power supply from the low-consumption fiber line

- Compact white design for professional installations

Further details

✅ Fiber Communication :
The detector uses Ajax Fiber technology , a two-way wired protocol that ensures fast, stable and secure transmissions , with advanced encryption, device authentication and continuous polling of the operating status, supporting distances of up to 2000 meters for large professional installations.
✅ Detection :
Thanks to the highly sensitive PIR sensor with a range of up to 12 meters and a detection angle of 88.5° , the device ensures effective monitoring of indoor environments. The SmartDetect digital algorithm and three configurable sensitivity levels drastically reduce false alarms, integrating pet immunity up to 20 kg.
✅ Anti-sabotage protection:
The sensor integrates anti-tampering , short circuit protection and connection loss detection , sending immediate notifications in case of sabotage attempts or anomalies, for constant perimeter security .
✅ Power supply:
Powered via a 5–30 V⎓ fiber line with low consumption , the device guarantees operational continuity without batteries , reducing maintenance and making it ideal for reliable and long-lasting professional installations.

Technical data sheet

143618.09.WH1
Communication
Fiber communication technology Proprietary wired communication technology. Fiber combines the reliability of wires with the freedom of radio connection.
Key features:
  • Two-way communication.
  • Advanced anti-sabotage.
  • Instant notifications.
  • Remote configuration via the Ajax apps.
Line connection 4-core cable
Fiber line length up to 2,000 meters
up to 6,500 ft
When using the U/UTP cat.5 twisted pair.
Encrypted communication
Detection
Sensitive element 1 × PIR sensor
Motion detection distance up to 12 meters*
When installed at 2.4 meters height.
up to 39 ft
When installed at 7.9 ft height.
* — 10 m according to INCERT (with high sensitivity level)
Motion detection angles horizontal — 88.5°
Motion detection speed from 0.3 to 2.0 m/s
from 1 to 6.6 ft/s
The direction of the detector lens should be perpendicular to the intended path of entry into the room
Sensitivity 3 levels
Sensitivity can be adjusted by PRO or user with admin rights in an Ajax app.
Pet immunity up to 20 kg
up to 50 cm height
up to 44 lb
up to 1.6 ft height
False alarm prevention SmartDetect
Software algorithm
Temperature compensation Effective motion detection within −10°C to +40°C range
Effective motion detection within 14°F to 104°F range
Recommendations It is recommended to install the detector on 2.4 meter/7.9 ft height. Device is designed for indoor use only.
Sabotage protection
Tamper alarm Alerts of attempts to detach the detector from the surface or remove the mounting panel.
Protection against forgery devices authentication
Power Supply
Fiber line power supply 5−30 V⎓, up to 25 mW
The detector is powered by the control panel.
Type 5−30 V⎓, up to 23 mW
The detector is powered by the control panel.
Device's nominal operating voltage 24 V⎓
Quiescent device's current consumption at nominal voltage 74 mA
Maximum device's current consumption at nominal voltage 1.8 mA
Enclosure
Color White
Dimension 110 × 65 × 50 mm
4.33″ × 2.56″ × 1.97″
Weight 75 g
2.65 oz
Operating temperature range from −10 °C to +40 °C
from 14 °F to 104 °F
Operating humidity up to 75%
Casing protection class IP30, IK04
Complete set Superior MotionProtect Fiber
SmartBracket mounting panel
Installation kit
Quick start guide
Warranty 24 months
