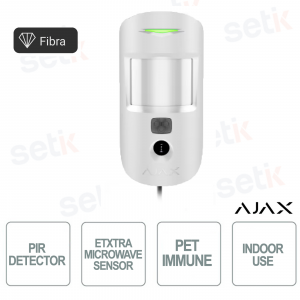

Ajax Superior MotionCam (PhOD) Fiber optic indoor wired motion detector with extra microwave sensor

Ajax Superior MotionCam (PhOD) Fiber optic indoor wired motion detector with extra microwave sensor

ANUNCIOS

AJAX FIBER | 143612.169.WH1 #143612 (ex. 53771.169.WH1) - Ajax Superior MotionCam (PhOD) Fiber Wired PIR motion detector with PIR sensor. Motion detection distance 12 meters. Fiber connection up to 2000 m. Pet Immune, Anti-Tampering, Smart Detect . Remote configuration and management . Temperature compensation. IP50 protection.

AJAX FIBER SERIES | FOR CERTIFIED PROFESSIONALS ONLY:

The following products are part of a special line intended for professional projects .
To purchase and install these products, you must be certified or enrolled in a certification course . Find out more.

referencia : 143612.169.WH1

brand : Ajax Systems

EAN: 4823114079184

Disponibilità: 48

Manufacturer Object ( [id] => 31 [name] => Ajax Systems [description] =>

Establecido en 2011, Ajax Systemconstruye sistemas inalámbricos de incendio y alarma con la tecnología inalámbrica JEWELLER que le permite monitorear de manera segura todos los dispositivos de red conectados. Ajax System ofrece soluciones para el hogar, la oficina o las actividades comerciales, gestionables a través de la App, siempre actualizadas y compatibles con los sistemas iOS y Android. Los sistemas de alarma de Ajax System son fáciles de instalar, de hecho sólo toma 15 segundos conectar la unidad de control a los sensores. Además, pueden integrarse con las cámaras de vigilancia, tienen un margen de error casi nulo y, en caso de peligro, en menos de 150 milisegundos envían una notificación (sms, push o call).

[short_description] =>

Ajax SystemsAjax Systems


Los sistemas de alarma Ajax system utilizan la última tecnología inalámbrica que hace que todos los productos sean fiables y estén siempre conectados. Además de su excelente rendimiento, los sistemas de alarma Ajax se distinguen por su diseño moderno y elegante.

[id_address] => [date_add] => 2019-01-15 15:51:16 [date_upd] => 2025-06-11 12:47:32 [link_rewrite] => ajax-systems [meta_title] => Sistemas de incendio y alarma de última generación - Ajax System [meta_keywords] => sistemi allarme ajax,sicurezza ajax,allarmi ajax,ajax security system,ajax security,ajax system [meta_description] => I sistemi allarme Ajax system sono dispositivi wireless affidabili e innovativi, non producono falsi allarmi e si installano in 15 secondi. Scoprili su Setik.biz! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR


CARTEL GRATUITO DE TVCC×


Con todos >> KITS AJAX

LIQUIDACION TOTAL ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

Prodotto PRO

AJAX FIBER SERIES | FOR CERTIFIED PROFESSIONALS ONLY:
The following products are part of a special line intended for professional projects .
To purchase and install these products, you must be certified or enrolled in a certification course . Find out more.

rilevatore ajax motioncam phod fibra

Prodotto Ajax

143612.169.WH1 | AJAX SUPERIOR MOTIONCAM (PHOD) FIBER - PIR DETECTOR WITH DETECTION ANGLE SENSOR - DETECTION SPEED - PET IMMUNE






AJAX SUPERIOR MOTIONCAM (PHOD) FIBER | DUAL-TECHNOLOGY WIRED PIR DETECTOR

GRADE 2 EN 50131 | PD 6662 2017 | SSF

143612.169.WH1 #143612 (ex. 53771.169.WH1) - Ajax Superior MotionCam (PhOD) Fibr a is a wired motion detector with an additional K-band microwave sensor. It detects motion at a distance of up to 12 meters, with a motion detection speed of 0.3 to 2.0 m/s. Together with the infrared sensor, it uses radio frequency scanning that filters out thermal interference. Ignores animals up to 50 cm tall and weighing up to 20 kg. For indoor installation.

|| COMPATIBLE EXCLUSIVELY WITH:
  • HYBRID 2G HUB ( White / Black )
  • 4G HYBRID HUB (White / Black)

143612.169.WH1 | Ajax Superior MotionCam (PhOD) Fiber - Wired Dual Technology Motion Detector


Main features:

- Wired motion detector with dual technology, K-band microwave to filter thermal interference

- Device capable of detecting, through PIR and MW technology, any intrusion attempt.

- Analyzes movement with 12m coverage

- Pet Immunity : Ignores the movement of small pets (up to 20kg / height 50cm)

- Ignore drafts and air conditioners

- Sensitivity adjustable on 3 levels

- Connection with fiber line up to 2000 m

- IR backlight

- Images in series from 1 to 5 seconds

- Anti-counterfeiting, Anti-tampering, Smart Detect

- Connects to the Ajax Hub with a simple switch and with the help of QR codes

- Can work with a third-party security system via Ajax integration modules (uartBridge and ocBridge/ocBridge Plus)

- Supply voltage 7−30 V⎓, up to 120 mW

- Suitable for indoor environments

- Encrypted communication

- Temperature compensation

- Grade 2 Certificate

- IP50 protection

- Operating temperature: from −10°C to +40°C

- Operating humidity: up to 75%

- Quick installation

- Color: White

- Dimensions: 135 × 70 × 66 mm

143612.169.WH1 | Ajax Superior MotionCam (PhOD) Fiber - Wired Dual Technology Motion Detector

Model: Alarm 143612.169.WH1
General settings
Classification Optical-electronic wired security detector
Color

White

Installation method Indoors
Type of detector

Wired

Limitations
Compatibility Hybrid Hub (2G)
Hybrid Hub (4G)
Communication
Fiber protocol Transmission of events and alarms

Alarm delivery time: 0.15 s

Recommended cable type for detector connection

Signal cable (4×0.22 copper)

Twisted pair U/UTP cat.5 (4×2×0.51)

Connection wire length Up to 2000
Polling interval

From 12 to 300 seconds (set by admin in the app)

Sensor parameters
Sensing element Passive IR sensor
Microwave sensor
Sensitivity

Adjustable, 3 levels

Motion detection distance Up to 12 meters
Detector angle

Horizontal — 88.5°
Vertical — 80°

Motion detection speed From 0.3 to 2.0 m/s
Pet immunity option

Yes.

The detector does not react to animals up to 50 cm tall and weighing up to 20 kg when properly installed and configured.

Anti-sabotage protection

Tampering alarm Yes
Protection against forgery

Yes

Power supply

Detector power supply 7−30 V
Current consumption up to 120 mW
Enclosure
Dimensions 135 × 70 × 66 mm
Weight 150 g
Operating temperature range From −10°C to +40°C
Operating humidity Up to 75%
Protection class IP50
Service life 10 years

143612.169.WH1 | Ajax Superior MotionCam (PhOD) Fiber - Wired Dual Technology Motion Detector


PIR + Microwave

Microwave sensor verifies PIR sensor alarms





Pet immunity

Up to 20 kg / Up to 50 cm





Fiber

Connection with fiber line

up to 2000 M


Detection angle Vertical / Horizontal





SmartDetect

Software algorithm against false alarms


Remote configuration and management





Easy installation




Energy consumption

up to 120 mW


Temperature compensation

Effective detection in hot and cold temperatures





Two colors

Also available in white



143612.169.WH1 | Ajax Superior MotionCam (PhOD) Fiber - Wired Dual Technology Motion Detector

>>Download the brochure


Ajax Systems

WHO IS AJAX?

Founded in 2011, Ajax creates wireless alarm and fire systems with JEWELLER wireless technology, allowing you to securely monitor all connected network devices. Ajax offers solutions for the home, office, or commercial business, managed via an app that's always up-to-date and compatible with iOS and Android systems. Ajax devices are easy to install—it takes just 15 seconds to connect the control panel to the sensors. They can also be integrated with surveillance cameras, have a virtually zero error rate, and, in the event of danger, send a notification (text message, push notification, or call) in less than 150 milliseconds.

Ajax alarm systems use cutting-edge wireless technology, making all products reliable and always connected. In addition to excellent performance, Ajax systems stand out for their modern and elegant design.

WHY CHOOSE AJAX ALARMS?

Ajax is synonymous with quality and ease of use.
All Ajax products use the latest generation wireless technology and can be programmed directly from your smartphone or PC.

Thanks to the User and Pro applications , it is possible to have complete virtual control of the entire alarm system, 24 hours a day.

Here's the real difference compared to other competitors!


With just a few simple taps , you can:

- Arm/Disarm the alarm

- Get instant notifications

- Get detailed information about the device status

- Perform remote testing and configurations

- Automatic updates

Gestione dell'impianto d'allarme da remoto con APP USER E PRO di AjaxAjax Security System Applicazione Mobile

I sistemi ajax sono muniti di batterie?

ARE BATTERIES INCLUDED?

All alarm products in the Ajax range are already equipped with batteries!
Out of the box they are ready to use!
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
