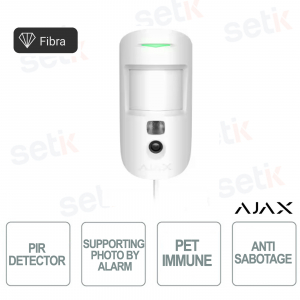

Ajax Superior MotionCam Fiber White – Wired PIR Motion Detector with Camera for Professional Alarm Verification

Ajax Superior MotionCam Fiber White – Wired PIR Motion Detector with Camera for Professional Alarm Verification

 
ANUNCIOS

AJAX FIBER | 44403.23.WH1 # 44403 | Ajax Superior MotionCam Fiber white is a wired PIR motion detector designed for professional security systems, ideal for indoor environments that require immediate visual verification of alarms. It integrates a camera with photographic verification of the event , capable of capturing up to 5 images per alarm even in low light conditions thanks to the integrated IR . It guarantees a detection range of up to 12 meters with an 88.5° angle , temperature compensation and immunity to pets up to 20 kg . Encrypted wired Fiber communication up to 2,000 meters ensures stability, anti-sabotage protection and continuous reliability, with quick installation and remote management via the Ajax app. Ajax

Technical Data Sheet

referencia : 44403.23.WH1

brand : Ajax Systems

EAN: 4823114039140

Manufacturer Object ( [id] => 31 [name] => Ajax Systems [description] =>

Establecido en 2011, Ajax Systemconstruye sistemas inalámbricos de incendio y alarma con la tecnología inalámbrica JEWELLER que le permite monitorear de manera segura todos los dispositivos de red conectados. Ajax System ofrece soluciones para el hogar, la oficina o las actividades comerciales, gestionables a través de la App, siempre actualizadas y compatibles con los sistemas iOS y Android. Los sistemas de alarma de Ajax System son fáciles de instalar, de hecho sólo toma 15 segundos conectar la unidad de control a los sensores. Además, pueden integrarse con las cámaras de vigilancia, tienen un margen de error casi nulo y, en caso de peligro, en menos de 150 milisegundos envían una notificación (sms, push o call).

[short_description] =>

Ajax SystemsAjax Systems


Los sistemas de alarma Ajax system utilizan la última tecnología inalámbrica que hace que todos los productos sean fiables y estén siempre conectados. Además de su excelente rendimiento, los sistemas de alarma Ajax se distinguen por su diseño moderno y elegante.

[id_address] => [date_add] => 2019-01-15 15:51:16 [date_upd] => 2025-06-11 12:47:32 [link_rewrite] => ajax-systems [meta_title] => Sistemas de incendio y alarma de última generación - Ajax System [meta_keywords] => sistemi allarme ajax,sicurezza ajax,allarmi ajax,ajax security system,ajax security,ajax system [meta_description] => I sistemi allarme Ajax system sono dispositivi wireless affidabili e innovativi, non producono falsi allarmi e si installano in 15 secondi. Scoprili su Setik.biz! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

CARTEL GRATUITO DE TVCC×

Con todos >> KITS AJAX

LIQUIDACION TOTAL ×

 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

44403.23.WH1 | WIRED IR MOTION DETECTOR WITH PHOTO VERIFICATION

Ajax

Ajax Superior MotionCam Fibra, 44403.23.WH1, white is a professional-grade wired PIR motion detector designed for advanced security systems that require reliability, accuracy, and immediate visual alarm verification. Thanks to its built-in camera, the device allows for clear event confirmation even in low light conditions, while Fibra technology ensures stable, encrypted, and continuous communication over long distances. Temperature compensation, a wide detection angle, and pet immunity make the sensor ideal for high-security residential and commercial environments, with quick installation and full management via the Ajax app.

Main specifications:

- Wired PIR motion detector with built-in camera

- Photographic verification of the alarm up to 5 images per event

- Detection range up to 12 meters with an 88.5° angle

- Infrared illumination for shooting in dark conditions

- Encrypted fiber communication technology up to 2,000 meters

- Pet immunity up to 20 kg

- Anti-sabotage protection and connection loss detection

Further details

✅ Fiber Communication :
Ajax Fibre technology ensures stable and secure two-way transmission up to 2,000 meters , with end-to-end encryption , continuous polling of device status and maximum reliability even in complex or professional installations.
✅ Detection :
The temperature-compensated PIR sensor ensures accurate detection up to 12 meters with a horizontal angle of 88.5° , maintaining constant performance even in the presence of temperature variations and guaranteeing immunity to pets up to 20 kg .
✅ Photo verification :
The built-in camera with infrared illumination allows immediate visual verification of the event , with up to 5 images per alarm and adjustable resolution, allowing a quick and reliable assessment of the real causes of the activation .
✅ Anti-sabotage protection:
The device features dual anti-opening and anti-tear tamper , device authentication and connection loss detection , offering complete protection against tampering attempts or forced deactivation.
✅ Power supply:
Ajax Superior MotionCam Fibra is powered directly from the Fibra line with 7–30 V voltage , ensuring continuous operation , optimized consumption and perfect integration with the wired infrastructure of the security system.
✅ Auxiliary power supply:
The presence of a built-in LTO AA auxiliary battery ensures operational continuity even in the event of a main power failure , increasing system reliability in critical scenarios.

Technical data sheet

44403.23.WH1
Communication
Fiber communication technology Proprietary wired communication technology. Fiber combines the reliability of wires with the freedom of radio connection.
Key features:
  • Two-way communication.
  • Advanced anti-sabotage.
  • Instant notifications.
  • Remote configuration via the Ajax apps.
Line connection 4-core cable
Fiber line length up to 2,000 meters
up to 6,500 ft
When using the U/UTP cat.5 twisted pair.
Encrypted communication
Detection
Sensitive element 1 × electret microphone
Motion detection distance up to 12 meters*
When installed at the height of 2.4 meters
* — 10 m according to INCERT (with high sensitivity level)
Motion detection angles horizontal — 88.5°
Motion detection speed from 0.3 to 2.0 m/s
The direction of the detector lens should be perpendicular to an alleged intrusion path into the room
Sensitivity 4 levels
Sensitivity can be adjusted by PRO or user with admin rights in an Ajax app.
Pet immunity up to 20 kg
up to 50 cm in height
False alarm prevention SmartDetect
Temperature compensation Effective motion detection within −10 °C to +40 °C range
Photo verification
Photo by alarm The built-in camera is activated if the detector is armed and motion is detected.
Adjustable photo resolution 640 × 480 px
320 × 240 px (default)
160 × 120 px
Adjusted by a PRO or user with admin rights in the Ajax app
IR illumination For night photography and low light conditions.
Series of pictures from 1 to 5 snapshots
Adjusted by a PRO or user with admin rights in an Ajax app
Photo delivery up to 7 s — 160 × 120 px resolution
up to 9 s — 320 × 240 px resolution
up to 20 s — 640 × 480 px resolution
Photo delivery time depends on the image resolution selected in the device settings
Recommendations It is recommended to install the detector at the height of 2.4 meters. The device is designed for indoor use only.
Sabotage protection
Tamper alarm 2 tamper buttons
Both are needed to fasten the left or right side of the detector's mounting panel. The system receives notifications about attempts to detach the device from the surface or remove it from the mounting panel.
Protection against forgery devices authentication
Main power supply
Detector's operating voltage range 7−30 V⎓, up to 367 mW
The detector is powered by the control panel.
Device's nominal operating voltage 24 V⎓
Quiescent device's current consumption at nominal voltage 0.569 mA
Maximum device's current consumption at nominal voltage 15.3 mA
Auxiliary power supply
Sealed battery LTO AA
It is used when the detector takes photos, activates an IR illumination, and transmits an alarm. The battery is charged from the Fiber line.
Device's nominal operating voltage 24 V⎓
The detector is powered by the sealed battery.
Quiescent device's current consumption at nominal voltage 0.001 µA
Maximum device's current consumption at nominal voltage 568.7 µA
Enclosure
Color White
Dimension 135 × 70 × 66 mm
Weight 160 g
Operating temperature range from −10 °C to +40 °C
from 14 °F to 104 °F
Operating humidity up to 75%
Casing protection class IP50, ik04
Complete set Superior MotionCam Fiber
SmartBracket mounting panel
Installation kit
Quick start guide
Warranty 24 months
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
