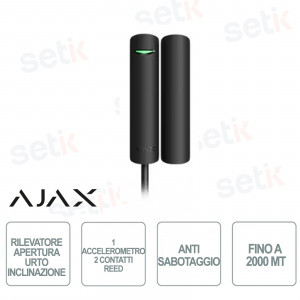

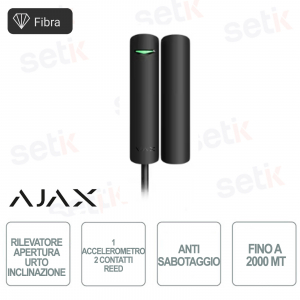

Ajax Superior DoorProtect Plus Fiber Black – Opening Sensor with Shock and Tilt

Ajax Superior DoorProtect Plus Fiber Black – Opening Sensor with Shock and Tilt

 
ANUNCIOS

AJAX FIBER | 44394.21.BL1 # 44394 | Ajax Superior DoorProtect Plus Fiber black is a professional wired sensor for doors and windows that combines advanced perimeter security and absolute reliability in Ajax systems. It integrates double reed switches for opening detection and an accelerometer with shock and tilt sensors , offering complete protection against intrusions, break-in attempts and vibrations. Communication takes place via encrypted two-way wired Fiber technology up to 2,000 meters , with constant monitoring of the device status. Designed for professional contexts, it features anti-sabotage protection with double tamper and quick configuration via the Ajax app, ensuring high performance and operational continuity. Ajax

Technical Data Sheet

referencia : 44394.21.BL1

brand : Ajax Systems

EAN: 4823114019975

Manufacturer Object ( [id] => 31 [name] => Ajax Systems [description] =>

Establecido en 2011, Ajax Systemconstruye sistemas inalámbricos de incendio y alarma con la tecnología inalámbrica JEWELLER que le permite monitorear de manera segura todos los dispositivos de red conectados. Ajax System ofrece soluciones para el hogar, la oficina o las actividades comerciales, gestionables a través de la App, siempre actualizadas y compatibles con los sistemas iOS y Android. Los sistemas de alarma de Ajax System son fáciles de instalar, de hecho sólo toma 15 segundos conectar la unidad de control a los sensores. Además, pueden integrarse con las cámaras de vigilancia, tienen un margen de error casi nulo y, en caso de peligro, en menos de 150 milisegundos envían una notificación (sms, push o call).

[short_description] =>

Ajax SystemsAjax Systems


Los sistemas de alarma Ajax system utilizan la última tecnología inalámbrica que hace que todos los productos sean fiables y estén siempre conectados. Además de su excelente rendimiento, los sistemas de alarma Ajax se distinguen por su diseño moderno y elegante.

[id_address] => [date_add] => 2019-01-15 15:51:16 [date_upd] => 2025-06-11 12:47:32 [link_rewrite] => ajax-systems [meta_title] => Sistemas de incendio y alarma de última generación - Ajax System [meta_keywords] => sistemi allarme ajax,sicurezza ajax,allarmi ajax,ajax security system,ajax security,ajax system [meta_description] => I sistemi allarme Ajax system sono dispositivi wireless affidabili e innovativi, non producono falsi allarmi e si installano in 15 secondi. Scoprili su Setik.biz! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

CARTEL GRATUITO DE TVCC×

Con todos >> KITS AJAX

LIQUIDACION TOTAL ×

 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

44394.21.BL1 | WIRED OPENING, SHOCK, AND TILT DETECTOR WITH TWO REED RELAYS AND ACCELEROMETER


Ajax

The Ajax Superior DoorProtect Plus Fibra, 44394.21.BL1, black , is a professional Ajax wired sensor designed for advanced door and window protection in residential and commercial settings. It combines opening detection with shock and tilt monitoring thanks to an integrated high-precision system, providing comprehensive perimeter security. Wired Fibra technology with encrypted two-way communication up to 2,000 meters ensures stability, continuous monitoring, and data protection. Designed for professional installations, it ensures tamper resistance, operational reliability, and quick setup via the Ajax app.

Main specifications:

- Double reed switch for reliable detection of door and window opening

- Impact and tilt sensors with integrated accelerometer adjustable via app

- Bidirectional encrypted wired fiber communication up to 2,000 m

- Anti-tamper protection with double tamper and connection loss detection

- Direct power supply from the fiber line for battery-free operational continuity

- Quick installation and configuration via Ajax app

Further details

✅ Fiber Communication :
The Superior DoorProtect Plus Fibre uses Ajax wired fibre technology with encrypted two-way communication and device authentication , ensuring stable and secure data transmission up to 2,000 metres , with constant real-time monitoring of the sensor status and maximum protection against spoofing attempts.
✅ Detection :
The advanced detection system combines dual reed switches for opening with a built-in accelerometer for shock, vibration and tilt , allowing for comprehensive perimeter control that can be adjusted via the Ajax app to suit different security scenarios.
✅ Anti-sabotage protection:
The device is equipped with double anti-tampering , short circuit protection and connection loss detection , ensuring high resistance to sabotage attempts and immediate notifications in case of anomalies.
✅ Power supply:
Power supply via a wired fiber line (5–30 V) ensures constant operational continuity , eliminating the need for batteries and making the sensor ideal for professional installations and permanent security systems .

Technical data sheet

44394.21.BL1
Communication
Fiber communication technology Proprietary wired communication technology. Fiber combines the reliability of wires with the freedom of radio connection.
Key features:
  • Two-way communication.
  • Advanced anti-sabotage.
  • Instant notifications.
  • Remote configuration via the Ajax apps.
Line connection 4-core cable
Fiber line length up to 2,000 meters
up to 6,500 ft
When using the U/UTP cat.5 twisted pair.
Encrypted communication
Detection
Sensitive element 1 × accelerometer
2 x reed switches
The magnet can be installed to the right or left side of the detector.
Additional detector connection Wired detector with the normally closed (NC) contact type
Shock sensor sensitivity 3 levels
Adjusted by PRO or user with admin rights in the Ajax app
The detection radius depends on the material type
  • Framed glass window — 1.2 m (high sensitivity level), 1 m (low sensitivity level).
  • Wooden plate — 1.2 m (high sensitivity level), 1 m (low sensitivity level).
  • Concrete plate — 0.75 m (high sensitivity level), 0.5 m (low sensitivity level).
The smoother and cleaner the detection surface is, the better the detection radius is
Option to ignore single shock Enabled by PRO or user with admin rights in the Ajax app
Tilt sensor activation threshold from 5° to 25°
Adjusted by PRO or user with admin rights in the Ajax app.
Recommendations Do not install the detector using both magnets at the same time. The detector recognizes only one magnet on one side of the detector - left or right. The device is designed for indoor use only.
Sabotage protection
Tamper alarm Alerts of attempts to detach the detector from the surface or remove the mounting panel.
Protection against forgery devices authentication
Power Supply
Fiber line power supply 5−30 V⎓, up to 23 mW
The detector is powered by the control panel.
Detector's operating voltage range 5−30 V⎓, up to 23 mW
The detector is powered by the control panel.
Device's nominal operating voltage 24 V⎓
Quiescent device's current consumption at nominal voltage 0.043 mA
Maximum device's current consumption at nominal voltage 1.55 mA
Enclosure
Color Black
Dimension 90.5 × 21 × 18.5 mm
3.56″ × 0.83″ × 0.73″
Weight 15 g
0.53 oz
Operating temperature range from −10 °C to +40 °C
from 14 °F to 104 °F
Operating humidity up to 75%
Casing protection class IP50, IK04
Complete set Superior DoorProtect Plus Fiber
Big magnet
Small magnet
Installation kit
Quick start guide
Warranty 24 months
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
