AJAX FIBER SERIES | FOR CERTIFIED PROFESSIONALS ONLY:
The following products are part of a special line intended for professional projects .
To purchase and install these products, you must be certified or enrolled in a certification course . Find out more.

rilevatore di movimento cablato + sensore a microonde ajax

Prodotto Ajax


143623.02.BL1 (ex. 44407.02.BL1) | SUPERIOR MOTIONPROTECT PLUS FIBER - PIR DETECTOR WITH ADDITIONAL MICROWAVE SENSOR - PET IMMUNE





SUPERIOR MOTIONPROTECT PLUS FIBER | DUAL-TECHNOLOGY WIRED PIR DETECTOR

GRADE 2 EN 50131 | PD 6662 2017 | SSF

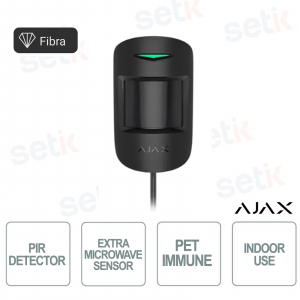

143623.02.BL1 #143623 (ex. 44407.02.BL1) Superior MotionProtect Plus Fiber Ajax is a wired motion detector with an additional K-band microwave sensor. It detects motion at a distance of up to 12 meters. Together with the infrared sensor, it applies a radio frequency scan that filters out thermal interference. Ignores animals up to 50 cm tall and weighing up to 20 kg. For indoor installation.

|| COMPATIBLE EXCLUSIVELY WITH:
  • HYBRID 2G HUB ( White / Black )
  • 4G HYBRID HUB (White / Black)

143623.02.BL1 (ex. 44407.02.BL1) | Superior MotionProtect Plus Fiber - Wired Dual Technology Motion Detector


Main features:

- Wired motion detector with dual technology, K-band microwave to filter thermal interference

- Device capable of detecting, through PIR and MW technology, any intrusion attempt.

- Analyzes movement with 12m coverage

- Pet Immunity : Ignores the movement of small pets (up to 20kg / height 50cm)

- Ignore drafts and air conditioners

- Sensitivity adjustable on 3 levels

- Connection with fiber line up to 2000 m

- Alarm signal LED

- Supervision every 12~300 seconds

- Anti-counterfeiting, Anti-tampering, Smart Detect

- Connects to the Ajax Hub with a simple switch and with the help of QR codes

- Can work with a third-party security system via Ajax integration modules (uartBridge and ocBridge/ocBridge Plus)

- Supply voltage 24V

- Suitable for indoor environments

- Encrypted communication

- Temperature compensation

- Grade 2 Certificate

- IP50 protection

- Operating temperature: from −10°C to +40°C

- Operating humidity: up to 75%

- Quick installation

- Color: Black

- Dimensions: 110 × 65 × 50 mm

143623.02.BL1 (ex. 44407.02.BL1) | Superior MotionProtect Plus Fiber - Wired Dual Technology Motion Detector

Model: Alarm 44407.02.BL1
General settings
Classification Optical-electronic wired security detector
Color

Black

Installation method Indoors
Type of detector

Wired

Limitations
Compatibility Hybrid Hub (2G)
Hybrid Hub (4G)
Communication
Fiber protocol Transmission of events and alarms

Alarm delivery time: 0.15 s

Recommended cable type for detector connection

Signal cable (4×0.22 copper)

Twisted pair U/UTP cat.5 (4×2×0.51)

Connection wire length Up to 2000
Polling interval

From 12 to 300 seconds (set by admin in the app)

Sensor parameters
Sensing element Passive IR sensor
Microwave sensor
Sensitivity

Adjustable, 3 levels

Motion detection distance Up to 12 meters
Detector angle

Horizontal — 88.5°
Vertical — 80°

Motion detection speed From 0.3 to 2.0 m/s
Pet immunity option

Yes.

The detector does not react to animals up to 50 cm tall and weighing up to 20 kg when properly installed and configured.

Anti-sabotage protection

Tampering alarm Yes
Protection against forgery

Yes

Power supply

Detector power supply 24 V?
Current consumption up to 50 µA
Enclosure
Dimensions 110 × 65 × 50 mm
Weight 96 g
Operating temperature range From −10°C to +40°C
Operating humidity Up to 75%
Protection class IP50
Service life 10 years

143623.02.BL1 (ex. 44407.02.BL1) | Superior MotionProtect Plus Fiber - Wired Dual Technology Motion Detector


PIR + Microwave

Microwave sensor verifies PIR sensor alarms





Pet immunity

Up to 20 kg / Up to 50 cm





Fiber

Connection with fiber line

up to 2000 M


Detection angle Vertical / Horizontal





SmartDetect

Software algorithm against false alarms


Remote configuration and management





Easy installation




Energy consumption

reaches 50 µA


Temperature compensation

Effective detection in hot and cold temperatures





Two colors

Also available in black



143623.02.BL1 (ex. 44407.02.BL1) | Superior MotionProtect Plus Fiber - Wired Dual Technology Motion Detector
