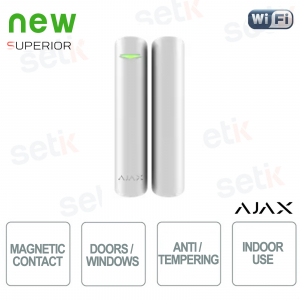

Ajax Superior DoorProtect Jeweller Wireless Magnetic Door/Window Contact 868MHz Jeweller with Two Reed Relays White
AJAX SUPERIOR | 133194.03.WH1 #133194 (formerly 67733.03.WH1) - Ajax Superior DoorProtect Jeweller (8PD) white Wireless 868MHz Jeweller opening detector. Two-way magnetic door/window contact, Grade 2 certified. Up to 1200 m transmission range (in open field), two reed relays for magnet installation on both sides, opening/closing detection indicator. Wired sensor input, anti-opening tamper, power supply: 1 CR123A 3.0V battery, indoor use, white color. >> Read our article!
AJAX SUPERIOR SERIES | FOR CERTIFIED PROFESSIONALS ONLY: The following products are part of a special line intended for professional projects.To purchase and install these products, you must be certified or enrolled in a certification course . Find out more. |
referencia : 133194.03.WH1
brand : Ajax Systems
EAN: 4823114075223
Disponibilità: 15

LIQUIDACION TOTAL ×
CLEARANCE SALE!
Take advantage of our must-see outing offers.
Discover the promo >>
AJAX SUPERIOR SERIES | FOR CERTIFIED PROFESSIONALS ONLY: |


133194.03.WH1 | AJAX SUPERIOR DOORPROTECT JEWELLER WHITE 868MHZ WIRELESS INDOOR DOOR/WINDOW OPENING DETECTOR
AJAX SUPERIOR DOORPROTECT JEWELLER | DOOR/WINDOW OPENING DETECTOR
GRADE 2 EN 50131 | PD 6662 2017 | UNCERTAIN | SSF (Soon)
133194.03.WH1 #133194 (ex 67733.03.WH1) - Ajax Superior DoorProtect Jeweller (8PD) white Wireless opening detector 868MHz Jeweller
|| COMPATIBLE WITH:
- HUB PLUS
- HUB 2 (2G)
- HUB 2 (4G)
- HUB 2 (PLUS)
- HYBRID HUB (2G)
- HYBRID HUB (4G)
133194.03.WH1 | Ajax Superior Doorprotect Jeweler - Door/window opening detector
Main features:
Ajax Superior
Magnetic door/window contact
Bidirectional
Grade 2 Certificate
Wireless 868 MHz Jeweler
Internal antenna range in open field 1200 m
Two reed relays: Allows the magnet to be installed on both sides of the device
Opening/closing detection indicator
Accepts wired sensor input
Anti-opening tamper
Power supply 1 CR123a 3.0 V Panasonic battery (lifespan approximately 7 years)
Internal use
Includes bracket with fixing screw
White color
133194.03.WH1 | Ajax Superior Doorprotect Jeweler - Door/window opening detector
Model: Alarm | 133194.03.WH1 |
Frequency |
868 MHz Jeweler |
Security grade |
Grade 2 |
Transmission Distance |
1200 m in open space |
Number of relays |
2, for installation on both sides |
LEDs | Alarm, Tamper, Signal |
Cover material | ABS plastic |
Battery | 1 battery CR123A 3.0 (7 years of battery life) |
Compatibility | Hub Plus, Hub 2 (2G and 4G), Hub 2 Plus, Hub Hybrid (2G and 4G), ReX and ReX 2 |
Bracket | SmartBracket with fixing screw |
Working Temperature | 0ºC ~ 50ºC |
Transmitter dimensions | 90 mm (Fo) x 20 (Ø) mm |
Magnet dimensions | 90 mm (Fo) x 20 (Ø) mm |
Color | White |
133194.03.WH1 | Ajax Superior Doorprotect Jeweler - Door/window opening detector
|
Transmission distance between the detector and the central unit (or repeater) in open field. up to 1200 M |
Useful for connecting a third-party NC detector |
The detector ignores vibrations lasting up to 0.15 s |
reaches 20 mW
Automatic power control to reduce power consumption and noise interference. |
Via AJAX APP |
Also available in white |
Included in the package Superior DoorProtect Jeweler SmartBracket mounting panel with fixing screw CR123A battery (pre-installed) Large magnet Small magnet External detector connection input Installation kit Quick Guide |
133194.03.WH1 | Ajax Superior Doorprotect Jeweler - Door/window opening detector
Brochure not available
WHO IS AJAX?
Founded in 2011, Ajax creates wireless alarm and fire systems with JEWELER wireless technology, allowing you to securely monitor all connected network devices. Ajax offers solutions for the home, office, or commercial business, managed via an app that's always up-to-date and compatible with iOS and Android systems. Ajax devices are easy to install—it takes just 15 seconds to connect the control panel to the sensors. They can also be integrated with surveillance cameras, have a virtually zero error rate, and, in the event of danger, send a notification (text message, push notification, or call) in less than 150 milliseconds.
Ajax alarm systems use cutting-edge wireless technology, making all products reliable and always connected. In addition to excellent performance, Ajax systems stand out for their modern and elegant design.
ARE BATTERIES INCLUDED? All alarm products in the Ajax range are already equipped with batteries!
Out of the box they are ready to use! |
