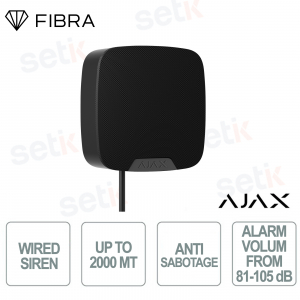

143559.11.BL1 - Ajax Superior HomeSiren Fiber Wired Indoor Siren Black 105 dB with LED and Tamper Protection

143559.11.BL1 - Ajax Superior HomeSiren Fiber Wired Indoor Siren Black 105 dB with LED and Tamper Protection

 
ANUNCIOS

143559.11.BL1 #143559 (ex. 44398.11.BL1) | The Ajax Superior HomeSiren Fibra , black , is a wired indoor siren for Ajax alarm systems, designed to ensure effective acoustic and visual signaling thanks to sound and LED alerts . It uses Fibra communication technology with encrypted transmission and a range of up to 2,000 meters , ensuring a stable and secure connection. It has an adjustable volume from 81 to 105 dB, configurable alarm duration from 3 seconds to 3 minutes and a Chime function for signaling door openings. It integrates tamper protection , anti-spoofing system and short circuit protection. Thanks to the IP50 protection degree , installation with a SmartBracket panel and remote management via the Ajax app , it represents a reliable solution for the security of residential and commercial indoor environments. Ajax

Technical Data Sheet

referencia : 143559.11.BL1

brand : Ajax Systems

EAN: 4823114078644

Manufacturer Object ( [id] => 31 [name] => Ajax Systems [description] =>

Establecido en 2011, Ajax Systemconstruye sistemas inalámbricos de incendio y alarma con la tecnología inalámbrica JEWELLER que le permite monitorear de manera segura todos los dispositivos de red conectados. Ajax System ofrece soluciones para el hogar, la oficina o las actividades comerciales, gestionables a través de la App, siempre actualizadas y compatibles con los sistemas iOS y Android. Los sistemas de alarma de Ajax System son fáciles de instalar, de hecho sólo toma 15 segundos conectar la unidad de control a los sensores. Además, pueden integrarse con las cámaras de vigilancia, tienen un margen de error casi nulo y, en caso de peligro, en menos de 150 milisegundos envían una notificación (sms, push o call).

[short_description] =>

Ajax SystemsAjax Systems


Los sistemas de alarma Ajax system utilizan la última tecnología inalámbrica que hace que todos los productos sean fiables y estén siempre conectados. Además de su excelente rendimiento, los sistemas de alarma Ajax se distinguen por su diseño moderno y elegante.

[id_address] => [date_add] => 2019-01-15 15:51:16 [date_upd] => 2026-03-03 17:54:49 [link_rewrite] => ajax-systems [meta_title] => Sistemas de incendio y alarma de última generación - Ajax System [meta_keywords] => sistemi allarme ajax,sicurezza ajax,allarmi ajax,ajax security system,ajax security,ajax system [meta_description] => I sistemi allarme Ajax system sono dispositivi wireless affidabili e innovativi, non producono falsi allarmi e si installano in 15 secondi. Scoprili su Setik.biz! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

143559.11.BL1 (ex. 44398.11.BL1) | WIRED SIREN WITH LED CONNECTOR


Ajax

The Ajax Superior HomeSiren Fibra 143559.11.BL1 #143559 (ex. 44398.11.BL1) , Black color, is a wired indoor siren for Ajax alarm systems, designed to ensure reliable acoustic and visual signaling. It uses Fibra technology with encrypted communication and a range of up to 2,000 meters , ensuring stable and secure transmission. It offers adjustable volume from 81 to 105 dB, alarm duration from 3 seconds to 3 minutes and a Chime function to signal the opening of doors. It integrates Tamper protection , anti-spoofing authentication and protection against short circuits. Equipped with an IP50 protection degree , it supports installation via SmartBracket and remote configuration via the Ajax app , making it ideal for the security of residential and commercial environments.

Main specifications:

  • Type: Black wired indoor siren
  • Technology: Fiber with encrypted transmission
  • Range: Up to 2,000 m
  • Volume: Adjustable from 81 to 105 dB
  • Alarm duration: 3 seconds to 3 minutes
  • Signals: Acoustic and LED
  • Chime Function: Door Opening Alert
  • Protection: Tamper and IP50
  • Installation: SmartBracket Support
  • Management: Remote configuration via Ajax app

Further details

✅ Fiber Communication:
The Ajax Superior HomeSiren Fibra wired indoor siren uses Fibra communication technology to ensure stable and secure transmission with the Ajax control panel, thanks to data encryption , periodic monitoring of the device status and authentication against tampering attempts.
✅ Range :
Fiber technology ensures a wired communication range of up to 2,000 meters using a U/UTP Cat.5 4×2×0.51 mm (24 AWG) cable, allowing the siren to be installed even at a considerable distance from the alarm control panel.
✅ Volume :
The siren has an adjustable sound power from 81 to 105 dB , measured at a distance of 1 meter, with an acoustic frequency of 3.4 ± 0.5 kHz , allowing you to customize the intensity of sound warnings and alarms directly via the Ajax app .
✅ Alarm duration :
The duration of the acoustic signal is configurable from 3 seconds to 3 minutes , allowing you to adapt the siren activation time to the needs of the intrusion system through the settings available in the Ajax apps .
✅ Chime Function :
 The Chime function allows the siren to emit an audible signal when the doors are opened , when the opening detectors are activated with the security system disarmed, providing a practical audible warning for access control.
✅ Protection :
 The siren integrates a tamper protection system that detects attempts to remove it from the installation surface or disassemble it, as well as short circuit protection and anti-spoofing authentication . The device also has an IP50 protection rating and complies with the EN 50131 Grade 3 regulation, guaranteeing high safety standards for professional intrusion detection systems.

Technical data sheet

143559.11.BL1
Communication
Fiber communication technology Proprietary wired communication technology. Fiber combines the reliability of wires with the freedom of radio connection.
It features
  • Two-way communication.
  • Advanced anti-sabotage.
  • Instant notifications.
  • Remote configuration via the Ajax apps.
Line connection 4-core cable
Fiber line length

up to 2,000 m/up to 6,500 ft
When using the U/UTP cat.5 twisted pair.
Key features
Alarm type acoustic and LED
Buzzer and LED.
Alarm volume from 81 to 105 dB at a distance of 1 m/3.3ft
Adjusted by PRO or user with admin rights in the Ajax app.
Alarm duration from 3 s to 3 min
Adjusted by a PRO or user with admin rights in the Ajax app.
Siren sound frequency 3.4 ± 0.5 kHz
Additional LED connection 3 V
An external LED works in parallel with the LED built into the siren and fully replicates its indication.
Chime The siren makes a special sound to notify that the opening detectors are triggered when the system is disarmed.
Events indication
  • Alerts.
  • Entry/exit delays.
  • Security mode.
  • Security mode changing.
  • After-alarm indication.
Recommendations The siren is designed for indoor use only. Recommended installation height is 2.5 m and higher.
Sabotage protection
Tampering alarm Alerts of attempts to detach the siren from the surface or remove the mounting panel.
Protection against forgery Device authentication
Power Supply
Fiber line power supply 5−30 V⎓, up to 390 mW
The siren is powered by the control panel.
Siren's operating voltage range 7−27 V⎓
Superior HomeSiren Fibra doesn't have any battery, the device has only a remote power source from the control panel.
Siren's start voltage range 16−18.5 V⎓
The voltage range needed to turn on the siren, when the voltage on the Fiber line rises.
Siren's nominal operating voltage 24 V⎓
Maximum siren's current consumption at nominal voltage 70 mA
Quiescent siren's current consumption at nominal voltage 66 µA
Peak siren's current consumption at nominal voltage 65 µA
When the siren sounds at the default volume level. Regardless of the arming mode
Enclosure
Dimensions 91 × 91 × 33 mm
92 × 92 × 37 mm
3.58″ × 3.58″ × 1.30″
Weight of the white device

108 g
138 g
3.81 oz
Operating temperature range

from −10°C to +40°C
Operating temperature range

from 14°F to 104°F
Operating humidity

up to 75%
Protection class

IP50, IK06
IP30 tested by CNPP according to NFa2P
Colors Black
Complete set Superior HomeSiren Fiber
SmartBracket mounting panel
Installation kit
Quick start guide
Warranty 24 months
