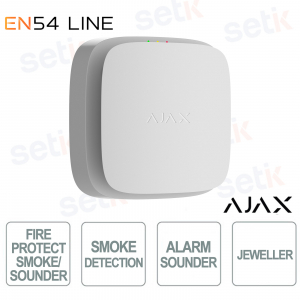

Ajax EN54 FireProtect (Smoke/Sounder) Jeweller White – Wireless Smoke Detector and Built-in Siren

Ajax EN54 FireProtect (Smoke/Sounder) Jeweller White – Wireless Smoke Detector and Built-in Siren

 
nuevo

119919.276.WH1 # 119919 | Ajax EN54 FireProtect (Smoke/Sounder) Jeweller is a white detector that combines a dual-spectrum optical sensor and a built-in acoustic signaler to detect smoke quickly and accurately. Resistant to dust, insects, and steam, it ensures reliability even in harsh environments. It offers radio communication up to 1,700 m, a battery life of up to 5 years, and easy installation with SmartBracket, ideal for advanced protection without wiring.

Technical Data Sheet

referencia : 119919.276.WH1

brand : Ajax Systems

EAN: 4823114069246

Manufacturer Object ( [id] => 31 [name] => Ajax Systems [description] =>

Establecido en 2011, Ajax Systemconstruye sistemas inalámbricos de incendio y alarma con la tecnología inalámbrica JEWELLER que le permite monitorear de manera segura todos los dispositivos de red conectados. Ajax System ofrece soluciones para el hogar, la oficina o las actividades comerciales, gestionables a través de la App, siempre actualizadas y compatibles con los sistemas iOS y Android. Los sistemas de alarma de Ajax System son fáciles de instalar, de hecho sólo toma 15 segundos conectar la unidad de control a los sensores. Además, pueden integrarse con las cámaras de vigilancia, tienen un margen de error casi nulo y, en caso de peligro, en menos de 150 milisegundos envían una notificación (sms, push o call).

[short_description] =>

Ajax SystemsAjax Systems


Los sistemas de alarma Ajax system utilizan la última tecnología inalámbrica que hace que todos los productos sean fiables y estén siempre conectados. Además de su excelente rendimiento, los sistemas de alarma Ajax se distinguen por su diseño moderno y elegante.

[id_address] => [date_add] => 2019-01-15 15:51:16 [date_upd] => 2025-06-11 12:47:32 [link_rewrite] => ajax-systems [meta_title] => Sistemas de incendio y alarma de última generación - Ajax System [meta_keywords] => sistemi allarme ajax,sicurezza ajax,allarmi ajax,ajax security system,ajax security,ajax system [meta_description] => I sistemi allarme Ajax system sono dispositivi wireless affidabili e innovativi, non producono falsi allarmi e si installano in 15 secondi. Scoprili su Setik.biz! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

LIQUIDACION TOTAL ×

 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

119919.276.WH1 | WIRELESS SMOKE DETECTOR WITH AUDIBLE SIGNALING DEVICE


Ajax

The EN54-certified Ajax EN54 FireProtect (Smoke/Sounder) Jeweler, 119919.276.WH1 , offers advanced fire protection thanks to a dual-spectrum optical sensor and built-in siren. It guarantees long battery life, quick, wire-free installation, and wireless communication up to 1,700 m, making it ideal for residential and professional environments.

Main specifications:

- Dual-spectrum optical sensor with anti-false alarm algorithm

- Built-in 85 dB siren with 32 selectable tones

- Battery life up to 5 years with CR123A batteries

- Screwless installation with SmartBracket

- Radio coverage up to 1,700 meters in open field

- Compatible with Ajax app for remote management

Further details

✅ Communication :
The system uses Jeweller technology for reliable radio communications up to 1,700 m in open terrain. Alarm signals are transmitted to the central intercom (CIE) within 3 seconds , ensuring a timely response. The detector can be connected to a repeater (sold separately) to extend coverage. The protocol automatically adjusts power and frequency and detects any connection loss, ensuring communication stability and security.
✅ Smoke Detection :
The detector features a dual-spectrum optical sensor that effectively distinguishes between real smoke and false alarms (such as steam or dust). The patented smoke chamber is protected from dust, insects, and contaminants, requiring no frequent maintenance, and improves accuracy. The HazeFlow 2 algorithm analyzes sensor data to distinguish between smoke and steam, adapting to different environmental conditions .
✅ Alarm announcement:
The device includes a built-in 85 dB siren with 32 selectable tones and a sound audible up to 1 meter away. Alarm synchronization between devices occurs automatically when connected to the same CIE. Notifications can be managed remotely via the Ajax app, with the ability to configure the behavior of the acoustic signal based on the type of event .
✅ Anti-sabotage protection:
 Thanks to the SmartBracket system , installation is simple yet secure: unauthorized removal of the device triggers an alert. The device also monitors battery and connection status. The pre-installed CR123A batteries provide up to 5 years of battery life and can be easily replaced without removing the case .
✅ EN54 Standard:
The FireProtect (Smoke/Sounder) Jeweller is EN54 certified , fully compliant with European directives:
  • EN 54-7: smoke detectors
  • EN 54-3: audible signalling devices
  • Directive 2014/53/EU (RED)
These certifications make it suitable for professional installations in residential, commercial and industrial settings, ensuring legal compliance and high safety standards.

Technical data sheet

119919.276.WH1
Capacity
Communication
Jeweler communication technology Proprietary wireless communication technology to transmit commands, alarms, and events.
Key features:
  • Two-way communication
  • Advanced sabotage protection
  • Block encryption featuring a dynamic key
  • Instant notifications
  • Remote control and configuration in Ajax apps
Frequency bands 866.0–866.5 MHz
868.0–868.6 MHz
868.7–869.2 MHz
905.0–926.5 MHz
915.85–926.5 MHz
921.0–922.0 MHz
Depends on the sales region.
Maximum effective radiated power (ERP) up to 20 mW
Automatic power control to reduce power consumption and radio interference.
Radio signal modulation GFSK
Radio communication range up to 1,700 m
up to 5,550 ft
Between the CIE and connected devices (in an open space). Maximum range depends on the connected device.
Encrypted communication All stored and transmitted data are protected by block encryption featuring a dynamic key.
Frequency hopping To prevent radio interference and jamming.
Smoke detection
Sensitive element dual-spectrum optical sensor
Detects smoke based on the size of particles in the air.
False alarm protection The device does not respond to water vapor.
Patented smoke chamber Protects the smoke sensor from dust, dirt, and insects.
Alarm annunciation
Alarm type acoustic
Sound volume up to 95 dB at a distance of 1 m 3.3 ft
Adjusted by a PRO or user with admin rights in an Ajax app.
Sound pattern 32 tones
Sound synchronization An audible alarm is automatically synchronized on all devices with a sounder connected to the same CIE.
Alarm annunciation test An audible alarm check to ensure the fire alarm is clearly audible on the premises.
Installation recommendations The device is designed for indoor use only.
The SmartBracket mounting panel allows the detector to be rotated up to 90° even after installation.
Tamper button Fault notification when an attempt is made to remove the device from the mounting panel.
Lock for SmartBracket to secure the device on the SmartBracket mounting panel
When locked, the lock secures the device and prevents it from being removed without a special tool.
Protection against spoofing device authentication
Connection loss detection after 36 s
Detection time depends on Jeweler settings
Power supply
Battery 2 × CR123A
Pre-installed
Tool-free battery replacement To replace the batteries, open the lids of the battery compartments.
Reverse polarity protection Prevents device damage if the batteries are put in incorrectly.
Recommended battery type Huiderui CR123A; 3V; 1,600 mAh, LiMnO₂
Calculated battery life up to 5 years
Enclosure
Dimensions 124 × 124 × 48 mm
4.87" × 4.87" × 1.90"
Weight 295 g
10.39 oz
Operating temperature range from 0 °C to +50 °C
from 32 °F to 122 °F
Operating humidity up to 80%
Protection class IP21C
Flammability rating UL 94 V-0
Color White
Complete set EN54 FireProtect (Smoke/Sounder) Jeweller
SmartBracket mounting panel
2 × CR123A battery (pre-installed)
Quick start guide
Warranty 24 months
