118605.277.WH1 | WIRELESS VISUAL FIRE ALARM DEVICE (VAD)


Ajax

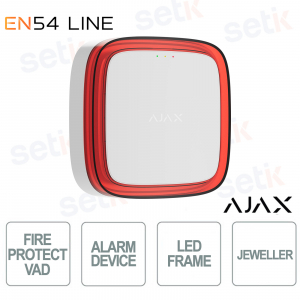

The Ajax FireProtect device (VAD) Jeweller, 118605.277.WH1 , It is an EN54-23 certified wireless visual alarm, designed to provide powerful and effective fire warning. Available in white, it ensures optimal visual coverage thanks to the high-intensity LED frame and is easily installed on walls or ceilings. With radio communication up to 1,700 m, pre-installed CR123A batteries and a battery life of up to 5 years, it is the ideal solution for public and professional environments .

Main specifications:

- Visual LED alarm with 0.5 Hz frequency and synchronization

- Stable Jeweler communication up to 1,700 m

- Easy installation with SmartBracket

- Powered by pre-installed CR123A batteries (5-year battery life)

- Long-lasting battery (up to 5 years) without tools

- Complies with EN 54-23 and Directive 2014/53/EU (RED)

Further details

✅ Communication :
The Ajax VAD device uses the Jeweller radio protocol , which enables reliable wireless communication up to 1,700 m in open areas . The signal is transmitted to the control panel within 3 seconds of the alarm being triggered. Intelligent radio technology automatically adjusts power and frequency, detecting any connection losses, to ensure maximum operational stability in any conditions .
✅ Alarm announcement :
The VAD (Visual Alarm Device) generates a high-intensity LED visual signal, visible even in large or crowded environments. It flashes at a frequency of 0.5 Hz , with a cycle duration of 2,000 ms, and is designed according to EN54-23 standards for optimal emergency signaling. The lighting automatically synchronizes with other VAD devices and sounders connected to the same control panel.
✅ Anti-sabotage protection :
The device features a SmartBracket mount that allows for installation without removing the case. An optional lock is available to prevent unauthorized removal. Additionally, the battery (4 x CR123A) can be replaced without tools, simplifying maintenance and reducing the risk of tampering in the field.
✅ EN54 Standard:
The Ajax VAD fully complies with the EN 54-23 and EN 54-25 standards , which regulate visual fire alarm devices and radio transmission for fire alarm systems, respectively. It is also certified according to the European Directive 2014/53/EU (RED) , making it suitable for certified installations in industrial, tertiary, and public sectors.

Technical data sheet

118605.277.WH1
Capacity
Communication
Jeweler communication technology Proprietary wireless communication technology to transmit commands, alarms, and events.
Key features:
  • Two-way communication
  • Advanced sabotage protection
  • Block encryption featuring a dynamic key
  • Instant notifications
  • Remote control and configuration in Ajax apps
Frequency bands 866.0–866.5 MHz
868.0–868.6 MHz
868.7–869.2 MHz
905.0–926.5 MHz
915.85–926.5 MHz
921.0–922.0 MHz
Depends on the sales region.
Maximum effective radiated power (ERP) up to 20 mW
Automatic power control to reduce power consumption and radio interference.
Radio signal modulation GFSK
Radio communication range up to 1,700 m
up to 5,550 ft
Between the CIE and connected devices (in an open space). Maximum range depends on the connected device.
Encrypted communication All stored and transmitted data are protected by block encryption featuring a dynamic key.
Frequency hopping To prevent radio interference and jamming.
Alarm annunciation
Alarm type light
LED frame.
Flash frequency 90 ms ON / 1,910 ms OFF (cycle duration: 2,000 ms; frequency: 0.5 Hz)
Alarm annunciation test To check the visual alarm signal to ensure fire alarm signals are visible in the premises
Installation recommendations The device's recommended installation height is up to 3 m on the ceiling and up to 2.4 m on the wall.
The device's recommended installation height is up to 9.8 ft on the ceiling and up to 7.8 ft on the wall
The device is designed for outdoor and indoor use
Sabotage protection
Tamper button Fault notification when an attempt is made to remove the device from the mounting panel.
Lock for SmartBracket to secure the device on the SmartBracket mounting panel
When locked, the lock secures the device and prevents it from being removed without a special tool.
Protection against spoofing device authentication
Connection loss detection after 36 s
Detection time depends on Jeweler settings
Power supply
Battery 4 × CR123A
Pre-installed
Tool-free battery replacement To replace the batteries, open the lids of the battery compartments.
Reverse polarity protection Prevents device damage if the batteries are put in incorrectly.
Recommended battery type Huiderui CR123A; 3V; 1,600 mAh, LiMnO₂
Calculated battery life up to 5 years
Enclosure
Dimensions 145 × 145 × 51 mm
5.71" × 5.71" × 2.00"
Weight 509 g
1,122 lb
Operating temperature range from -10 °C to +50 °C
from 14 °F to 122 °F
Operating humidity up to 80%
Protection class IP54
Flammability rating UL 94 V-0
Color White
Complete set EN54 FireProtect (VAD) Jeweller
SmartBracket mounting panel
4 × CR123A battery (pre-installed)
Quick start guide
Revision 1
Warranty 24 months
