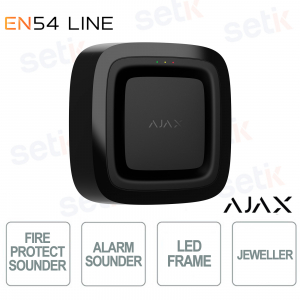

118603.278.BL1 # 118603 | Ajax EN54 FireProtect (Sounder) Jeweller , in black, is a wireless sounder certified to EN 54-3 and EN 54-25, ideal for fire protection in residential and professional environments. Equipped with a 100 dB siren with 32 selectable tones, it guarantees effective and immediate audible alarms. Jeweller radio communication ensures a stable connection up to 1,700 m from the control panel, with activation within 3 seconds. Easy to install thanks to the SmartBracket mount, it operates with 4 pre-installed CR123A batteries that provide up to 5 years of battery life. Management and testing are done via the Ajax app, without the need for tools or disassembly.
LIQUIDACION TOTAL ×
CLEARANCE SALE!
Take advantage of our must-see outing offers.
Discover the promo >>
118603.278.BL1 | WIRELESS ACOUSTIC SIGNALING DEVICE

The Ajax FireProtect (Sounder) Jeweler device, 118603.278.BL1 , Available in black, it combines audible and visual signaling in a single wireless fire safety solution. With radio communication up to 1,700 m, quick installation via SmartBracket, and a battery life of up to 5 years, it ensures timely alarms thanks to a 100 dB siren and high-intensity LED frame. Certified according to EN 54-3, EN 54-23, and EN 54-25, it is ideal for professional installations and high-security environments.
Main specifications:
- 100 dB siren with 32 selectable tones
- Visual LED compliant with EN 54-23 with synchronized flashing
- Stable Jeweller radio communication up to 1,700 m
- Quick installation and maintenance without tools
- 4 CR123A batteries pre-installed, battery life up to 5 years
- Certifications EN 54-3, EN 54-23, EN 54-25, Directive 2014/53/EU (RED)
Further details
Technical data sheet
118603.278.BL1 |
|
Capacity | |
Communication | |
Jeweler communication technology | Proprietary wireless communication technology to transmit commands, alarms, and events. Key features:
|
Frequency bands | 866.0–866.5 MHz 868.0–868.6 MHz 868.7–869.2 MHz 905.0–926.5 MHz 915.85–926.5 MHz 921.0–922.0 MHz Depends on the sales region. |
Maximum effective radiated power (ERP) | up to 20 mW Automatic power control to reduce power consumption and radio interference. |
Radio signal modulation | GFSK |
Radio communication range | up to 1,700 m up to 5,550 ft Between the device and control and indicating equipment (CIE) or a range extender in an open space. |
Encrypted communication | All stored and transmitted data are protected by block encryption featuring a dynamic key. |
Frequency hopping | To prevent radio interference and jamming. |
Key features | |
Alarm type | acoustic |
Sound volume | from 65 to XX dB at a distance of 1 m 3.3 ft Adjusted by a PRO or user with admin rights in an Ajax app. |
Sound pattern | 32 tones |
Sound synchronization | An audible alarm is automatically synchronized on all devices with a sounder connected to the same CIE |
Alarm annunciation test | An audible alarm check to ensure the fire alarm is clearly audible on the premises |
Installation recommendations | The device's recommended installation height is up to 3 m on the ceiling and up to 2.4 m on the wall. The device's recommended installation height is up to 9.8 ft on the ceiling and up to 7.8 ft on the wall The device is designed for outdoor and indoor use |
Sabotage protection | |
Tamper button | Fault notification when an attempt is made to remove the device from the mounting panel. |
Lock for SmartBracket | to secure the device on the SmartBracket mounting panel When locked, the lock secures the device and prevents it from being removed without a special tool. |
Protection against spoofing | device authentication |
Connection loss detection | after 36 s Detection time depends on Jeweler settings |
Power supply | |
Battery | 4 × CR123A Pre-installed |
Tool-free battery replacement | To replace the batteries, open the lids of the battery compartments. |
Reverse polarity protection | Prevents device damage if the batteries are put in incorrectly. |
Recommended battery type | Huiderui CR123A; 3V; 1,600 mAh, LiMnO₂ |
Calculated battery life | up to 5 years In standby mode. up to XX minutes In annunciation mode. |
Enclosure | |
Dimensions | 145 × 145 × 51 mm 5.71" × 5.71" × 2.00" |
Weight | 527 g 1,162 lb |
Operating temperature range | from -10 °C to +50 °C from 14 °F to 122 °F |
Operating humidity | up to 80% |
Protection class | IP54 |
Color | Black |
Complete set | EN54 FireProtect (Sounder/VAD) Jeweller SmartBracket mounting panel 4 × CR123A battery (pre-installed) Quick start guide |
Revision | 1 |
Warranty | 24 months |
