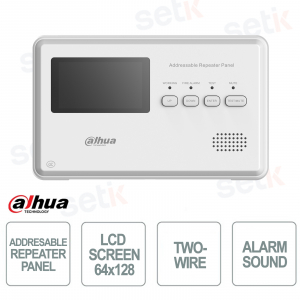

HY-1330 - The addressable repeater panel is a professional solution for fire systems, designed to display alarm information from the fire control panel in real time and facilitate rapid evacuation of rooms. Equipped with a 64×128 LCD display , it allows intuitive viewing of the alarmed areas and supports up to 999 alarm events . Thanks to the two-wire connection without polarity , stable communication with integrated microprocessor and ultra-low power consumption, it guarantees continuous reliability and efficiency. Compliant with the EN54-2 standard, it integrates optical and acoustic signals up to 115 dB , making it ideal for hotels, schools, offices, hospitals, factories and warehouses. Dahua

Technical Data Sheet

referencia : HY-1330

brand : Dahua

EAN: 6923172558350

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

La empresa asiática, fundada en 2001, debe su reputación a la excelente calidad de sus productos en términos de rendimiento y capacidad. La gama de productos de Dahua abarca desde los sistemas clásicos de CCTV hasta los sistemas de seguridad más complejos y articulados: no sólo la videovigilancia, sino también el control de acceso, los sistemas de videoportería, los productos de detección térmica y mucho más. La fiabilidad, la tecnología de punta y los precios competitivos que ofrece Dahua son sólo algunas de las razones por las que Setik siempre ha elegido distribuir la marca. Dahua es desde hace años un sólido punto de referencia en el mercado internacional de los circuitos cerrados de televisión, gracias a las enormes inversiones que cada año se dedican a la investigación y el desarrollo. Las cifras hablan por sí mismas: desde 2016 hasta hoy Dahua ha registrado más de 800 patentes con su propia marca. Actualmente Dahua puede presumir de estar entre los 10 primeros líderes mundiales en el mundo de la seguridad. Este año Dahua fue premiado con el 2º puesto en el ranking "2019 TOP SECURITY 50".

Los productos de la marca Dahua vendidos por Setik SRL pueden ser entregados como productos OEM, es decir, productos que a todos los efectos son productos originales de Dahua, pero que tienen una apariencia estética diferente reservada para el mercado en línea (generalmente en términos de logotipo y embalaje). Esto no afecta en modo alguno a la garantía y a las características técnicas del producto, que es siempre genuino de Dahua, ni a las actualizaciones y la funcionalidad.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. es uno de los principales proveedores mundiales de soluciones de videovigilancia, con más de 13.000 empleados y 35 filiales activas en todo el mundo.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2026-02-19 16:06:32 [link_rewrite] => dahua [meta_title] => Los mejores productos Dahua: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Productos Dahua para la videovigilancia digital IP, HYBRIDA, HD-SDI, HDCVI, como cámaras, grabadoras, control de acceso, accesorios y videointercomunicadores wifi. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

HY-1330 | REPEATER PANEL

Dahua

The Dahua HY-1330 addressable repeater panel is designed for professional fire systems and allows immediate display of alarm information from the fire control panel, improving emergency management and room evacuation. Equipped with a 64×128 LCD display , it supports up to 999 alarm events with clear indication of the affected areas. Communication occurs via a two-wire connection without polarity , ensuring simple installation and stable transmission thanks to the integrated microprocessor . Compliant with the EN54-2 standard, it integrates optical and acoustic signaling up to 115 dB , making it ideal for hotels, schools, hospitals, offices, factories and warehouses.

Main specifications:

- 64×128 LCD display for intuitive viewing of alarm areas and events

- Capacity of up to 999 alarm information for advanced emergency management

- Two-wire connection without polarity for quick and easy installation

- Built-in high-performance microprocessor for stable and reliable communication

- Acoustic signaling up to 115 dB for immediate notification in case of fire

- Dedicated LED status indicators for operation, alarm, self-test and mute

- EN54-2 standard certified for compliance with professional fire protection systems

- Ultra low power consumption with monitoring current ≤ 2 mA and efficient operation

Further details

✅ Display:
The Dahua repeater panel integrates a practical 64x128 LCD display designed to clearly and immediately display fire alarm information and the affected areas. The screen allows for intuitive event management, improving response speed and facilitating continuous monitoring of the fire alarm system.
✅ Capacity:
The system supports up to 999 alarm events , enabling advanced and detailed management of fire reports within residential, commercial, and industrial facilities. This high capacity ensures efficient monitoring even in complex, multi-area systems.
✅ Two-wire connection:
Thanks to the two-wire, non-polarity wiring, the panel ensures simple, fast, and flexible installation, reducing configuration time and costs. Stable communication via the integrated microprocessor improves the reliability of the fire alarm system even over distances of up to 1500 meters .

✅ Acoustic signal:
The device integrates a powerful alarm siren up to 115 dB , designed to ensure immediate and clearly audible audible notifications in the event of a fire. This allows for rapid evacuation of personnel and increases the level of safety in hotels, schools, offices, hospitals, and industrial environments.
✅ LED indicators:
The panel features dedicated status LEDs for operation, alarm, self-test, and mute. These indicators allow you to quickly identify the system's operating status, improving visual control and fire emergency management.

Technical data sheet

HY-1330
Electrical
Working Voltage DC24V
Current Monitoring current: ≤ 2mA
Maximum operating current: ≤ 10mA
Indicator Working: Green indicator flashes every 6 s during polling, flashes quickly during malfunction
Alarm: Red indicator remains lit during alarm
Self-test: Yellow indicator remains lit during self-testMute: Yellow indicator remains lit when Test/Mute Button is pressed
Display Capacity 999 pieces of alarm information
Display 64×128 LCD screen
Communication
Wiring Two-wire, polarity-free
Addressing Method Electrical encoder
Address Range 1–254
Communication Distance 1500 m (4921.26 ft)
Alarm Sound Pressure 65dB–115dB (A) @ 1m
Environment
Operating Temperature –10°C to +40°C (+14°F to +104°F)
Storage Temperature –20°C to +65°C (–4°F to +149°F)
Operating Humidity ≤ 95% RH (no condensation)
Construction
Color White
Dimensions (with base) 180.0 mm × 110.0 mm × 32.0 mm (7.09" × 4.33" × 1.26")
Weight (with base) 270 g (0.60 lb)
Compliance Standard EN54-2
