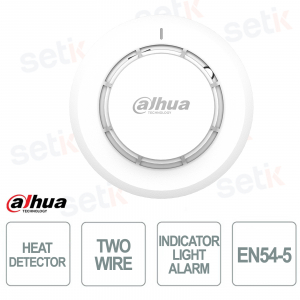

The HY-2311 addressable heat detector is designed for professional fire systems and offers precise detection thanks to its highly sensitive heat sensor, which can quickly detect abnormal temperature changes. Two-wire, non-polarity technology simplifies wiring and makes installation faster and more efficient. Equipped with addressable alarm identification , it allows for precise location of the detection point in the event of a fire, improving emergency management. The corrosion- and acid-resistant structure ensures long-lasting reliability, while EN54-5 certification ensures compliance with European standards for fire safety in residential, commercial, and industrial environments. Dahua

Technical Data Sheet

referencia : HY-2311

brand : Dahua

EAN: 6939554929649

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

La empresa asiática, fundada en 2001, debe su reputación a la excelente calidad de sus productos en términos de rendimiento y capacidad. La gama de productos de Dahua abarca desde los sistemas clásicos de CCTV hasta los sistemas de seguridad más complejos y articulados: no sólo la videovigilancia, sino también el control de acceso, los sistemas de videoportería, los productos de detección térmica y mucho más. La fiabilidad, la tecnología de punta y los precios competitivos que ofrece Dahua son sólo algunas de las razones por las que Setik siempre ha elegido distribuir la marca. Dahua es desde hace años un sólido punto de referencia en el mercado internacional de los circuitos cerrados de televisión, gracias a las enormes inversiones que cada año se dedican a la investigación y el desarrollo. Las cifras hablan por sí mismas: desde 2016 hasta hoy Dahua ha registrado más de 800 patentes con su propia marca. Actualmente Dahua puede presumir de estar entre los 10 primeros líderes mundiales en el mundo de la seguridad. Este año Dahua fue premiado con el 2º puesto en el ranking "2019 TOP SECURITY 50".

Los productos de la marca Dahua vendidos por Setik SRL pueden ser entregados como productos OEM, es decir, productos que a todos los efectos son productos originales de Dahua, pero que tienen una apariencia estética diferente reservada para el mercado en línea (generalmente en términos de logotipo y embalaje). Esto no afecta en modo alguno a la garantía y a las características técnicas del producto, que es siempre genuino de Dahua, ni a las actualizaciones y la funcionalidad.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. es uno de los principales proveedores mundiales de soluciones de videovigilancia, con más de 13.000 empleados y 35 filiales activas en todo el mundo.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2026-02-19 16:06:32 [link_rewrite] => dahua [meta_title] => Los mejores productos Dahua: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Productos Dahua para la videovigilancia digital IP, HYBRIDA, HD-SDI, HDCVI, como cámaras, grabadoras, control de acceso, accesorios y videointercomunicadores wifi. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

HY-2341 | TEMPERATURE SENSOR

Dahua

The Dahua HY-2311 addressable thermal detector offers an advanced fire detection system based on a highly sensitive thermal sensor, designed to quickly monitor abnormal temperature changes and trigger alarms accurately and reliably. Thanks to its polarity-free two-wire technology , it simplifies wiring and speeds up installation in professional fire protection systems. The intelligent addressing function allows for precise identification of the alarm point, improving emergency management. Compliant with the EN54-5 standard, it is ideal for hotels, offices, warehouses, archives and industrial facilities, ensuring resistance, stability and a long life over time.

Main specifications:

- Highly sensitive thermal detection to quickly detect abnormal temperature increases

- 2-wire, polarity-free technology for easy installation and quick wiring

- Addressable detector with precise alarm point identification

- Compatibility with addressable fire alarm control panels for professional integration

- EN54-5 compliant for safety certified to European standards

- Corrosion and acid resistant materials for greater reliability over time

- Ceiling mount ideal for residential, commercial and industrial environments

Further details

✅ 2-wire technology:
Non -polarity designed to simplify wiring and speed up installation of the heat detector, reducing connection errors and ensuring greater efficiency in professional fire systems.
✅ Temperature detection:
Highly sensitive, it features an advanced thermal element capable of monitoring rapid and anomalous temperature changes, promptly activating the alarm in the presence of the beginnings of a fire.
✅ Compatibility with fire alarm control panels:
Compatibility with addressable fire control panels allows for seamless integration with professional security systems, enabling precise identification of the alarm point for faster emergency management.
✅ EN54-5 compliant:
Certified to European fire safety standards, ensuring operational reliability, high detection performance, and maximum safety in residential, commercial, and industrial environments.

Technical data sheet

HY-2311
Technical Specification
Surveillance Area For installation heights below 4 m, the coverage area is 150 m²
For installation heights between 4 m and 12 m, the coverage area is 80 m²
Alarm Mode Indicator light alarm
Remote Indicator Support
Working Principle Heat detection
Sensor Class A2R
Fixed Detection Threshold 62°C ± 3°C (144°F ± 37.4°F)
Dynamic Detection 1 to 30 K min-1
Operating Voltage DC16-28V
Operating Current Static current: ≤250μA
Alarm current: ≤350μA
Operating Temperature –10°C to +50°C (14°F to 122°F)
Operating Humidity ≤ 95% RH (no condensation)
Dimensions (with base) Φ100mm × 46.3mm (Φ3.94" × 1.82")
Weight (with base) 102 g (0.22 lb)
Installation Ceiling Mount
Compliance Standard EN 54-5
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
