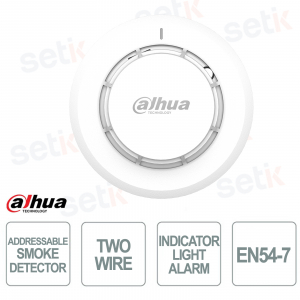

HY-2301-RE EN54-7 Addressable Smoke Detector with Relay and 2-Wire Technology - Dahua

HY-2301-RE EN54-7 Addressable Smoke Detector with Relay and 2-Wire Technology - Dahua

 
-56%

The HY-2301-RE addressable smoke detector is designed to ensure high accuracy in fire detection thanks to photoelectric technology with double emitter and single receiver , ideal for residential, commercial and industrial environments. The 2-wire, non-polarity technology simplifies wiring and speeds up installation, while the intelligent contamination compensation system automatically adjusts the alarm threshold, improving reliability and maintenance. Equipped with a built-in relay output and precise alarm point identification, it offers maximum operational safety. Compliance with the EN54-7 standard ensures high performance in professional fire protection systems. Dahua

Technical Data Sheet

referencia : HY-2301-RE

brand : Dahua

EAN: 6939554928512

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

La empresa asiática, fundada en 2001, debe su reputación a la excelente calidad de sus productos en términos de rendimiento y capacidad. La gama de productos de Dahua abarca desde los sistemas clásicos de CCTV hasta los sistemas de seguridad más complejos y articulados: no sólo la videovigilancia, sino también el control de acceso, los sistemas de videoportería, los productos de detección térmica y mucho más. La fiabilidad, la tecnología de punta y los precios competitivos que ofrece Dahua son sólo algunas de las razones por las que Setik siempre ha elegido distribuir la marca. Dahua es desde hace años un sólido punto de referencia en el mercado internacional de los circuitos cerrados de televisión, gracias a las enormes inversiones que cada año se dedican a la investigación y el desarrollo. Las cifras hablan por sí mismas: desde 2016 hasta hoy Dahua ha registrado más de 800 patentes con su propia marca. Actualmente Dahua puede presumir de estar entre los 10 primeros líderes mundiales en el mundo de la seguridad. Este año Dahua fue premiado con el 2º puesto en el ranking "2019 TOP SECURITY 50".

Los productos de la marca Dahua vendidos por Setik SRL pueden ser entregados como productos OEM, es decir, productos que a todos los efectos son productos originales de Dahua, pero que tienen una apariencia estética diferente reservada para el mercado en línea (generalmente en términos de logotipo y embalaje). Esto no afecta en modo alguno a la garantía y a las características técnicas del producto, que es siempre genuino de Dahua, ni a las actualizaciones y la funcionalidad.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. es uno de los principales proveedores mundiales de soluciones de videovigilancia, con más de 13.000 empleados y 35 filiales activas en todo el mundo.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2026-02-19 16:06:32 [link_rewrite] => dahua [meta_title] => Los mejores productos Dahua: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Productos Dahua para la videovigilancia digital IP, HYBRIDA, HD-SDI, HDCVI, como cámaras, grabadoras, control de acceso, accesorios y videointercomunicadores wifi. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

HY-2301-RE | ADDRESSABLE SMOKE DETECTOR

Dahua

The Dahua HY-2301-RE addressable smoke detector combines advanced technology and professional reliability for modern fire protection systems. Thanks to its photoelectric smoke detection with dual emitters and single receivers, it ensures accurate and rapid detection of early fires. Two-wire, polarity-free technology simplifies wiring and installation, while the intelligent contamination compensation algorithm automatically adjusts the alarm threshold for improved performance and maintenance. Equipped with a built-in relay output and precise alarm point identification, it is ideal for homes, hotels, offices, warehouses, and industrial environments. Complies with the EN54-7 standard for maximum fire safety.

Main specifications:

- Photoelectric smoke detection with high accuracy and rapid response to fires

- 2-wire technology without polarity for easy installation and quick wiring

- Intelligent contamination compensation to reduce false alarms and maintenance

- Addressable detector with precise alarm point identification

- Integrated relay output for advanced fire system management

- Compatibility with addressable fire alarm control panels for professional integration

- EN54-7 compliant certified to European fire safety standards

Further details

✅ 2-wire technology:
Non -polarity designed to simplify wiring and speed up smoke detector installation, reducing connection errors and improving the efficiency of professional fire alarm systems.
✅ Photoelectric smoke detection:
With double emitter and single receiver, capable of ensuring rapid and precise detection of fire incipients, increasing reliability and reducing false alarms.
✅ Compatibility with fire alarm control panels:
Compatibility with addressable fire alarm control panels allows for seamless integration with professional security systems, enabling precise identification of the alarm point and more effective emergency management.
✅ Built-in relay output:
Ideal for advanced fire system control and automatic activation of connected devices in the event of a fire alarm.
✅ EN54-7 compliant:
Certified to European fire safety standards, it guarantees high performance, operational reliability and continuous protection in residential, commercial and industrial environments.

Technical data sheet

HY-2301-RE
Technical Specification
Surveillance Area For installation heights below 4 m, the coverage area is 150 m²
For installation heights between 4 m and 12 m, the coverage area is 80 m²
Relay Out Yes
Working Principle Smoke detection
Alarm Mode Indicator light alarm
Remote Indicator Support
Operating Voltage DC24V
Operating Current Static current: ≤300μA
Alarm current: ≤6.5μA
Operating Temperature –10°C to +50°C (14°F to 122°F)
Operating Humidity ≤ 95% RH (no condensation)
Dimensions (with base) Φ100mm × 46.3mm (Φ3.94" × 1.82")
Weight (with base) 96 g (0.21 lb)
Installation Ceiling Mount
Compliance Standard EN 54-7
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
