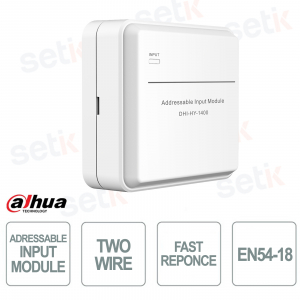

HY-1400 | ADDRESSABLE INPUT MODULE

Dahua

The Dahua HY-1400 addressable input module is designed to monitor and manage external fire alarm devices such as pressure switches, flow indicators, and fire dampers, ensuring reliable integration with addressable fire alarm control panels. Thanks to its polarity-free 2-wire technology and plug-in design, it offers quick and easy installation. The built-in microprocessor ensures stable communications and immediate response within 1 second in the event of an alarm, while ultra-low power consumption improves system efficiency. Compliant with the EN54-18 standard, it is ideal for hotels, schools, shopping malls, factories, and modern industrial environments.

Main specifications:

- 2-wire technology without polarity for simple wiring and quick installation

- Addressable input module for monitoring external fire devices

- Compatibility with pressure switches, flow indicators and fire dampers

- Built-in microprocessor for stable communication and reliable performance

- Quick response within 1 second for immediate alarm management

- Ultra-low energy consumption for greater operational efficiency

- EN54-18 compliant certified for professional fire protection systems

Further details

✅ 2-wire technology:
2-wire, polarity-free technology designed to simplify wiring and reduce installation time, ensuring greater convenience, reliability and integration into modern professional fire protection systems.
✅ Addressable Input Module:
Addressable input module ideal for monitoring and managing external fire detection devices, allowing precise control of their operating status directly from the fire alarm control panel.
✅ Compatibility:
Compatibility with pressure switches, flow indicators, fire dampers and normally open passive devices , for perfect integration with advanced civil and industrial fire-fighting systems.
✅ Integrated microprocessor:
Built-in microprocessor to ensure stable communication, intelligent data processing and high performance in professional addressable fire alarm systems.
✅ Quick reply:
Rapid response within 1 second which allows the alarm signal to be sent immediately to the fire control panel, improving the timeliness of intervention in case of emergency.
✅ EN54-18 compliant:
EN54-18 compliant certified to European standards for professional fire protection systems, ensuring operational reliability, ongoing safety, and compatibility with modern systems.

Technical data sheet

HY-1400
Electrical
Working Voltage DC24V
Current Monitoring current: ≤ 150μA
Alarm current: ≤ 190μA
Indicator Red indicator flashes once every 6 seconds, and flashes once every 2 seconds when malfunctioned
Communication
Wiring Two-wire, polarity-free
Addressing Method Electrical encoder
Address Range 1-254
Communication Distance ≤ 1500 m
Environment
Operating Temperature –10°C to +50°C (+14°F to +122°F)
Storage Temperature –20°C to +65°C (–4°F to +149°F)
Operating Humidity ≤ 95% RH (no condensation)
Construction
Color White
Dimensions (with base) 90 mm × 90 mm × 37 mm (3.54" × 3.54" × 1.46")
Weight (with base) 103 g (0.23 lb)
Compliance Standard EN54-18
