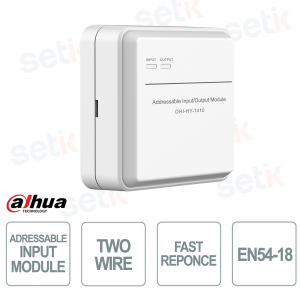

HY-1410 EN54-18 2-Wire Addressable Input Output Module - Dahua

HY-1410 EN54-18 2-Wire Addressable Input Output Module - Dahua

 
-56%

HY-1410 - The addressable module is designed for the control and monitoring of external fire protection devices, providing advanced management of equipment such as elevators, fire dampers, and connected security systems. Thanks to its 2-wire, non-polarity technology and plug-in structure, it ensures simple installation and quick wiring. The built-in microprocessor ensures stable communications and immediate response within 1 second in the event of an alarm, while the controlled input and output functions allow precise monitoring and management of connected devices. Compliant with the EN54-18 standard, it represents a reliable solution for hotels, schools, shopping malls, and industrial environments. Dahua

Technical Data Sheet

referencia : HY-1410

brand : Dahua

EAN: 6923172558374

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

La empresa asiática, fundada en 2001, debe su reputación a la excelente calidad de sus productos en términos de rendimiento y capacidad. La gama de productos de Dahua abarca desde los sistemas clásicos de CCTV hasta los sistemas de seguridad más complejos y articulados: no sólo la videovigilancia, sino también el control de acceso, los sistemas de videoportería, los productos de detección térmica y mucho más. La fiabilidad, la tecnología de punta y los precios competitivos que ofrece Dahua son sólo algunas de las razones por las que Setik siempre ha elegido distribuir la marca. Dahua es desde hace años un sólido punto de referencia en el mercado internacional de los circuitos cerrados de televisión, gracias a las enormes inversiones que cada año se dedican a la investigación y el desarrollo. Las cifras hablan por sí mismas: desde 2016 hasta hoy Dahua ha registrado más de 800 patentes con su propia marca. Actualmente Dahua puede presumir de estar entre los 10 primeros líderes mundiales en el mundo de la seguridad. Este año Dahua fue premiado con el 2º puesto en el ranking "2019 TOP SECURITY 50".

Los productos de la marca Dahua vendidos por Setik SRL pueden ser entregados como productos OEM, es decir, productos que a todos los efectos son productos originales de Dahua, pero que tienen una apariencia estética diferente reservada para el mercado en línea (generalmente en términos de logotipo y embalaje). Esto no afecta en modo alguno a la garantía y a las características técnicas del producto, que es siempre genuino de Dahua, ni a las actualizaciones y la funcionalidad.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. es uno de los principales proveedores mundiales de soluciones de videovigilancia, con más de 13.000 empleados y 35 filiales activas en todo el mundo.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2026-02-19 16:06:32 [link_rewrite] => dahua [meta_title] => Los mejores productos Dahua: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Productos Dahua para la videovigilancia digital IP, HYBRIDA, HD-SDI, HDCVI, como cámaras, grabadoras, control de acceso, accesorios y videointercomunicadores wifi. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

HY-1410 | ADDRESSABLE INPUT/OUTPUT MODULE

Dahua

The Dahua HY-1410 addressable module is a professional solution designed for controlling and monitoring external fire alarm systems such as elevators, fire dampers, and connected security equipment. Its polarity-free 2-wire technology and plug-in design ensure quick and easy installation. The built-in microprocessor ensures stable communications and reliable performance, while the controlled input and output functions allow for active and passive signal management with immediate response within 1 second. Compliant with the EN54-18 standard, it is ideal for fire alarm systems in hotels, schools, shopping malls, and industrial environments.

Main specifications:

- 2-wire technology without polarity for simple wiring and quick installation

- Addressable input/output module for monitoring and controlling fire safety devices

- Built-in microprocessor for stable communications and reliable performance

- Passive NO/NC output control for advanced management of connected equipment

- Quick response within 1 second for immediate alarm transmission

- Input and output control mode for continuous system monitoring

- EN54-18 compliant certified for professional fire protection systems

Further details

✅ 2-wire technology:
2-wire, polarity-free technology designed to simplify wiring and speed up module installation, reducing connection errors and improving the efficiency of professional fire protection systems.
✅ Addressable input/output module:
Addressable input/output module ideal for the control and monitoring of external fire protection devices, allowing precise management of connected equipment directly from the fire control panel.
✅ Compatibility:
Compatibility with elevators, fire dampers, pressure switches, flow indicators and passive NO/NC devices , for perfect integration into advanced civil and industrial fire prevention systems.
✅ Integrated microprocessor:
Built-in microprocessor capable of ensuring stable communications, reliable signal processing and high performance for continuous monitoring of the fire safety system.
✅ Output Control:
Active and passive NO/NC output control designed for advanced management of connected devices, allowing constant activation and monitoring of safety equipment.
✅ Quick reply:
Rapid response within 1 second to immediately send the alarm signal to the fire control panel, improving the timeliness of intervention in emergency situations.
✅ EN54-18 compliant:
EN54-18 compliant certified to European standards for professional fire protection systems, ensuring operational reliability, ongoing safety, and compatibility with modern systems.

Technical data sheet

HY-1410
Electrical
Working Voltage DC24V
Current Monitoring current: ≤ 150μA
Alarm current: ≤ 9μA
Indicator Input indicator: Red LED flashes once every 6 seconds, and flashes once every 2 seconds when malfunctioned, remains lit after receiving feedback
Output indicator: Red LED is constantly off when works normally, and flashes once every 2 seconds when malfunctioned, remains lit after receiving start signal
Communication
Wiring Two-wire, polarity-free
Addressing Method Electrical encoder
Address Range 1-254
Communication Distance ≤ 1500 m
Environment
Operating Temperature –10°C to +50°C (+14°F to +122°F)
Storage Temperature –20°C to +65°C (–4°F to +149°F)
Operating Humidity ≤ 95% RH (no condensation)
Construction
Color White
Dimensions (with base) 90 mm × 90 mm × 37 mm (3.54" × 3.54" × 1.46")
Weight (with base) 120 g (0.26 lb)
Compliance Standard EN54-18
