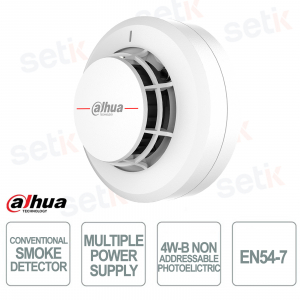

HY-C134 Conventional Smoke Detector EN54-7 4W-B Photoelectric - Dahua

HY-C134 Conventional Smoke Detector EN54-7 4W-B Photoelectric - Dahua

 
-56%

HY-C134 - The Dahua DHI-HY-C134 conventional smoke detector is designed to provide reliable fire protection thanks to 4W-B photoelectric technology with double emitter and single receiver, capable of rapidly detecting the presence of smoke. Equipped with an intelligent contamination compensation algorithm , it automatically adjusts the alarm threshold based on the level of dust present in the optical labyrinth, reducing maintenance and improving performance. The structure with anti-loosening screws simplifies installation, while the acid- and corrosion-resistant materials ensure a long life. Compatible with conventional fire control panels and compliant with the EN54-7 standard, it is ideal for hotels, offices, schools, warehouses and industrial environments. Dahua

Technical Data Sheet

referencia : HY-C134

brand : Dahua

EAN: 6939554910326

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

La empresa asiática, fundada en 2001, debe su reputación a la excelente calidad de sus productos en términos de rendimiento y capacidad. La gama de productos de Dahua abarca desde los sistemas clásicos de CCTV hasta los sistemas de seguridad más complejos y articulados: no sólo la videovigilancia, sino también el control de acceso, los sistemas de videoportería, los productos de detección térmica y mucho más. La fiabilidad, la tecnología de punta y los precios competitivos que ofrece Dahua son sólo algunas de las razones por las que Setik siempre ha elegido distribuir la marca. Dahua es desde hace años un sólido punto de referencia en el mercado internacional de los circuitos cerrados de televisión, gracias a las enormes inversiones que cada año se dedican a la investigación y el desarrollo. Las cifras hablan por sí mismas: desde 2016 hasta hoy Dahua ha registrado más de 800 patentes con su propia marca. Actualmente Dahua puede presumir de estar entre los 10 primeros líderes mundiales en el mundo de la seguridad. Este año Dahua fue premiado con el 2º puesto en el ranking "2019 TOP SECURITY 50".

Los productos de la marca Dahua vendidos por Setik SRL pueden ser entregados como productos OEM, es decir, productos que a todos los efectos son productos originales de Dahua, pero que tienen una apariencia estética diferente reservada para el mercado en línea (generalmente en términos de logotipo y embalaje). Esto no afecta en modo alguno a la garantía y a las características técnicas del producto, que es siempre genuino de Dahua, ni a las actualizaciones y la funcionalidad.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. es uno de los principales proveedores mundiales de soluciones de videovigilancia, con más de 13.000 empleados y 35 filiales activas en todo el mundo.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2026-02-19 16:06:32 [link_rewrite] => dahua [meta_title] => Los mejores productos Dahua: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Productos Dahua para la videovigilancia digital IP, HYBRIDA, HD-SDI, HDCVI, como cámaras, grabadoras, control de acceso, accesorios y videointercomunicadores wifi. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

HY-C134 | TRADITIONAL SMOKE DETECTOR

Dahua

The Dahua HY-C134 conventional smoke detector offers reliable fire protection thanks to 4W-B photoelectric technology with double emitter and single receiver, designed to quickly detect the presence of smoke. Equipped with an intelligent contamination compensation algorithm , it automatically adjusts the alarm threshold based on the dust levels present in the optical labyrinth, improving performance and maintenance. Compatible with remote LED indicators and conventional fire alarm control panels, it ensures easy installation thanks to anti-loosening screws and a plug-and-play design. Compliant with the EN54-7 standard, it is ideal for hotels, offices, schools, libraries, warehouses and industrial environments.

Main specifications:

- 4W-B photoelectric smoke detector with high detection accuracy

- Compatibility with remote LED indicators for additional visual signaling

- Intelligent contamination compensation algorithm to reduce maintenance and false alarms

- Non-addressable plug-and-play design for easy installation and configuration

- Acid and corrosion resistant materials for longer life

- Anti-loosening screws for stable and secure mounting

- EN54-7 compliant certified for professional fire protection systems

Further details

✅ Smoke detector:
4W-B photoelectric smoke detector designed to ensure rapid and accurate detection of the presence of smoke thanks to double emitter and single receiver technology, ideal for professional fire protection systems.
✅ Compatibility:
Compatibility with conventional fire control panels and remote LED indicators allows for seamless integration into residential, commercial and industrial security systems.
✅ Intelligent algorithm:
Intelligent contamination compensation algorithm capable of automatically adjusting the alarm threshold based on the dust levels present in the optical labyrinth, reducing false alarms and simplifying maintenance.
✅ Plug-and-play structure:
Non-addressable plug-and-play design designed for quick installation, simple configuration, and immediate debugging without address coding.
✅ EN54-7 compliant:
EN54-7 compliant certified to European fire safety standards, ensuring operational reliability, high performance and continuous protection in any professional environment.

Technical data sheet

HY-C134
Technical Specification
Surveillance Area For installation heights below 4 m, the coverage area is 150 m²
For installation heights between 4 m and 12 m, the coverage area is 80 m²
Remote Indicator Support
Working Principle Smoke detection
Alarm mode Indicator light alarm
Operating Voltage DC 24V
Operating Current Static current: ≤ 60μA
Alarm current: ≤ 25mA
Operating Temperature –10°C to +50°C (14°F to 122°F)
Operating Humidity ≤ 95% RH (no condensation)
Dimensions (with base) Φ100mm × 46.3mm (Φ3.94" × 1.82")
Weight (with base) 96 g (0.21 lb)
Installation Ceiling Mount
Certification EN 54-7
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
