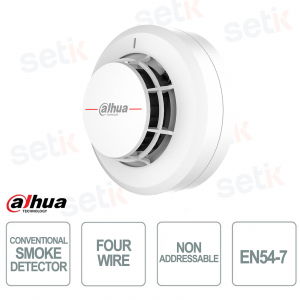

HY-C134-RE Conventional 4-Wire EN54-7 Smoke Detector with Relay - Dahua

HY-C134-RE Conventional 4-Wire EN54-7 Smoke Detector with Relay - Dahua

 
-56%

HY-C134-RE - The Dahua DHI-C134-RE conventional smoke detector offers advanced fire protection using 4-wire photoelectric technology with integrated relay output , ideal for professional security systems. The high-performance sensor uses blue and infrared light scattering to analyze the presence of smoke in real time and quickly activate the alarm. Equipped with an intelligent contamination compensation algorithm , it automatically adjusts the detection threshold, improving reliability and maintenance. The non-addressable plug-and-play design simplifies installation, while acid- and corrosion-resistant materials ensure a long life. Compliant with the EN54-7 standard, it is perfect for hotels, offices, schools, warehouses and industrial environments. Dahua

Technical Data Sheet

referencia : HY-C134-RE

brand : Dahua

EAN: 6939554928611

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

La empresa asiática, fundada en 2001, debe su reputación a la excelente calidad de sus productos en términos de rendimiento y capacidad. La gama de productos de Dahua abarca desde los sistemas clásicos de CCTV hasta los sistemas de seguridad más complejos y articulados: no sólo la videovigilancia, sino también el control de acceso, los sistemas de videoportería, los productos de detección térmica y mucho más. La fiabilidad, la tecnología de punta y los precios competitivos que ofrece Dahua son sólo algunas de las razones por las que Setik siempre ha elegido distribuir la marca. Dahua es desde hace años un sólido punto de referencia en el mercado internacional de los circuitos cerrados de televisión, gracias a las enormes inversiones que cada año se dedican a la investigación y el desarrollo. Las cifras hablan por sí mismas: desde 2016 hasta hoy Dahua ha registrado más de 800 patentes con su propia marca. Actualmente Dahua puede presumir de estar entre los 10 primeros líderes mundiales en el mundo de la seguridad. Este año Dahua fue premiado con el 2º puesto en el ranking "2019 TOP SECURITY 50".

Los productos de la marca Dahua vendidos por Setik SRL pueden ser entregados como productos OEM, es decir, productos que a todos los efectos son productos originales de Dahua, pero que tienen una apariencia estética diferente reservada para el mercado en línea (generalmente en términos de logotipo y embalaje). Esto no afecta en modo alguno a la garantía y a las características técnicas del producto, que es siempre genuino de Dahua, ni a las actualizaciones y la funcionalidad.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. es uno de los principales proveedores mundiales de soluciones de videovigilancia, con más de 13.000 empleados y 35 filiales activas en todo el mundo.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2026-02-19 16:06:32 [link_rewrite] => dahua [meta_title] => Los mejores productos Dahua: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Productos Dahua para la videovigilancia digital IP, HYBRIDA, HD-SDI, HDCVI, como cámaras, grabadoras, control de acceso, accesorios y videointercomunicadores wifi. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

HY-C134-RE | TRADITIONAL SMOKE DETECTOR

Dahua

The Dahua HY-C134-RE conventional smoke detector offers advanced fire protection using 4-wire photoelectric technology with integrated relay output , ideal for professional security systems and advanced fire applications. The high-performance sensor uses scattered blue and infrared light to quickly detect smoke and promptly activate the alarm. Equipped with an intelligent contamination compensation algorithm , it automatically adjusts the detection threshold, improving reliability and reducing maintenance. The non-addressable, plug-and-play design facilitates installation and configuration, while acid- and corrosion-resistant materials ensure a long life. Compliant with the EN54-7 standard, it is ideal for hotels, offices, schools, warehouses and industrial environments.

Main specifications:

- Conventional 4-wire smoke detector with advanced photoelectric technology

- Integrated relay output for management and control of connected devices

- Intelligent contamination compensation algorithm to reduce false alarms and maintenance

- High-performance sensor with blue and infrared light for precise smoke detection

- Non-addressable plug-and-play design for quick installation and easy configuration

- Acid and corrosion resistant materials for greater reliability over time

- EN54-7 compliant certified for professional fire protection systems

Further details

✅ Smoke detector:
Conventional 4-wire smoke detector designed to ensure rapid and accurate fire detection thanks to advanced photoelectric technology with intelligent analysis of light signals.
✅ Built-in relay output:
Integrated relay output ideal for automatic control of connected devices and for advanced management of professional fire systems.
✅ 4-wire technology:
4-wire technology ensures stable power supply, reliable communication and effective integration with conventional fire alarm control panels.
✅ Intelligent algorithm:
Intelligent contamination compensation algorithm capable of automatically adjusting the alarm threshold based on the dust levels present in the optical labyrinth, reducing false alarms and maintenance.
✅ High-performance sensor:
High-performance sensor with blue light and infrared technology designed to analyze the presence of smoke in real time and ensure greater precision in fire detection.
✅ Plug-and-play structure:
Non-addressable plug-and-play design allows for quick installation, immediate configuration and simplified debugging without the need for address coding.
✅ EN54-7 compliant:
EN54-7 compliant certified to European fire safety standards, ensuring reliability, high performance and continuous protection in residential, commercial and industrial environments.

Technical data sheet

HY-C134-RE
Technical Specification
Surveillance Area For installation heights below 4 m, the coverage area is 150 m²
For installation heights between 4 m and 12 m, the coverage area is 80 m²
Relay Out Yes
Working Principle Smoke detection
Alarm mode Indicator light alarm
Operating Voltage DC 24V
Operating Current Static current: ≤ 60μA
Alarm current: ≤ 20mA
Operating Temperature –10°C to +50°C (14°F to 122°F)
Operating Humidity ≤ 95% RH (no condensation)
Dimensions (with base) Φ100mm × 46.3mm (Φ3.94" × 1.82")
Weight (with base) 96 g (0.21 lb)
Installation Ceiling Mount
Certification EN 54-7
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
