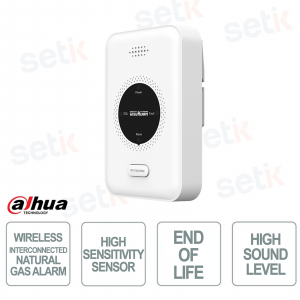

HY-GA20A-R8 Wireless Standalone Interconnected Methane Gas Detector 70 dB - Dahua

HY-GA20A-R8 Wireless Standalone Interconnected Methane Gas Detector 70 dB - Dahua

 
-56%

The HY-GA20A-R8 - The standalone and interconnected wireless gas detector is designed for advanced methane (CH₄) leak monitoring in domestic and commercial environments such as homes, restaurants, and hotels. Thanks to its highly sensitive sensor, it quickly detects gas leaks with high accuracy and reduced false alarms, activating a powerful 70 dB audible alarm and visual LED indicators. Interconnected wireless technology allows up to 24 devices to be connected, ensuring simultaneous alarms across the entire network. Equipped with an End-of-Life function, it automatically signals the end of the sensor's life cycle, offering up to 5 years of operational autonomy. The compact wall-mounted design makes the device practical, reliable, and ideal for intelligent security systems. Dahua

Technical Data Sheet

referencia : HY-GA20A-R8

brand : Dahua

EAN: 6976643255661

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

La empresa asiática, fundada en 2001, debe su reputación a la excelente calidad de sus productos en términos de rendimiento y capacidad. La gama de productos de Dahua abarca desde los sistemas clásicos de CCTV hasta los sistemas de seguridad más complejos y articulados: no sólo la videovigilancia, sino también el control de acceso, los sistemas de videoportería, los productos de detección térmica y mucho más. La fiabilidad, la tecnología de punta y los precios competitivos que ofrece Dahua son sólo algunas de las razones por las que Setik siempre ha elegido distribuir la marca. Dahua es desde hace años un sólido punto de referencia en el mercado internacional de los circuitos cerrados de televisión, gracias a las enormes inversiones que cada año se dedican a la investigación y el desarrollo. Las cifras hablan por sí mismas: desde 2016 hasta hoy Dahua ha registrado más de 800 patentes con su propia marca. Actualmente Dahua puede presumir de estar entre los 10 primeros líderes mundiales en el mundo de la seguridad. Este año Dahua fue premiado con el 2º puesto en el ranking "2019 TOP SECURITY 50".

Los productos de la marca Dahua vendidos por Setik SRL pueden ser entregados como productos OEM, es decir, productos que a todos los efectos son productos originales de Dahua, pero que tienen una apariencia estética diferente reservada para el mercado en línea (generalmente en términos de logotipo y embalaje). Esto no afecta en modo alguno a la garantía y a las características técnicas del producto, que es siempre genuino de Dahua, ni a las actualizaciones y la funcionalidad.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. es uno de los principales proveedores mundiales de soluciones de videovigilancia, con más de 13.000 empleados y 35 filiales activas en todo el mundo.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2026-02-19 16:06:32 [link_rewrite] => dahua [meta_title] => Los mejores productos Dahua: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Productos Dahua para la videovigilancia digital IP, HYBRIDA, HD-SDI, HDCVI, como cámaras, grabadoras, control de acceso, accesorios y videointercomunicadores wifi. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

HY-GA20A-R8 | Stand-alone Wireless Methane Gas Detector

Dahua

The Dahua HY-GA20A-R8 gas detector is a professional standalone wireless device designed for the rapid detection of methane (CH₄) leaks in homes, hotels, restaurants and commercial environments. Thanks to the high-sensitivity sensor , it guarantees precise detections with reduced false alarms, activating a powerful 70 dB siren and immediate visual LED warnings. Interconnected wireless technology allows the connection of up to 24 devices , creating a synchronized alarm system for advanced protection. Equipped with an End of Life function, it automatically alerts when the sensor reaches the end of its operating cycle, ensuring maximum reliability for up to 5 years . The compact design with wall installation makes this detector ideal for intelligent and professional security systems.

Main specifications:

- Highly sensitive sensor for early detection of methane gas leaks with high performance and reduction of false alarms

- 70dB audible alarm with built-in LED indicators for immediate audible and visual notifications

- Interconnected wireless connection of up to 24 devices for a coordinated and reliable security system

- End of Life (EOL) function that automatically signals sensor replacement via buzzer and LED

- Sensor lifespan up to 5 years for stable and continuous operation over time

- Easy wall installation thanks to the compact design and resistant PC+ABS material structure

- Integrated relay output and valve output for advanced management of gas safety systems

Further details

✅ Gas Detector:
The Dahua HY-GA20A-R8 is an advanced methane gas (CH₄) detector designed to ensure maximum safety in homes, hotels, restaurants, and commercial environments. Thanks to its rapid and accurate detection, the device responds immediately to gas leaks, helping to protect people and environments.
✅ High sensitivity sensor:
The device integrates a high-precision semiconductor sensor capable of promptly identifying even small methane leaks, significantly reducing false alarms and ensuring continuous and reliable monitoring 24 hours a day.
✅ Sound alarm:
The detector features a powerful built-in 70 dB siren, accompanied by visual LED signals, which immediately alert users to dangerous gas concentrations in the environment.
✅ Wireless connection:
Interconnected wireless technology allows up to 24 devices to be connected simultaneously, creating an intelligent security network where all alarms are activated simultaneously for complete building protection.
✅ End of Life Function:
The EOL (End of Life) function constantly monitors the sensor status and automatically signals the end of the operating cycle via buzzer and LED indicators, always ensuring high reliability and scheduled maintenance.
✅ Relay output:
The integrated relay output allows the detector to be integrated with external security, automation and control systems, improving the centralised management of gas alarms.
✅ Valve output:
Thanks to the dedicated valve output , the device can automatically activate the gas supply shutdown in the event of a leak detected, increasing the level of safety and preventing risky situations.

Technical data sheet

HY-GA20A-R8
Technical Specification
Collection Type Methane (CH₄)
Sampling Period 200 ms
Working Principle Semiconductor
Alarm Type Gas alarm, fault warning, End of Life warning
Alarm Volume 70 dB (A) at 1 m (3.28 ft)
Alarm Mode Visual and audible alarm
Output 1 valve output, 1 relay output
Silencing Function Support
Indicator Light Alarm, Fault, Power, and EoL
LED Instructions Alarm: Red indicator
Fault: Yellow indicator
Power: Green indicator
Eol: Yellow indicator
Operating Voltage DC12V
Operating Environment Indoor
Operating Temperature –10°C to +55°C (+14°F to +131°F)
Operating Humidity ≤ 95% RH (no condensation)
Communication 868 MHz (-R8)/925 MHz (-R9)
Color White
Casing PC+ABS
Weight (with base) 123 g (0.28 lb)
Dimensions (with base) 118.0mm × 78.0mm × 33.7mm (4.65" × 3.07" × 1.33")
Installation Wall Mount
Certification CE, UKCA, PSTI
