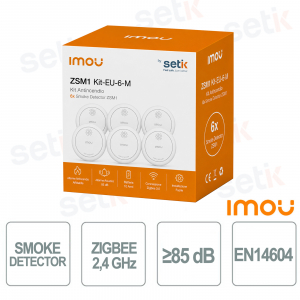

IMOU ZSM1 Zigbee EN14604 Smart Smoke Detector Kit with Interconnected Alarm and 5-Year Battery

IMOU ZSM1 Zigbee EN14604 Smart Smoke Detector Kit with Interconnected Alarm and 5-Year Battery

 
-10%

ZSM1 Kit-EU-6-M - The IMOU ZSM1 6-detector smart smoke detector kit offers extended protection for homes, offices, and commercial environments thanks to EN 14604 certification and 2.4 GHz Zigbee connection with gateway. Each sensor integrates a siren of at least 85 dB , a red LED , and the interconnected alarm function, which simultaneously activates all associated devices. The system supports push notifications, remote silencing, and alert sharing via app, maintaining local alarms even offline. The wireless range reaches 130 meters , while the lithium battery guarantees over 5 years of battery life . Imou

Technical Data Sheet

referencia : ZSM1 Kit-EU-6-M

brand : IMOU

EAN: 6937479644869

Manufacturer Object ( [id] => 41 [name] => IMOU [description] =>

Imou utiliza tecnologías inteligentes y fáciles de usar diseñadas para la seguridad de los hogares y las pequeñas y medianas empresas. Todos los sistemas son compatibles con Alexa y Google Home, sólo tienes que pedirle al dispositivo que te muestre las imágenes y siempre tendrás bajo control lo que es más importante para nosotros.

[short_description] =>


Imou nace con el objetivo de proponer soluciones inteligentes que permitan a todo el mundo disfrutar de una vida más cómoda y segura, simplificando el día a día de los consumidores, como destaca el claim oficial: "Enjoy Smart Life".

[id_address] => [date_add] => 2020-01-14 16:31:52 [date_upd] => 2026-02-19 17:36:36 [link_rewrite] => imou [meta_title] => Imou [meta_keywords] => imou [meta_description] => Imou nace con el objetivo de proponer soluciones inteligentes que permitan a todo el mundo disfrutar de una vida más cómoda y segura, simplificando el día a día de los consumidores [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

ZSM1 Kit-EU-6-M | SMART SMOKE DETECTOR - ZIGBEE EN14604 - KIT OF 6 SENSORS


The IMOU ZSM1 smart smoke detector kit of 6 devices guarantees comprehensive protection for homes, offices and commercial environments thanks to EN 14604 certification and 2.4 GHz Zigbee connection with gateway. Each sensor integrates a siren of at least 85 dB , a red LED and the interconnected alarm function, which simultaneously activates all associated devices. The system supports push notifications, remote silencing and sharing alerts via app, continuing to provide local alarms even offline. The wireless range reaches 130 meters , while the lithium battery ensures over 5 years of battery life .

Main specifications:

  • Kit: 6 ZSM1 sensors
  • Certification: EN 14604
  • Connection: Zigbee 2.4 GHz
  • Alarm: ≥85 dB interconnected
  • Range: up to 130 m
  • Autonomy: over 5 years

Further details

✅ Certification:
Compliant with the EN 14604 standard , the IMOU ZSM1 smoke detector guarantees high standards of safety , reliability and performance for the protection of homes, offices and commercial environments.
✅ Connection:
Using 2.4GHz Zigbee technology, the device connects to a compatible gateway to send push notifications , enable remote silencing , and share alarms with multiple users via a dedicated app.
✅ Alarm:
The powerful siren of over 85 dB , combined with the LED indicator , ensures immediate warning in case of smoke detection. Furthermore, the interconnected alarm function automatically activates all associated detectors, even in the absence of an internet connection.

✅ Range:
Wireless communication offers coverage of up to 130 meters , ensuring a stable connection between the detector and the gateway for efficient management even in large environments.

✅ Autonomy:
Powered by a CR123A lithium battery , the sensor ensures an autonomy of more than 5 years , reducing maintenance interventions and guaranteeing continuous monitoring over time.

Technical data sheet

ZSM1-IMOU
General
Appearance size:φ86 x H34.5mm
Working voltage: DC3V (1xCR123A/CR17335 Lithium Battery)
Visual alarm signal: red LED indicator
Sound Level:≥85dB(at 3m straight ahead )
Standby current: ≤10uA
Low pressure alarm: 2.6±0.05V
Working current: 150mA
Operatign temperatures:32°Fto131°F
Mounting: wall mounting or ceiling mounting
Battery life: >5 years
Weight: 150g
Network
Wireless protocol: Zigbee
Transmit frequency: 2.4GHz
Transmit power: 6dB/m
Communication distance: 130m
