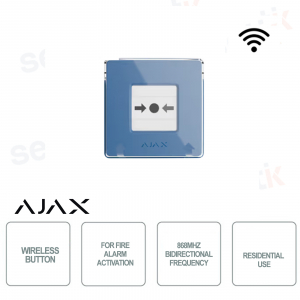

Ajax ManualCallPoint Jeweller Blue – Wireless Manual Button for Alarms and Emergency Scenarios

Ajax ManualCallPoint Jeweller Blue – Wireless Manual Button for Alarms and Emergency Scenarios

 
BEST PRICE

71254.171.NC1 # 71254 | Ajax ManualCallPoint Jeweller blue is a wireless manual button designed for the immediate activation of alarms and emergency scenarios in professional and public settings. With a simple press, it allows instant activation of the alarm and the launch of programmable scenarios such as sirens, opening of gates, power interruption and ventilation. Jeweller radio communication up to 1700 m ensures fast, stable and secure transmissions to the Ajax system. The device features a transparent protective cover , anti-sabotage protection and status LEDs for immediate control. The battery power with up to 7 years of autonomy and the reset via a dedicated key ensure reliability and operational continuity over time. Ajax

Technical Data Sheet

referencia : 71254.171.NC1

brand : Ajax Systems

EAN: 4823114045202

Manufacturer Object ( [id] => 31 [name] => Ajax Systems [description] =>

Establecido en 2011, Ajax Systemconstruye sistemas inalámbricos de incendio y alarma con la tecnología inalámbrica JEWELLER que le permite monitorear de manera segura todos los dispositivos de red conectados. Ajax System ofrece soluciones para el hogar, la oficina o las actividades comerciales, gestionables a través de la App, siempre actualizadas y compatibles con los sistemas iOS y Android. Los sistemas de alarma de Ajax System son fáciles de instalar, de hecho sólo toma 15 segundos conectar la unidad de control a los sensores. Además, pueden integrarse con las cámaras de vigilancia, tienen un margen de error casi nulo y, en caso de peligro, en menos de 150 milisegundos envían una notificación (sms, push o call).

[short_description] =>

Ajax SystemsAjax Systems


Los sistemas de alarma Ajax system utilizan la última tecnología inalámbrica que hace que todos los productos sean fiables y estén siempre conectados. Además de su excelente rendimiento, los sistemas de alarma Ajax se distinguen por su diseño moderno y elegante.

[id_address] => [date_add] => 2019-01-15 15:51:16 [date_upd] => 2025-06-11 12:47:32 [link_rewrite] => ajax-systems [meta_title] => Sistemas de incendio y alarma de última generación - Ajax System [meta_keywords] => sistemi allarme ajax,sicurezza ajax,allarmi ajax,ajax security system,ajax security,ajax system [meta_description] => I sistemi allarme Ajax system sono dispositivi wireless affidabili e innovativi, non producono falsi allarmi e si installano in 15 secondi. Scoprili su Setik.biz! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

CARTEL GRATUITO DE TVCC×

Con todos >> KITS AJAX

LIQUIDACION TOTAL ×

 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

71254.171.NC1 | PROGRAMMABLE AND RESETTABLE WIRELESS BUTTON

Ajax

Ajax ManualCallPoint Jeweller, 71254.171.NC1, blue is a wireless manual button designed for the rapid activation of alarms and emergency scenarios in professional, commercial and public environments. With a simple press, it allows you to trigger security alarms, critical notifications and preconfigured automations such as opening gates, activating sirens and managing systems. Jeweller radio communication up to 1700 m ensures stable, encrypted and immediate transmissions to the Ajax system. The device integrates an anti-accidental activation mechanism , anti-sabotage protection and status LEDs , while the battery power with up to 7 years of autonomy and the reset via a dedicated key guarantee reliability and operational continuity over time.

Main specifications:

- Immediate manual activation of the fire alarm

- Programmable automation scenarios for evacuation and safety

- Jeweler wireless communication up to 1700 m

- Transparent cover to prevent accidental activation

- Anti-sabotage protection with immediate reporting

- Battery powered with up to 7 years of battery life

Further details

✅ Jeweler Communication:
The button uses Jeweller radio technology with encrypted two-way transmission , anti-interference frequency hopping and a range of up to 1700 m in open fields , ensuring immediate alarm sending and maximum reliability even in complex and professional environments.
✅ Main features:
Resettable wireless device designed for the rapid activation of alarms and emergency scenarios , it supports programmable actions such as sirens, lock opening, system management and critical notifications, with a simplified button mechanism and transparent protective cover to prevent accidental activations.
✅ Special tool (wrench):
The button can only be reset using a dedicated reset key , included in the kit, which ensures access control , secure reset after an alarm and prevention of unauthorised interventions.
✅ Anti-sabotage protection :
It integrates anti-tamper with continuous monitoring of the device status , detecting attempts to open or remove it and sending instant reports to the Ajax system and management apps.
✅ Power supply:
Powered by 2 pre-installed CR123A batteries , it offers up to 7 years of autonomy , reducing maintenance and ensuring continuous operation even in the absence of a power grid , ideal for public and industrial installations.

Technical data sheet

71254.171.NC1
Communication
Jeweler communication technology Proprietary wireless communication technology to transmit commands, alarms, and events.
Key features:
  • Two-way communication.
  • Advanced anti-sabotage.
  • Block encryption featuring a dynamic key.
  • Instant notifications.
  • Remote configuration via the Ajax apps.
Radio frequency bands 866.0 - 866.5 MHz
868.0 - 868.6 MHz
868.7 - 869.2 MHz
905.0 - 926.5 MHz
915.85 - 926.5 MHz
921.0 - 922.0 MHz
Depence on the sales reaction
Maximum effective radiated power (ERP) up to 25 mW
Automatic power control to reduce power consumption and radio interference.
Radio signal modulation GFSK
Radio signal range Up to 1,700 m
up to 5,500 ft
Between the detector and a hub (or radio signal range extender) in an open space.
Encrypted radio communication All the data stored and transmitted are protected by block encryption featuring a dynamic key.
Frequency hopping Radio communication uses frequency hopping to prevent interception and jamming.
Key features
Resettable frangible element activates the button
When the central part (frangible element) is pressed, the button depresses inward, triggering an alarm or initiating a scenario. Two yellow stripes appear at the top and bottom, indicating the device's state.
Operating modes fire alarm
trigger scenario
With appropriate settings, it activates an alarm or controls Ajax automation devices.
LED status indication fire alarm
malfunctions
The LED indicator on the device enclosure lights up when a fire alarm is triggered or malfunctions are detected.
Interconnected fire detectors alarms by pressing the button
By pressing the frangible element, fire detectors in the system trigger the built-in sirens
Critical alerts The system can activate intrusion sirens and send audible alarm notifications to users, even if the sound is muted, the Do Not Disturb mode is on, or headphones are connected
Protection against accidental presses Lift the transparent lid to access the frangible element. The lid protects against false button presses
CMS alarm transferring can be disabled for the Blue version only
Special tool (key)
Reset button after pressing
To reset the button, insert the special tool into the corresponding hole.
Hole in the enclosure to hang on a ring from a keychain
The person responsible for fire safety can carry the special tool on their keychain.
Convenient dismantling The special tool opens the lock to dismantle the device from SmartBracket mounting panel
Recommendations It is recommended to install the button in easily accessible places at a height of 1.4 m.
The device is designed for indoor installation only.
Sabotage protection
Tampering alarm Notifies on attempts to detach the button from the surface or remove it from the mounting panel
Protection against spoofing device authentication
Detection of communication failure after 36 s
The detection time depends on the Jeweler or Jeweller/Fibra settings
Power supply
Batteries 2 × CR123A
Pre-installed. With typical use (one press lasting 1 minute per week), the batteries can last up to 7 years.
Enclosure
Color Blu
Dimension 102 × 104 × 39 mm
4.02″ × 4.09″ × 1.53″
Weight 214 g
7.55 oz
Operating temperature range from 0 °C to +50 °C
from 32°F to 122°F
Operating humidity up to 80%
Complete set ManualCallPoint (Blue) Jeweller
SmartBracket mounting panel
Special tool (key)
2 × CR123A battery (pre-installed)
Installation kit
Quick start guide
Warranty 24 months
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
