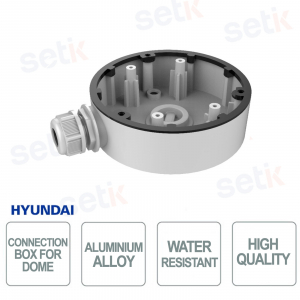

HYU-1002 | JUNCTION BOX FOR DOME

The HYU-1002 junction box is designed for the secure installation of dome cameras indoors and outdoors. Made of water-resistant aluminum alloy, it offers side and bottom entries and is ideal for supporting up to 4.5 kg on flat surfaces. Compact and rugged, it provides excellent protection and cable organization, making it perfect for professional video surveillance systems .
Main specifications:
- Compatible with dome cameras
- Cable inputs: side and bottom
- Supports up to 4.5 kg
- Made of aluminum alloy with spray treatment
- Water resistant, indoor/outdoor use
- Dimensions: Ø120 x 37.2 mm – Weight: 250 g
Further details
Technical data sheet
HYU-1002 |
Specifications |
Dome junction box |
Side and bottom entrances |
Applicable both indoors and outdoors |
Must be installed on a flat surface that can support more than 3 times the total weight of the camera and bracket |
Load capacity of 4.5 kg |
Aluminum alloy with sprayed surface treatment |
Water resistant |
Color: white |
Dimensions: Ø120 x 37.2 mm |
Weight: 250 g |
