Dahua PFA135 Junction Box for IP Cameras with Easy Mounting

Dahua PFA135 Junction Box for IP Cameras with Easy Mounting

-58%

PFA135 - The junction box is a stylish and functional support for mounting IP cameras, designed to keep wiring tidy thanks to its side and bottom outlets. Made of aluminum alloy, it supports up to 1 kg of weight and is resistant to extreme temperatures from -40°C to +60°C and humidity up to 90%. Easy to install, it ensures a clean and protected installation, ideal for indoor and outdoor applications with basic corrosion protection. Dahua

Technical Data Sheet

referencia : PFA135

brand : Dahua

EAN: 6939554903519

Disponibilità: 11

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

La empresa asiática, fundada en 2001, debe su reputación a la excelente calidad de sus productos en términos de rendimiento y capacidad. La gama de productos de Dahua abarca desde los sistemas clásicos de CCTV hasta los sistemas de seguridad más complejos y articulados: no sólo la videovigilancia, sino también el control de acceso, los sistemas de videoportería, los productos de detección térmica y mucho más. La fiabilidad, la tecnología de punta y los precios competitivos que ofrece Dahua son sólo algunas de las razones por las que Setik siempre ha elegido distribuir la marca. Dahua es desde hace años un sólido punto de referencia en el mercado internacional de los circuitos cerrados de televisión, gracias a las enormes inversiones que cada año se dedican a la investigación y el desarrollo. Las cifras hablan por sí mismas: desde 2016 hasta hoy Dahua ha registrado más de 800 patentes con su propia marca. Actualmente Dahua puede presumir de estar entre los 10 primeros líderes mundiales en el mundo de la seguridad. Este año Dahua fue premiado con el 2º puesto en el ranking "2019 TOP SECURITY 50".

Los productos de la marca Dahua vendidos por Setik SRL pueden ser entregados como productos OEM, es decir, productos que a todos los efectos son productos originales de Dahua, pero que tienen una apariencia estética diferente reservada para el mercado en línea (generalmente en términos de logotipo y embalaje). Esto no afecta en modo alguno a la garantía y a las características técnicas del producto, que es siempre genuino de Dahua, ni a las actualizaciones y la funcionalidad.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. es uno de los principales proveedores mundiales de soluciones de videovigilancia, con más de 13.000 empleados y 35 filiales activas en todo el mundo.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-06-24 15:40:21 [link_rewrite] => dahua [meta_title] => Los mejores productos Dahua: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Productos Dahua para la videovigilancia digital IP, HYBRIDA, HD-SDI, HDCVI, como cámaras, grabadoras, control de acceso, accesorios y videointercomunicadores wifi. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR


LIQUIDACION TOTAL ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

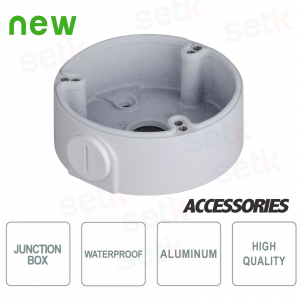

PFA135 | WATERTIGHT JUNCTION BOX


Dahua

The Dahua PFA135 junction box is designed for a tidy and secure installation of IP cameras, offering a compact and elegant design. Constructed of durable aluminum alloy, it ensures protection and durability even in harsh environments, with stable operation from -40°C to +60°C. It is ideal for residential and professional applications, simplifying cable management and enhancing the aesthetics of the video surveillance system.

Main specifications:

- Durable aluminum alloy construction

- Maximum load supported up to 1 kg

- Side and bottom cable holes for clean installation

- Operation from -40°C to +60°C, humidity up to 90%

- Compatible with selected Dahua cameras

- Elegant white finish for indoor or outdoor use

Further details

Material:
The Dahua PFA135 junction box is made of durable aluminum alloy, ideal for ensuring strength, durability, and protection of electrical connections in both indoor and outdoor installations. The metal frame ensures excellent weather resistance and an elegant finish for a clean aesthetic.
Operating temperature :
Designed to operate smoothly in extreme climates, the PFA135 supports a temperature range of -40°C to +60°C. It is ideal for environments with wide temperature fluctuations, ensuring reliability even in cold or very hot climates. Operating humidity is supported up to 90%, ensuring stable performance even in humid environments.
PFA135 junction box dimensions diagram

Technical data sheet

Model PFA135
Characteristics
General Junction Box
Material Aluminum
Dimension φ90x33.7mm
Inch Thread M20(G1/2”)
Operating Temperature -40ºC ~60ºC
Humidity 0~90% RH
Load Bearing 1.0Kg
Weight 0.14Kg
Color White
Applicable Model

Please see “Accessory Selection”

All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
