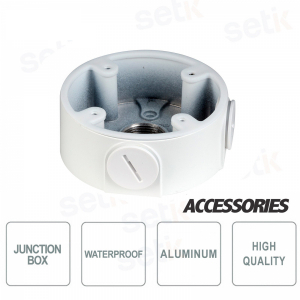

Dahua PFA13A-E Aluminum Junction Box for Outdoor Cameras

Dahua PFA13A-E Aluminum Junction Box for Outdoor Cameras

-57%

PFA13A-E - is a compact and elegant junction box, ideal for professional video surveillance installations. Made of durable aluminum alloy, it ensures protection and tidiness in cable connections, with a modern design and white finish. It supports a load of up to 3 kg and operates within a wide temperature range from -40°C to +60°C, ensuring reliability both indoors and outdoors. Its compact size (96.7 x 37.2 mm) and G3/4" thread make it versatile and easy to install. Dahua

Technical Data Sheet

referencia : PFA13A-E

brand : Dahua

EAN: 6939554930911

Disponibilità: 11

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

La empresa asiática, fundada en 2001, debe su reputación a la excelente calidad de sus productos en términos de rendimiento y capacidad. La gama de productos de Dahua abarca desde los sistemas clásicos de CCTV hasta los sistemas de seguridad más complejos y articulados: no sólo la videovigilancia, sino también el control de acceso, los sistemas de videoportería, los productos de detección térmica y mucho más. La fiabilidad, la tecnología de punta y los precios competitivos que ofrece Dahua son sólo algunas de las razones por las que Setik siempre ha elegido distribuir la marca. Dahua es desde hace años un sólido punto de referencia en el mercado internacional de los circuitos cerrados de televisión, gracias a las enormes inversiones que cada año se dedican a la investigación y el desarrollo. Las cifras hablan por sí mismas: desde 2016 hasta hoy Dahua ha registrado más de 800 patentes con su propia marca. Actualmente Dahua puede presumir de estar entre los 10 primeros líderes mundiales en el mundo de la seguridad. Este año Dahua fue premiado con el 2º puesto en el ranking "2019 TOP SECURITY 50".

Los productos de la marca Dahua vendidos por Setik SRL pueden ser entregados como productos OEM, es decir, productos que a todos los efectos son productos originales de Dahua, pero que tienen una apariencia estética diferente reservada para el mercado en línea (generalmente en términos de logotipo y embalaje). Esto no afecta en modo alguno a la garantía y a las características técnicas del producto, que es siempre genuino de Dahua, ni a las actualizaciones y la funcionalidad.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. es uno de los principales proveedores mundiales de soluciones de videovigilancia, con más de 13.000 empleados y 35 filiales activas en todo el mundo.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-06-24 15:40:21 [link_rewrite] => dahua [meta_title] => Los mejores productos Dahua: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Productos Dahua para la videovigilancia digital IP, HYBRIDA, HD-SDI, HDCVI, como cámaras, grabadoras, control de acceso, accesorios y videointercomunicadores wifi. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR


LIQUIDACION TOTAL ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

PFA13A-E | Waterproof Junction Box for Dome Cameras


Dahua

The Dahua PFA13A-E bracket is a compact aluminum junction box designed to simplify camera installation and protect connections. Its elegant design, compact size, and sturdy construction make this bracket ideal for both indoor and outdoor applications. It withstands extreme climate conditions from -40°C to +60°C and supports a load of up to 3 kg, ensuring practicality and durability.

Main specifications:

- Material: sturdy aluminum alloy

- Compact size: 96.7×37.2 mm

- Weather resistance from -40°C to +60°C

- Maximum load capacity: 3 kg

- White finish with G3/4” thread

Further details

Material:
The Dahua PFA13A-E bracket is made of high-quality aluminum alloy, a material that ensures strength, corrosion resistance, and durability. Lightweight yet durable, aluminum makes it ideal for professional installations both indoors and outdoors.
Operating temperature :
This junction box is designed to operate over a wide temperature range, from -40°C to +60°C, ensuring reliability even in extreme climatic conditions, both in very cold environments and under direct exposure to the sun.
Waterproof :
Thanks to its compact structure, sealed inputs and the use of silicone to ensure a seal, the bracket offers excellent weather resistance with an ideal outdoor rating, keeping electrical connections protected from water, dust and humidity up to 90%.
PFA13A-E junction box dimensions diagram

Technical data sheet

Model PFA13A-E
Characteristics
Material Aluminum
Dimensions (W x H x D) Ф96.7mmx37.2mm (Ф3.81”x1.46”)
Pipe thread G3/4''
Weight 0.17kg(0.37lb)
Load bearing 3.0kg(6.61lb)
Color White
Operating Temperature -40ºC ~60ºC(-40℉~140℉)
Humidity 0~90% RH
Applicable model Please see “Accessory Selection”
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
