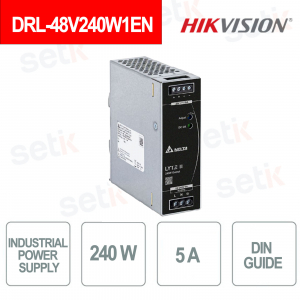

DIN RAIL INDUSTRIAL POWER SUPPLY - 48V 240W - HIKVISION

It offers a wide input voltage range (90-264V AC) , high efficiency and integrated protections for safe operation. Perfect for industrial environments, it withstands temperatures from -30°C to +70°C with cold start up to -40°C .
Quality product
Product details
- DIN Rail Industrial Power Supply - Hikvision
- Power: 240W
- Output voltage 48 VDC
- Rated current: 5A
- Input voltage: 90-264V AC
- Operating temperature: -30°C to +70°C (cold start up to -40°C)
- Dimensions: 123.6 x 40 x 117.2 mm
- Weight: 0.62 Kg
- Product excluded from warranty

Technical data sheet
| Model | DRL-48V240W1EN |
| OUTPUT | |
| DC-VOLTAGE | 48V DC |
| CONSTANT CURRENT REGIONNote.2 | 43.2-52.8V DC |
| RATED CURRENT(forBETypeonly) | 5 A |
| RATED POWER | 240W |
| RIPPLE & NOISE (max.) Note.3 | < 200mVpp @ 0°C to +70°C < 600mVpp @ -30°C to 0°C |
| VOLTAGE TOLERANCE Note.4 | ±1.0% |
| HOLD UP TIME (Typ.) | 20ms typ. @ 115Vac (100% load) 20ms typ. @ 230Vac (100% load) |
| ENVIRONMENT | |
| WORKING HUMIDITY | 5 to 95% RH (Non-Condensing |
| STORAGE TEMP., HUMIDITY | 40°C to +85°C |
| SAFETY & EMC | |
| SAFETY STANDARDS | IEC 62368-1, IEC 60950-1, IEC 61010-1 & -2-201 EN 62368-1, EN 61010-1 & -2-201 UL 62368-1 GB4943.1 TP TC 004/2011 K60950-1 (24V model only) In compliance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU |
| OTHER | |
| DIMENSION | 123.6 x 40 x 117.2 mm (4.87 x 1.57 x 4.61 inch) |
| PACKING | 0.62 kg (1.37 lb) |
