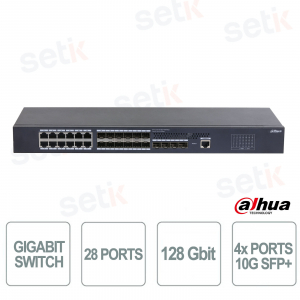

S5428-12GF12GT4XF | GIGABIT MANAGED SWITCH 28 PORTS - 4 PORTS 10G SFP


Dahua

The Dahua S5428-12GF12GT4XF managed switch with 28 L2+ ports and 10G uplink is designed to ensure high and reliable performance in enterprise and professional networks. Equipped with a high-performance switching engine, it ensures stable transmission even under heavy load, with easy management via a web interface, DoLynk Care cloud, and SNMP support. Advanced features such as VLAN, port isolation, link aggregation, and STP improve security, stability, and traffic balancing, making it ideal for SMBs, government agencies, schools, hotels, and corporate facilities.

Main specifications:

- 28 total ports: 12 RJ-45 Gigabit, 12 SFP, 4 SFP+ 10G

- Switching capacity: 128 Gbps and 95.232 Mpps

- VLAN, STP/RSTP/ERPS and port isolation support

- Web, DoLynk Care cloud and SNMP management

- Rugged design with rack or desktop mounting

Further details

Number of doors:
Equipped with 28 total ports (12 RJ-45 Gigabit, 12 SFP and 4 SFP+ 10G), it allows you to integrate different devices and support heavy traffic with maximum flexibility.
Spanning Tree Protocol (STP):
Ensures loop-free network paths, preventing broadcast storms and improving service stability, even in large environments.
10G Uplink :
The 4x 10Gbps SFP+ ports ensure smooth transmission of large volumes of data, ideal for applications requiring high speeds and low latency.
Cloud Management :
Manageable via the DoLynk Care platform, it allows real-time monitoring, immediate notifications and remote maintenance to simplify network administration.
Network Topology Management :
Thanks to LLDP support, it generates and visualizes the network topology, allowing you to quickly identify problems and optimize maintenance.
Performance :
With 128 Gbps switching capacity and 95.232 Mpps forwarding rate, it delivers high and reliable performance even under heavy loads.

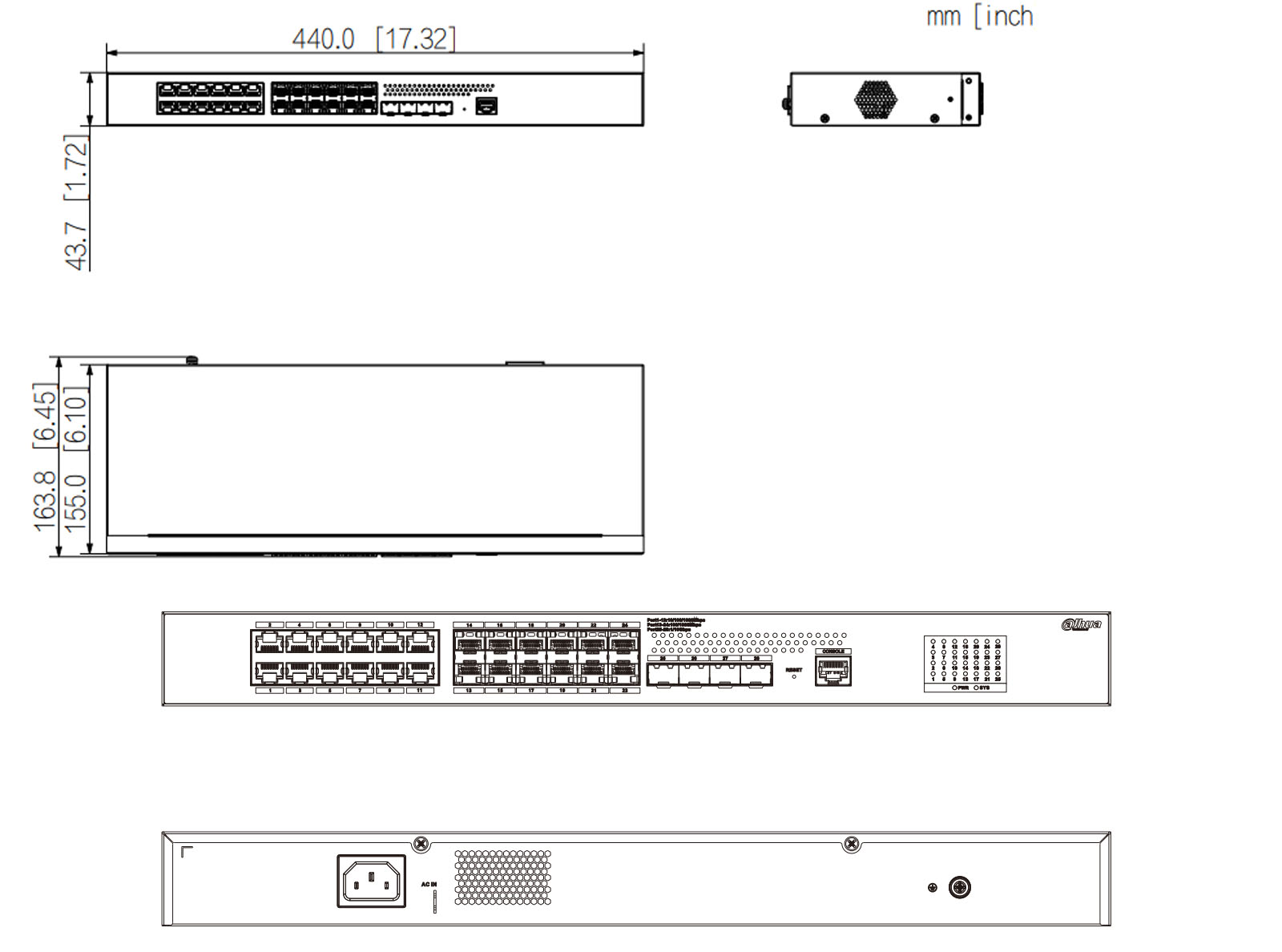

S5428-12GF12GT4XF dimensions

Technical data sheet

Model S5428-12GF12GT4XF
Basic
Layer

Layer 2

Switching Capacity

128 Gbps

Packet Forwarding Rate

95.232 Mpps

Description of Function Slots

Port 1-12: 12 × RJ-45 10/100/1000 Mbps
Port 13-24: 12 × SFP 100/1000 Mbps
Port 25-28: 4 × SFP+ 1/10 Gbps

Operating Humidity

–10 °C to +55 °C (+14 °F to +131 °F)

Operating Humidity

10%–90% (RH), non-condensing

Operating Temperature

–40 °C to +70 °C (-40 °F to +158 °F)

Storage Humidity

5%–95% (RH), non-condensing

Power Supply

Built-in power supply: 100–240 VAC, 50/60 Hz, 2 A

Power Consumption

Idling load: 18.8 W
Full load: 60 W

Statics Protection

Air discharge: 8kV
Contact discharge: 6kV

Lighting Protection

Common mode: 4kV
Differential mode: 2 kV

Net Weight

1.95 kg (4.30 lb)

Gross Weight

2.68 kg (5.91 lb)

Dimensions

440 mm × 164 mm × 44 mm (17.32" × 6.46" × 1.73") (L × W × H)

Packaging Dimensions

523 mm × 273 mm × 109 mm (20.59" × 10.75" × 4.29") (L × W × H)

Installation

Rack mount; desktop mount

Hardware

Debugging

1 × Console port

Reset Button

1

Performance

Packet Buffer Size

16 Mbit

Jumbo Frame

12288 Bytes

MAC Table Size

32K

Communication Standard

IEEE 802.3; IEEE 802.3u; IEEE 802.3x; IEEE 802.3ab; IEEE 802.3z; IEEE 802.3ad

VLAN Number

4094

VLAN Interface

10

Feature

Ethernet Loop Protection

STP/RSTP/ERPS

VLAN Function Port-based VLAN
Link Aggregation LACP
Static link aggregation
Dynamic link aggregation
Port Feature IEEE 802.3x flow control
Unknown unicast suppression
Multicast storm control
Broadcast storm control
IEEE 802.3x Flow Control Yes
Multicast IGMP Snooping
Reliability LLDP
Routing Static routing
DHCP Function DHCP Client
Security 802.1X
Port isolation
Radius
HTTPS
QoS/ACL SP/WRR queue scheduling
802.1p and DSCP priority mapping
Port speed limit
Equipment Management Cloud management
Web
SNMP V1/V2C/V3
NTP
Logs
Ping
General
Packing List

1 × User Manual;
1 × Legal and Regulatory Information;
1 × Warranty Card
1 × List of Hazardous Substances
1 × Power Cord;
1 × Rack-mounting Kit;

All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
