S5436-24GF8GT4XF - is an L2+ managed switch with 36 Gigabit ports and 4 10G SFP+ uplinks , designed for enterprise networks that require high performance and stability. Thanks to the support of STP/RSTP/ERPS , it avoids network loops and ensures business continuity, while the link aggregation function guarantees redundancy and load balancing. Performance is high with 144 Gbps of switching capacity and 107.136 Mpps of forwarding rate , ideal for intensive applications. Management is simplified via DoLynk Care cloud , web interface and SNMP, with support for Network Topology Management that allows you to view the network and intervene quickly. Robust and reliable, it operates in extreme conditions from -20 °C to +55 °C, making it the ideal choice for companies, schools, public institutions and hotels. Dahua

Technical Data Sheet

referencia : S5436-24GF8GT4XF

brand : Dahua

EAN: 6923172563378

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

La empresa asiática, fundada en 2001, debe su reputación a la excelente calidad de sus productos en términos de rendimiento y capacidad. La gama de productos de Dahua abarca desde los sistemas clásicos de CCTV hasta los sistemas de seguridad más complejos y articulados: no sólo la videovigilancia, sino también el control de acceso, los sistemas de videoportería, los productos de detección térmica y mucho más. La fiabilidad, la tecnología de punta y los precios competitivos que ofrece Dahua son sólo algunas de las razones por las que Setik siempre ha elegido distribuir la marca. Dahua es desde hace años un sólido punto de referencia en el mercado internacional de los circuitos cerrados de televisión, gracias a las enormes inversiones que cada año se dedican a la investigación y el desarrollo. Las cifras hablan por sí mismas: desde 2016 hasta hoy Dahua ha registrado más de 800 patentes con su propia marca. Actualmente Dahua puede presumir de estar entre los 10 primeros líderes mundiales en el mundo de la seguridad. Este año Dahua fue premiado con el 2º puesto en el ranking "2019 TOP SECURITY 50".

Los productos de la marca Dahua vendidos por Setik SRL pueden ser entregados como productos OEM, es decir, productos que a todos los efectos son productos originales de Dahua, pero que tienen una apariencia estética diferente reservada para el mercado en línea (generalmente en términos de logotipo y embalaje). Esto no afecta en modo alguno a la garantía y a las características técnicas del producto, que es siempre genuino de Dahua, ni a las actualizaciones y la funcionalidad.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. es uno de los principales proveedores mundiales de soluciones de videovigilancia, con más de 13.000 empleados y 35 filiales activas en todo el mundo.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-06-24 15:40:21 [link_rewrite] => dahua [meta_title] => Los mejores productos Dahua: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Productos Dahua para la videovigilancia digital IP, HYBRIDA, HD-SDI, HDCVI, como cámaras, grabadoras, control de acceso, accesorios y videointercomunicadores wifi. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR


LIQUIDACION TOTAL ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

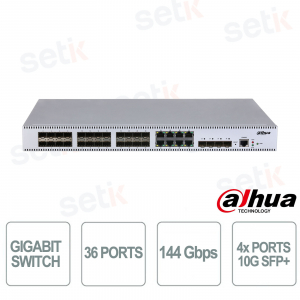

S5436-24GF8GT4XF | GIGABIT MANAGED SWITCH 36 PORTS - 4 PORTS 10G SFP


Dahua

The Dahua S5436-24GF8GT4XF is a 36-port L2+ managed switch with 4 10G SFP+ uplinks, designed for enterprise networks requiring high performance, security, and stability. Supporting STP/RSTP/ERPS, it prevents network loops and ensures business continuity, while management is simplified via DoLynk Care cloud, web interface, and SNMP. With a 144 Gbps switching capacity and advanced network topology management features, it ensures efficiency even in complex scenarios.

Main specifications:

- 36 Gigabit ports + 4 10G SFP+ uplinks

- STP/RSTP/ERPS support for stable networks

- 144 Gbps and 107 Mpps switching capacity

- DoLynk Care cloud, web and SNMP management

- Network Topology Management with LLDP

Further details

Number of doors:
The switch offers 36 total ports , divided into 24 100/1000 Mbps SFP , 8 Gigabit RJ-45 and 4 10G SFP+ uplinks , ensuring maximum flexibility and scalability for complex business networks.
Spanning Tree Protocol (STP):
It supports STP, RSTP and ERPS , protocols that eliminate network loops and prevent broadcast storms, ensuring stability, redundancy and business continuity even in high-traffic environments.
10G Uplink :
With 4 10 Gigabit SFP+ uplink ports , it enables ultra-high-speed connections to servers, data centers or network backbones, improving the capacity to manage data flows without bottlenecks.
Cloud Management :
Thanks to the DoLynk Care platform, the device can be managed remotely via the cloud, web interface and SNMP, simplifying network monitoring, maintenance and updating operations.
Network Topology Management :
It supports the LLDP protocol, which enables automatic generation of the network topology, making it possible to immediately identify anomalies and reducing troubleshooting times.
Performance :
With a switching capacity of 144 Gbps , a forwarding rate of 107.136 Mpps , 16 Mbit buffer and support for Jumbo Frames up to 12,288 bytes , the switch ensures high performance for large networks and advanced applications.

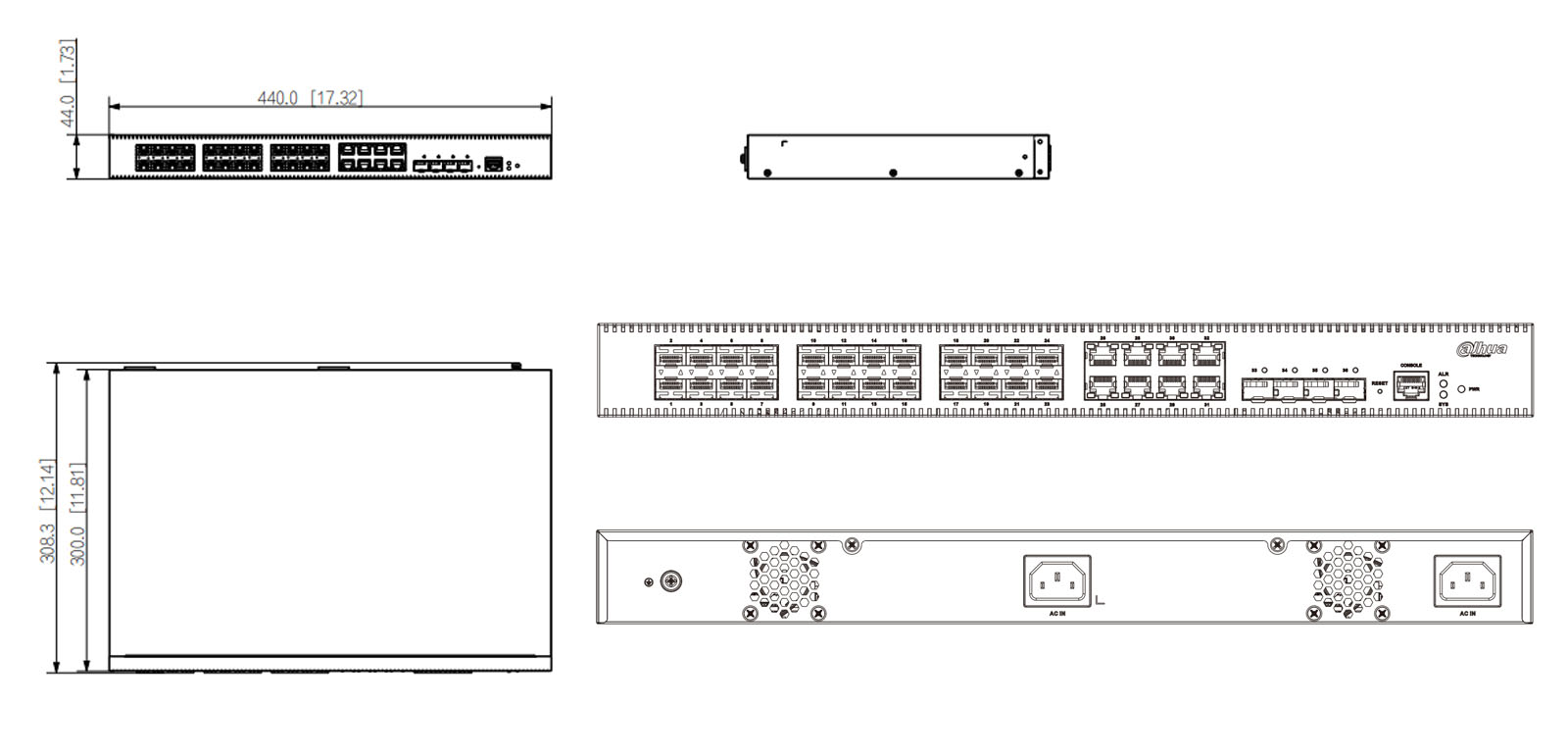

S5436-24GF8GT4XF dimensions

Technical data sheet

Model S5436-24GF8GT4XF
Basic
Layer

Layer 2

Switching Capacity

144 Gbps

Packet Forwarding Rate

107.136 Mpps

Description of Function Slots

Port 1-24: 24 × SFP 100/1000 Mbps
Port 25-32: 8 × RJ-45 10/100/1000 Mbps
Port 33-36: 4 × SFP+ 1/10 Gbps

Operating Humidity

–20 °C to +55 °C (–4 °F to +131 °F)

Operating Humidity

5%–95% (RH), non-condensing

Storage Humidity

5%–95% (RH), non-condensing

Power Supply

2 built-in power supplies: 100–240 VAC, 50/60 Hz, 0.8 A

Power Consumption

Idling load: 23.8 W
Full load: ≤ 100 W

Statics Protection

Air discharge: 8kV
Contact discharge: 6kV

Lighting Protection

Common mode: 4kV
Differential mode: 2 kV

Net Weight

3.8 kg (8.38 lb)

Gross Weight

5.3 kg (11.68 lb)

Dimensions

440 mm × 308.3 mm × 44.0 mm (17.32" × 12.14" × 1.73") (L × W × H)

Packaging Dimensions

528 mm × 412 mm × 112 mm (20.79" × 16.22" × 4.41") (L × W × H)

Installation

Rack mount; desktop mount

Hardware

Debugging

1 × Console port

Reset Button

1

Performance

Packet Buffer Size

16 Mbit

Jumbo Frame

12288 Bytes

MAC Table Size

32K

Communication Standard

IEEE 802.3; IEEE 802.3u; IEEE 802.3x; IEEE 802.3ab; IEEE 802.3z; IEEE 802.3ad

VLAN Number

4094

VLAN Interface

10

Feature

Ethernet Loop Protection

STP/RSTP/ERPS

VLAN Function Port-based VLAN
Link Aggregation LACP
Static link aggregation
Dynamic link aggregation
Port Feature IEEE 802.3x flow control
Unknown unicast suppression
Multicast storm control
Broadcast storm control
IEEE 802.3x Flow Control Yes
Multicast IGMP Snooping
Reliability LLDP
Routing Static routing
DHCP Function DHCP Client
Security 802.1X
Port isolation
Radius
HTTPS
QoS/ACL SP/WRR queue scheduling
802.1p and DSCP priority mapping
Port speed limit
Equipment Management Cloud management
Web
SNMP V1/V2C/V3
NTP
Logs
Ping
General
Packing List

1 × User Manual;
1 × Legal and Regulatory Information;
1 × Warranty Card
1 × List of Hazardous Substances
1 × Power Cord;
1 × Rack-mounting Kit;
