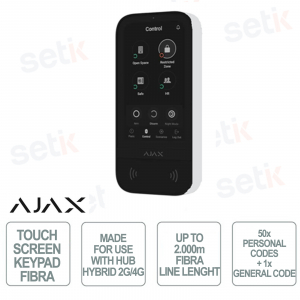

Ajax Superior Keypad TouchScreen Fiber - Wired Touch Screen Keyboard - White

Ajax Superior Keypad TouchScreen Fiber - Wired Touch Screen Keyboard - White

ANUNCIOS

AJAX FIBER | 143608.226.WH1 #143608 (ex. 81718.226.WH1) - Ajax Superior Keypad TouchScreen Fiber - Two-way communication, advanced anti-sabotage system, instant notifications , remotely configurable via app - Connection with 4-wire cable - Fiber cable length up to 2,000 meters - 5" IPS screen 480x854 px - 50 personal codes and 1 general code - Panic button - Encrypted communication - Anti-counterfeiting protection - white color.

AJAX FIBER SERIES | FOR CERTIFIED PROFESSIONALS ONLY:

The following products are part of a special line intended for professional projects .
To purchase and install these products, you must be certified or enrolled in a certification course . Find out more.

referencia : 143608.226.WH1

brand : Ajax Systems

EAN: 4823114079146

Manufacturer Object ( [id] => 31 [name] => Ajax Systems [description] =>

Establecido en 2011, Ajax Systemconstruye sistemas inalámbricos de incendio y alarma con la tecnología inalámbrica JEWELLER que le permite monitorear de manera segura todos los dispositivos de red conectados. Ajax System ofrece soluciones para el hogar, la oficina o las actividades comerciales, gestionables a través de la App, siempre actualizadas y compatibles con los sistemas iOS y Android. Los sistemas de alarma de Ajax System son fáciles de instalar, de hecho sólo toma 15 segundos conectar la unidad de control a los sensores. Además, pueden integrarse con las cámaras de vigilancia, tienen un margen de error casi nulo y, en caso de peligro, en menos de 150 milisegundos envían una notificación (sms, push o call).

[short_description] =>

Ajax SystemsAjax Systems


Los sistemas de alarma Ajax system utilizan la última tecnología inalámbrica que hace que todos los productos sean fiables y estén siempre conectados. Además de su excelente rendimiento, los sistemas de alarma Ajax se distinguen por su diseño moderno y elegante.

[id_address] => [date_add] => 2019-01-15 15:51:16 [date_upd] => 2025-06-11 12:47:32 [link_rewrite] => ajax-systems [meta_title] => Sistemas de incendio y alarma de última generación - Ajax System [meta_keywords] => sistemi allarme ajax,sicurezza ajax,allarmi ajax,ajax security system,ajax security,ajax system [meta_description] => I sistemi allarme Ajax system sono dispositivi wireless affidabili e innovativi, non producono falsi allarmi e si installano in 15 secondi. Scoprili su Setik.biz! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR


CARTEL GRATUITO DE TVCC×


Con todos >> KITS AJAX

LIQUIDACION TOTAL ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

Prodotto PRO

AJAX FIBER SERIES | FOR CERTIFIED PROFESSIONALS ONLY:
The following products are part of a special line intended for professional projects .
To purchase and install these products, you must be certified or enrolled in a certification course . Find out more.


Prodotto Ajax

143608.226.WH1 | AJAX SUPERIOR KEYPAD TOUCH SCREEN FIBER - WHITE

Keypad touch screen cover.jpg


AJAX SUPERIOR KEYPAD TOUCH SCREEN FIBER | AJAX FIBER WIRED KEYBOARD

|| COMPATIBLE WITH DEVICES:
  • HYBRID HUB (2G)
  • HYBRID HUB (4G)

143608.226.WH1 | Ajax Superior Keypad TouchScreen Fiber - Ajax Fiber Wired Keyboard


Main features:

- Device capable of controlling all devices, collecting their data, using communication via Ethernet and/or GPRS

- Two-Way Communication

- Advanced anti-sabotage system

- Block cipher with movable key

- Instant notifications

- Fiber cable length up to 2,000 meters away

Screen:

- Diagonal 5"

- IPS screen

- Resolution 480 × 854 px

- Capacitive Sensor

- Brightness configuration: automatically and manually

- Backlight lifespan: 30,000 hours

- Tamper alarm

- Anti-counterfeiting system

- Panic buttons: Panic, Fire and Emergency Help

- Control: codes, key tags, pass cards and smartphones (Bluetooth)

- Contactless access: DESFire® EV1, EV2 and ISO 14443-А (13.56 MHz)

- Up to 50 personal codes

- 1 general code

- Protection against forced access codes

- Fiber line power supply 7−30 V⎓, up to 54.6 mA

- Spare batteries: 2 × LTO AA

- External power supply 10.5–14 V⎓, 0.5 A

- Color: white

- Net weight 327 g

- Dimensions: 171 × 82 × 28 mm

- Operating temperatures: from −10 °C to +40 °C

- Maximum permissible humidity: up to 75%

143608.226.WH1 | Ajax Superior Keypad TouchScreen Fiber - Ajax Fiber Wired Keyboard


FIBER KEYBOARD

Equipped with functional button:

Panic button

To activate an alarm.

Silencing fire alarms

To silence alarms from interconnected fire detectors.



Protection against access code brute-force attempts

KeyPad Fibra switches off for 3-180 minutes if an incorrect code is entered 3 times / 1 minute.
The lockout time is set by a PRO or a user with administrator credentials in the Ajax app.


Connection with fiber line

Up to 2000 meters

44412.07 fiber connection.jpg


Remote configuration and management



Two colors:

touchscreen keypad colors.jpg


Communication through steel and concrete

FIBER:

Fiber communication technology allows for cabling lines up to 2 km long. Eight lines in a system managed by a Hybrid Hub minimize the risk of failure. Even a completely down line leaves the security system with 87% uptime. With wireless sensors, this percentage increases even further.

143608.226.WH1 | Ajax Superior Keypad TouchScreen Fiber - Ajax Fiber Wired Keyboard

Brochure not available.


Ajax Systems

WHO IS AJAX?

Founded in 2011, Ajax creates wireless alarm and fire systems with JEWELLER wireless technology, allowing you to securely monitor all connected network devices. Ajax offers solutions for the home, office, or commercial business, managed via an app that's always up-to-date and compatible with iOS and Android systems. Ajax devices are easy to install; it takes just 15 seconds to connect the control panel to the sensors. They can also be integrated with surveillance cameras, have a virtually zero error rate, and, in the event of danger, send a notification (text message, push notification, or call) in less than 150 milliseconds.

Ajax alarm systems use cutting-edge wireless technology, making all products reliable and always connected. In addition to excellent performance, Ajax systems stand out for their modern and elegant design.

WHY CHOOSE AJAX ALARMS?

Ajax is synonymous with quality and ease of use.
All Ajax products use the latest generation wireless technology and can be programmed directly from your smartphone or PC.

Thanks to the User and Pro applications , it is possible to have complete virtual control of the entire alarm system, 24 hours a day.

Here's the real difference compared to other competitors!


With just a few simple taps , you can:

- Arm/Disarm the alarm

- Get instant notifications

- Get detailed information about the device status

- Perform remote testing and configurations

- Automatic updates

Gestione dell'impianto d'allarme da remoto con APP USER E PRO di AjaxAjax Security System Applicazione Mobile

All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
