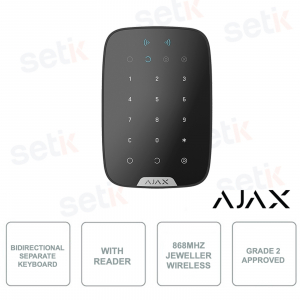

AJAX KeyPad Plus - Two-Way Wireless Touch Keypad with Built-in Contactless Card and Tag Reader

AJAX KeyPad Plus - Two-Way Wireless Touch Keypad with Built-in Contactless Card and Tag Reader


38252.83.BL1 - Ajax Independent Two-Way Black Keypad - With Contactless Reader for Cards and Tags - 868MHz Wireless Jeweler, Operating Range up to 1700m from the HUB in Open Spaces - Anti-tamper - Battery Operated - Suitable for Indoor Environments - Grade 2 Certified - Black Color. KeyPad #38252

referencia : 38252.83.BL1

brand : Ajax Systems

EAN: 4823114015403

Disponibilità: 10

Manufacturer Object ( [id] => 31 [name] => Ajax Systems [description] =>

Establecido en 2011, Ajax Systemconstruye sistemas inalámbricos de incendio y alarma con la tecnología inalámbrica JEWELLER que le permite monitorear de manera segura todos los dispositivos de red conectados. Ajax System ofrece soluciones para el hogar, la oficina o las actividades comerciales, gestionables a través de la App, siempre actualizadas y compatibles con los sistemas iOS y Android. Los sistemas de alarma de Ajax System son fáciles de instalar, de hecho sólo toma 15 segundos conectar la unidad de control a los sensores. Además, pueden integrarse con las cámaras de vigilancia, tienen un margen de error casi nulo y, en caso de peligro, en menos de 150 milisegundos envían una notificación (sms, push o call).

[short_description] =>

Ajax SystemsAjax Systems


Los sistemas de alarma Ajax system utilizan la última tecnología inalámbrica que hace que todos los productos sean fiables y estén siempre conectados. Además de su excelente rendimiento, los sistemas de alarma Ajax se distinguen por su diseño moderno y elegante.

[id_address] => [date_add] => 2019-01-15 15:51:16 [date_upd] => 2025-06-11 12:47:32 [link_rewrite] => ajax-systems [meta_title] => Sistemas de incendio y alarma de última generación - Ajax System [meta_keywords] => sistemi allarme ajax,sicurezza ajax,allarmi ajax,ajax security system,ajax security,ajax system [meta_description] => I sistemi allarme Ajax system sono dispositivi wireless affidabili e innovativi, non producono falsi allarmi e si installano in 15 secondi. Scoprili su Setik.biz! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR


CARTEL GRATUITO DE TVCC×


Con todos >> KITS AJAX

LIQUIDACION TOTAL ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

Premi Ajax Awards

38252.83.BL1 | BLACK KEYPAD - 868MHZ WIRELESS KEYPAD - DESFire® CONTACTLESS READER FOR AJAX PASS CARDS AND AJAX TAG KEYRINGS



Prodotto Ajax





INDEPENDENT BI-DIRECTIONAL KEYPAD - WIRELESS 868MHz JEWELLER - WITH DESFire® CONTACTLESS READER FOR AJAX CARDS AND TAGS

Independent keypad with CONTACTLESS DESFire® reader for cards/tags - DESFire® Technology Mifare DESFire EV1, EV2 (ISO14443-? 13.56 MHz) - Grade 2 certified - Wireless Jeweller 868Mhz - Armed, partially armed, disarmed and emergency - Powered by 4 AA 1.5 V batteries - Internal antenna with range up to 1,700m in free space - Allows total/partial arming/disarming via code, tags and cards - Anti-tamper system - For indoor use - Black color - Includes support - Product made of ABS plastic.


Main features:

- Standalone 868MHz wireless two-way keypad - Ajax
- 868MHz Jeweler wireless communication protocol
- Useful for arming, partially arming, disarming and emergency
- DESFire® contactless reader for cards and tags (Ajax Tag keyfobs and Ajax Pass cards)
- DESFire® technology : Complies with the international standard ISO 14443 and combines full 128-bit encryption with anti-replay protection. This technology is also used in European capital transportation systems and NASA access systems.
- Grade 2 Certificate
- Power supply 4 batteries (Estimated life 3.5 years, with reader activated; 4.5 years with reader deactivated)
- Compatible with Ajax Hub Plus, Hub 2, Hub 2 Plus and ReX (FW 2.11 or higher)
- Internal antenna with range up to 1,700m in open field
- System status LED indicator
- For internal use
- Operating temperature: -10º C ~ 40º C
- Dimensions: 165x113x20mm
- Weight: 267g
- Color: Black
- Material: ABS plastic
- 3 year warranty

I sistemi ajax sono muniti di batterie?

ARE BATTERIES INCLUDED?

All alarm products in the Ajax range are already equipped with batteries!
Out of the box they are ready to use!

Product details

Ajax - perché scegliere gli allarmi Ajax

WHY CHOOSE AJAX ALARMS?

Ajax is synonymous with quality and ease of use.
All Ajax products use the latest generation wireless technology and can be programmed directly from your smartphone or PC.

Thanks to the User and Pro applications , it is possible to have complete virtual control of the entire alarm system, 24 hours a day.

Here's the real difference compared to other competitors!

With just a few simple taps , you can:

- Arm/Disarm the alarm

- Get instant notifications

- Get detailed information about the device status

- Perform remote testing and configurations

- Automatic updates

Gestione dell'impianto d'allarme da remoto con APP USER E PRO di AjaxAjax Security System Applicazione Mobile


Ajax Keypad - Wireless keypad with built-in contactless reader for Ajax cards and tags | 38252.83.BL1 #38252

- Two-Way Wireless Keypad - Ajax

- Operation up to 1,700 meters from the HUB, in open space

- Arming, disarming, partially armed and emergency

- System status display via LED

- Jeweller 868MHz Wireless communication protocol

- Suitable for indoor environments

- Power supply: 4 AAA batteries

- Battery life up to 2 years

- Operating temperature: -10°? to +40°?

- Operating humidity: up to 80%

- Color: Black

- Dimensions: 165 x 113 x 20 mm

- Weight: 267g

- Material: ABS plastic

Technical data sheet

Security level Grade 2
Functions Arming, disarming, partially armed and emergency
Frequency 868 MHz Jeweler
Transmission distance ≤ 1700 m in open space
DESFire® Technology Mifare DESFire® EV1, EV2 (ISO14443-? 13.56 MHz)
DESFire® Reading Ajax Tag Keychains and Ajax Pass Cards
Compatibility Compatible with Ajax Hub Plus, Hub 2, Hub 2 Plus and ReX (FW 2.11 or higher)
Drums 4 AA (FR6) 1.5V Lithium batteries
Estimated duration:
3.5 years (reader activated) / 4.5 years (reader deactivated)
Cover material ABS plastic
Operating temp. -10º C ~ 40º C
Dimensions 165 x 113 x 20 mm
Weight 267 g

Further details

Not available

Download

Nopn available for download.


WHO IS AJAX?

Ajax Systems

Founded in 2011, Ajax creates wireless alarm and fire systems with JEWELER wireless technology, allowing you to securely monitor all connected network devices. Ajax offers solutions for the home, office, or commercial business, managed via an app that's always up-to-date and compatible with iOS and Android systems. Ajax devices are easy to install—it takes just 15 seconds to connect the control panel to the sensors. They can also be integrated with surveillance cameras, have a virtually zero error rate, and, in the event of danger, send a notification (text message, push notification, or call) in less than 150 milliseconds.

Ajax alarm systems use cutting-edge wireless technology, making all products reliable and always connected. In addition to excellent performance, Ajax systems stand out for their modern and elegant design.
