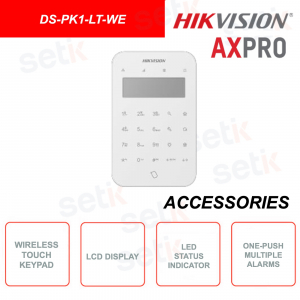

DS-PK1-LT-WE - Hikvision - Wifi Keypad Touch Internal Alarm Keypad. Two-way wireless communication at 868 MHz. LED status indicators, integrated buzzer. Integrated RFID reader for quick arming/disarming of the system via tag. One-push button for medical, fire and panic alarm. Configurable and manageable remotely via App. Powered by 4 CR123 batteries. Ready for wall mounting. White color.

DS-PK1-LT-WE | HIKVISION AXPRO HUB 868MHZ WIRELESS RADIO ALARM LED KEYBOARD - LCD DISPLAY - LED INDICATOR
This indoor Wi-Fi alarm keypad is fully compatible with 868 MHz alarm control panels. Useful for system control and arming/disarming operations. Integrated RFID reader for quick and easy management via proximity tags. Event and alarm reporting via LED indicators and buzzer. One-push button for medical, panic, or fire emergencies. Touch Key keypad. White color. Ideal for wall mounting. Powered by 4 CR123 batteries .
Main features
Documentation: Brochure |
Technical data sheet
| DS-PK1-LT-WE | |
|
Hardware features |
|
|
Tag reader built in |
Supported |
|
Serial port |
3 |
|
Tamper-Proof |
Supported, front and rear |
|
Buzzer |
Supported |
|
Power switch |
Power on/off |
|
Electrical characteristics |
|
|
Battery type |
Four CR123 batteries |
|
Operation humidity |
10% to 90% |
|
Operation temperature |
-10 °C to 55 °C |
|
Battery life span |
Standby time more than two years |
|
Power consumption |
Quiescent current: 80 uA Max current: 300 mA Voltage: 3 V |
|
Wireless transmission |
|
|
RF frequency |
868 MHz |
|
RF modulation |
2GFSK |
|
RF distance |
1200 m (open area) |
|
Wireless technology |
Tri-X Wireless Technology |
|
Display |
|
|
Numeric key |
Number key: 0 to 9 Function key: *, #, Query, Away arm, Stay arm, Disarm, Output, Project, Right, Left |
|
LED indicator |
Fault(orange), Enrollment/Signal (red/green), Arm(blue), Disarm(green), Alarm (red) |
|
General |
|
|
Installation method |
Wall mounting |
|
Dimension(W×H×D) |
174.63mm × 109.62mm × 25.25mm |
|
Weight |
With batteries: 348 g Without batteries: 282 g |
|
Color |
White |
|
HIKVISION AXPRO ALARMS VS AJAX ALARMS. Read our blog post ! |
AXPRO SYSTEM - BEYOND SAFETYAXPro is the new intelligent and professional wireless system with latest-generation "Tri-X" radio technology. It is a complete solution, supports Video Intruder Verification technology and is versatile as it can be integrated with other security systems such as video surveillance, video intercoms and access control. It also supports metadata from AcuSense devices and Heat Pro thermal cameras. AXPro boasts a simple, intuitive programming interface suitable for both professionals and end users.
TRI-X & CAM-X Wireless TechnologyTRI-X is a proprietary radio protocol that ensures greater security and simplicity in communication. It allows you to pair and program the system devices via the HikProConnect APP , monitoring their components and their status with real-time alerts. The Tri-X and Cam-X dual frequency and multi-channel Frequency Hopping technology provide immunity to interference, long-distance communication up to 2,000m and long device autonomy [up to 6 years].
|
