58454.148.BL1 | WIRELESS TOUCH SCREEN KEYBOARD THAT SUPPORTS SMARTPHONE, PASS, TAGS, AND CODES AUTHENTICATION

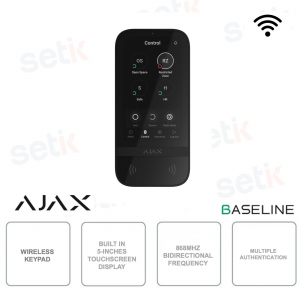

The Ajax KeyPad TouchScreen Jeweller, 58454.148.BL1, black is a 5" touch keypad designed for intuitive and advanced control of security systems, combining contactless authentication, management via smartphone and codes , along with an advanced graphical interface that ensures immediate use and operational precision. Jeweller & Wings communication ensures encrypted radio connections up to 1,700 m, while sabotage protection with tamper and communication loss detection safeguards the system from tampering attempts. Powered by AA batteries for up to 1.5 years and compatible with external power supply, the keypad offers continuous reliability and easy installation via SmartBracket .
Main specifications:
- 5" IPS touch display with intuitive interface and updated event logs
- Advanced authentication: Pass/Tag, BLE smartphone and codes
- Jeweller & Wings communication with encryption and regular polling
- Tamper protection and spoofing prevention
- Integrated emergency functions: panic, fire and auxiliary alert
- AA battery power for up to 1.5 years with external power option
Further details
✅ Jeweler Communication:
Jeweller radio technology ensures secure and stable communication between the keyboard and the hub up to 1,700 m in open space, using advanced encryption and regular polling to constantly monitor device status, ensuring fast, reliable and interference-resistant system control.
✅ Wings Communication:
Wings communication integrates a dedicated channel for rapid data transmission, improving event synchronization and real-time notifications. This technology ensures that critical information, such as status changes or alarms, reaches the central system immediately with maximum accuracy and operational continuity.
✅ Screen:
The 5" capacitive IPS display offers a bright and intuitive interface, with high resolution (480 × 854 px) that allows a clear view of system status, event logs and notifications. Automatic backlight adjustment ensures optimal readability in any environment, improving the user experience and management speed.
✅ Main features :
The device supports authentication via Pass/Tag, Bluetooth Low Energy, codes, and smartphones, allowing for quick, multi-level access. It includes group management, quick controls for automatic scenarios, audible and LED indications for doors, delays, and alarms, as well as auto-locking and malfunction notifications, ensuring comprehensive and intelligent security management.
✅ Anti-sabotage protection:
The KeyPad TouchScreen Jeweler features a tamper system that immediately detects any attempt to disassemble or open the device, with additional protections such as anti-spoofing authentication and hub communication loss detection. This level of security prevents fraudulent access and protects the integrity of the entire system.
✅ Power supply:
The device is powered by six pre-installed AA batteries with up to 1.5 years of battery life, ensuring continuous, wireless operation. An external power supply option is also available to act as a backup and allow for over-the-air firmware updates, ensuring consistent performance even under heavy use or environmental changes.
Technical data sheet
| 58454.148.BL1 | |
| Communication | |
| Jeweler communication technology | Proprietary wireless communication technology to transmit commands, alarms, and events. Key features:
|
| Radio frequency bands | 866.0 - 866.5 MHz 868.0 - 868.6 MHz 868.7 - 869.2 MHz 905.0 - 926.5 MHz 915.85 - 926.5 MHz 921.0 - 922.0 MHz Depence on the sales reaction |
| Maximum effective radiated power (ERP) | up to 20 mW Automatic power control to reduce power consumption and radio interference. |
| Radio signal modulation | GFSK |
| Radio signal range | Up to 1,700 m up to 5,600 ft Between the detector and a hub (or radio signal range extender) in an open space. |
| Encrypted radio communication | All the data stored and transmitted are protected by block encryption featuring a dynamic key. |
| Frequency hopping | Radio communication uses frequency hopping to prevent interception and jamming. |
| Wings communication technology | Proprietary wireless communication technology for transmitting the list of the groups, rooms and detectors to form the list of malfunctions. Key features:
|
| Radio frequency bands | 866.0 - 866.6 MHz |
| Radio signal range | Up to 1,700 m up to 5,600 ft Between the detector and a hub (or radio signal range extender) in an open space. |
| Encrypted radio communication | All the data stored and transmitted are protected by block encryption featuring a dynamic key. |
| Frequency hopping | Radio communication uses frequency hopping to prevent interception and jamming. |
| Display | |
| Diagonal | 5" |
| Matrix type | IPS |
| Resolution | 480 × 854 px |
| Sensor | capacitive |
| Brightness settings |
|
| Backlight lifetime | 30,000 hours Guaranteed lifetime backlight when the Always Active Display toggle is enabled. It can be adjusted in Ajax apps and activates only when external power is connected. |
| User interface |
|
| Key features | |
| Panic buttons |
|
| Control |
|
| Contactless access | DESFire® EV1, EV2 ISO14443-A (13.56 MHz) |
| Access codes | up to 200 personal codes One code for each user. The number of personal access codes depends on the hub model 1 keypad code One code per KeyPad |
| Duress codes | up to 200 personal codes One code for each user. The number of personal access codes depends on the hub model 1 keypad code One code per KeyPad |
| Codes for unregistered people | up to 99 personal codes For people who are not registered in the system. The number of such codes depends on the hub model |
| Arming without entering a code | The enabled feature allows the user to arm the system without entering a code or presenting the access device. |
| Group management | Changing the security mode of the groups to which the user has access from the keypad's display. |
| Scenarios management | A separate keypad tab contains up to 6 buttons, and each one can control one automation device or a group of devices. |
| Indication of malfunctions and security mode |
|
| Fire alarm muting | Turns off the fire detectors alarm, including the interconnected alarm. |
| User pre-authorization | When the feature is enabled, viewing the current system status and control screen is unavailable. For access, the user must pre-authorize: enter a code or present a personal access device to the keypad. |
| Contactless authorization with a smartphone | A smartphone with the installed Ajax app and Bluetooth Low Energy (BLE) support can be used instead of Tag or Pass to authorize a user. BLE is a radio protocol with low power consumption. The keypad supports Android and iOS smartphones with BLE 4.2 and higher. |
| Auto screen wakeup | The keypad wakes up automatically when approaching it. The approaching distance can be adjusted in the app. |
| Remote firmware update | When a new firmware is available, an admin or PRO with the rights to configure the system can run the update in Ajax apps. The keypad must be connected to an external power supply to update the firmware. |
| ACE Type | type B |
| Recommendations | The device is designed for indoor use only. Please note that the keypad must be connected to an external power supply to update the firmware and keep the screen always active. |
| Sabotage protection | |
| Unauthorized access auto-lock | The keypad locks if an incorrect code is entered or unverified access devices are used more than 3 times in a row within 1 minute. The lock time is adjusted by PRO or user with admin rights in the Ajax app. |
| Tamper alarm | Notifications on attempts to detach the device from the surface or remove it from the mounting panel. |
| Holding screw | To secure the keypad on SmartBracket. |
| Protection against spoofing | device authentication |
| Communication loss detection | after 36 s Detection time depends on the Jeweler or Jeweller/Fibra settings. |
| Power Supply | |
| Battery | 6 × AAA Pre-installed. |
| Type | Type C |
| Calculated battery life | up to 1.5 years With default settings and up to 4 interactions with a keypad per day. |
| Keypad's operating voltage range | 10.5–14 V⎓, up to 0.4 A The batteries serve as a backup when the external power supply is connected. |
| Keypad's nominal operating voltage | 12 V⎓ |
| Quiescent device's current consumption at nominal voltage | 46 mA |
| Maximum device's current consumption at nominal voltage | 1.5 mA |
| Full capacity | 2,650 mAh |
| Low battery voltage | 6.6 V⎓ |
| Low battery recovery voltage | 8.1 V⎓ |
| End-of-life battery voltage | 4.92 V⎓ Device is switched off. |
| End-of-life battery capacity | 350 mAh |
| Enclosure | |
| Color | Black |
| Dimension | 172 × 82 × 26 mm 6.77″ × 3.23″ × 1.02″ |
| Weight | 325 g 11.46 oz |
| Operating temperature range | from −10 °C to +40 °C from 14 °F to 104 °F |
| Operating humidity | up to 75% |
| Complete set | KeyPad TouchScreen Jeweler SmartBracket mounting panel 6 × ААА battery (pre-installed) Installation kit Quick start guide |
| Warranty | 24 months |
