143600.12.BL1 #143600 (ex. 44400.12.BL1) | Ajax Superior KeyPad Fibra black is an Ajax wired keypad designed for secure and intuitive control of security systems, thanks to advanced management via multiple codes for registered and unregistered users. It uses Fibre technology with encrypted communication up to 2,000 m , ensuring a stable and reliable connection. It integrates anti-sabotage protection with tamper, duress code and anti-tampering , ensuring high security standards. The touch design with LED indications allows for simple and immediate use. It supports automation scenarios and a panic function for complete system management. Ajax

Technical Data Sheet

referencia : 143600.12.BL1

brand : Ajax Systems

EAN: 4823114020094

Manufacturer Object ( [id] => 31 [name] => Ajax Systems [description] =>

Establecido en 2011, Ajax Systemconstruye sistemas inalámbricos de incendio y alarma con la tecnología inalámbrica JEWELLER que le permite monitorear de manera segura todos los dispositivos de red conectados. Ajax System ofrece soluciones para el hogar, la oficina o las actividades comerciales, gestionables a través de la App, siempre actualizadas y compatibles con los sistemas iOS y Android. Los sistemas de alarma de Ajax System son fáciles de instalar, de hecho sólo toma 15 segundos conectar la unidad de control a los sensores. Además, pueden integrarse con las cámaras de vigilancia, tienen un margen de error casi nulo y, en caso de peligro, en menos de 150 milisegundos envían una notificación (sms, push o call).

[short_description] =>

Ajax SystemsAjax Systems


Los sistemas de alarma Ajax system utilizan la última tecnología inalámbrica que hace que todos los productos sean fiables y estén siempre conectados. Además de su excelente rendimiento, los sistemas de alarma Ajax se distinguen por su diseño moderno y elegante.

[id_address] => [date_add] => 2019-01-15 15:51:16 [date_upd] => 2026-03-03 17:54:49 [link_rewrite] => ajax-systems [meta_title] => Sistemas de incendio y alarma de última generación - Ajax System [meta_keywords] => sistemi allarme ajax,sicurezza ajax,allarmi ajax,ajax security system,ajax security,ajax system [meta_description] => I sistemi allarme Ajax system sono dispositivi wireless affidabili e innovativi, non producono falsi allarmi e si installano in 15 secondi. Scoprili su Setik.biz! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

CARTEL GRATUITO DE TVCC×

Con todos >> KITS AJAX

143600.12.BL1 | WIRED TOUCH KEYBOARD

Ajax

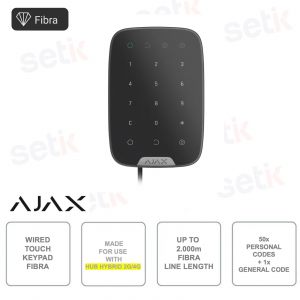

The Superior KeyPad Fibra, 143600.12.BL1 (ex. 44400.12.BL1), black, is a wired Ajax keypad designed for secure and intuitive control of security systems, thanks to advanced management via multiple codes for registered and unregistered users. Fibra technology with encrypted communication up to 2,000 m ensures stable and reliable connection even in professional settings. It integrates anti-sabotage protection with tamper, duress code, and panic function for complete security. The touch design with LED indicators ensures simple and immediate use. It supports automation scenarios and remote management via the Ajax app, making it ideal for advanced systems.

Main specifications:

- Fiber technology with encrypted communication up to 2,000 m

- Multiple user code management and advanced access

- Anti-sabotage protection with tamper and duress code

- Integrated panic function for emergencies

- Support for automation and remote control scenarios

- Quick installation with configuration via Ajax app

Further details

✅ Compatibility:
Designed for Ajax wired systems, the device is compatible with Ajax Fibra hubs and LineSupply modules , ensuring full integration and centralized management via the app for professional and scalable installations.
✅ Fiber Communication:
Wired fiber technology with encrypted communication , offering ranges of up to 2,000 meters , high stability and data protection, ideal for high-security environments and structured systems.
✅ Main features :
Keypad with advanced multiple code management for registered and unregistered users, support for automation scenarios, LED status indications and full control of the Ajax security system.
✅ Anti-sabotage protection:
It integrates anti-tampering , protection against unauthorized access attempts, duress code and panic function, guaranteeing maximum operational safety.
✅ Power supply:
Powered directly via Fiber line (5–26 V) with low energy consumption, ensuring operational continuity and constant reliability without the need for frequent batteries.

Technical data sheet

143600.12.BL1
Compatibility
Control panels Hybrid Hub (2G)
Hybrid Hub (4G)
Communication
Fiber communication technology Proprietary wired communication technology. Fiber combines the reliability of wires with the freedom of radio connection.
Key features:
  • Two-way communication.
  • Advanced anti-sabotage.
  • Block encryption featuring a dynamic key.
  • Instant notifications.
  • Remote configuration via the Ajax apps.
Line connection 4-core cable
Connection Superior KeyPad TouchScreen Fibra can be installed after a hub, detector, siren, or other keypad.
Radio signal range Up to 2,000 m
up to 6,500 ft
Between the detector and a hub (or radio signal range extender) in an open space.
Encrypted radio communication All stored and transmitted data are protected by block encryption featuring a dynamic key.
Key features
Sensor type Capacitive
Security mode indication Only when Superior KeyPad Fibra is active.
Duress codes up to 50 personal codes
One for each user.
1 general code
One for Superior KeyPad Fiber
Functional button Panic button
To activate an alarm.
Mute fire alarms
To mute interconnected fire detectors alarms
Codes up to 50 personal codes
One for each user.
1 general code
One for Superior KeyPad Fiber
Recommendations Device is designed for indoor use only
Sabotage protection
Code guessing protection Superior KeyPad Fibra locks for 3-180 minutes if an incorrect code is entered more than 3 times in a row within 1 minute. The lock time is adjusted by PRO or user with admin rights in the Ajax app.
Tamper alarm Alerts of attempts to detach the detector from the surface or remove the mounting panel.
Holding screw To secure the keypad on SmartBracket.
Protection against spoofing device authentication
Power Supply
Fiber line 5−30 V⎓, up to 230 mW
The keypad is powered by the control panel.
Enclosure
Color Black
Dimension 150 × 103 × 19 mm
5.90″ × 4.05″ × 0.75″
Weight 148 g
5.22 oz
Operating temperature range from −10 °C to +40 °C
from 14 °F to 104 °F
Operating humidity up to 75%
Protection class IP50
Complete set Superior KeyPad Fiber
SmartBracket mounting panel
Installation kit
Quick start guide
Warranty 24 months
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
