VTO6531F-S2 | IP EXTERNAL STATION WITH KEYBOARD

Dahua

The Dahua VTO6531F-S2 video intercom is an advanced solution for access control in residential and business settings, ideal for condominiums, offices, and housing complexes. Equipped with a 4.3-inch display and 2MP dual-lens HD camera, it offers rapid facial recognition with 99.9% accuracy and a detection speed of 0.2 seconds up to 2 meters away. It supports multiple unlocking methods, including facial recognition, password, RFID card, and QR code. Access management is simple and comprehensive, thanks to the capacity to store up to 40,000 users and 20,000 faces. The product also features a robust IP65 structure, PoE compatibility, and remote management via app, internal monitor, or software, ensuring maximum security in any weather conditions .

Main specifications:

- 4.3” high-resolution display

- 99.9% facial recognition up to 2 meters

- Up to 40,000 users and 20,000 faces

- Unlock with fingerprint, card, password and QR code

- Remote control via app, standard PoE, IP65

Further details

✅ 4.3-inch high-definition display:
The video intercom integrates a 4.3” LCD screen with 800×480 pixel resolution, perfect for viewing real-time videos and notifications clearly and sharply even from a distance.
✅ Dual 2MP cameras for detailed images :
Thanks to the dual camera with a 1/2.8” 2 Megapixel CMOS sensor, the device guarantees high image quality, wide-angle vision up to 110° and excellent performance in low light conditions thanks to the white light illuminators.
✅ Advanced multi-function support :
The VTO6531F-S2 is designed to support 40,000 users, up to 20,000 registered faces, and 20,000 RFID cards. Compatible with internal monitors, apps, DSS software, and SmartPSS, it offers complete remote management.
✅ Facial recognition with 99.9% accuracy:
Built-in facial recognition detects faces from 0.3-2 meters away with an identification speed of 0.2 seconds, ensuring maximum security with anti-spoofing function against photos and videos.
✅ PoE standard for simplified power supply:
Thanks to standard PoE power, the device can be easily powered and connected to the network using a single cable, simplifying installation and reducing cabling costs. Complies with the IEEE 802.3.at standard.

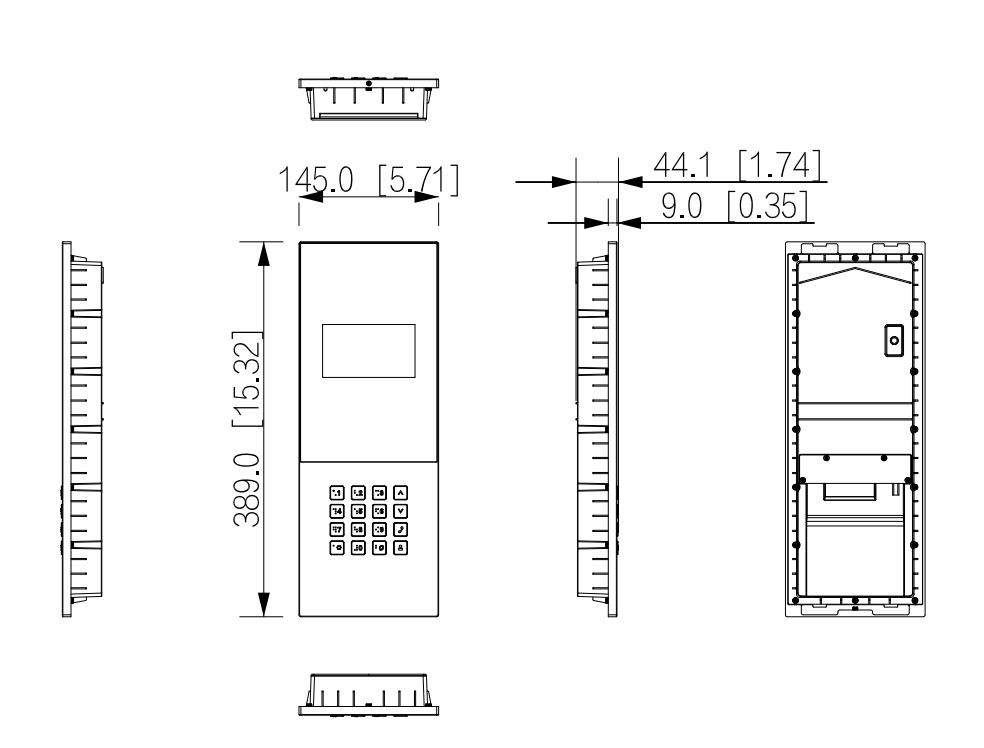

VTO6531F-S2 dimensions

Technical data sheet

Model VTO6531F-S2
System
Main Processor Embedded Processor
Operating System Embedded Linux OS
Button Type Mechanical
Interoperability CGI;ONVIF
Network Protocol FTP;RTMP;HTTP/HTTPS;DNS;RTSP;SSH;ONVIF;SIP;RTP
Basic
Screen Type Non-touchscreen
Display Screen 4.3-inch display screen
Screen Resolution

800 (H) × 480 (V)
Room

1/2.8" 2MP CMOS high-definition, low illumination, dual cameras
Field of View H: 95°; V: 50°; D: 110°
WDR 120 dB
Noise Reduction 3D NR
Video Compression H.264; H.265
Video Resolution Main stream: 720P/D1/WVGA;
Sub stream: 1080P/720P/D1/WVGA/CIF/QVGA
Video Frame Rate 25 fps
Video Bit Rate 1,024 kbps–8,192 kbps
Light Compensation Auto white light
Audio Compression G.711a; G.711u; PCM
Audio Input 1 channel
Audio Output Built-in speaker
Audio Mode Two-way audio
Audio Enhancement Echo suppression/digital noise reduction
Audio Bit Rate 16 kHz, 16 bit
Function
Communication Mode Full digital
Verification Method Remote;Face Recognition;Card;Password
Auto Snapshot Yes
Information Release Receive and view text information released by the management center.
Leave Videos Yes (SD card inserted in VTH is needed)
Web Configuration Yes
Auto Registration Yes
RFID
Card Type IC card
Performance
Card Reading Distance 0 cm–5 cm (IC card)
Issue Card Locally Yes
Face Recognition Height Range 1.1 m–2.2 m (3.61 ft–7.22 ft)
Face Recognition Distance 0.3 m–2.0 m (0.98 ft–6.56 ft)
Face Recognition Accuracy 99.9%
Face Recognition Time 0.2 seconds
Casing Material Aluminum alloy
Capacity
Card Capacity 20,000
Face Image Capacity 20,000
Port
RS-485 1
Wiegand 1 (they can be set as an input or output port)
Alarm Input 2 channels
Alarm Output 2 channels
Power Output 1 port (12 V, 500 mA)
Exit Button 1 channel
Door Status Detection 1 channel
Lock Control 1 channel, open by default
Network Port 1 × 10Mbps/100Mbps Ethernet port
Alarm
Tamper Alarm Yes
General
Unlock Password Mode User, public and hard passwords
Appearance Color Silver
Power Supply 12 VDC, 2 A;
PoE Standard
Power Adapter Optional
Installation Flush Mount; Wall Mount
Certifications THERE IS
Accessory Power supply (optional);
Flush mount box (optional)
Product Dimensions 389 mm × 145 mm × 44.1 mm (15.31" × 5.71" × 1.74")
Protection IP65 rated (Silicone sealant is required. See the quick start guide for more information).
Operating Temperature –30 °C to +60 °C (–22 °F to +140 °F)
Operating Humidity 0%–90% (RH), non-condensing
Operating Altitude 0 m–3,000 m (0 ft–9842.52 ft)
Power Consumption ≤5W (standby), ≤18W (working)
Gross Weight 1.7 kg (3.75 lb)
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
