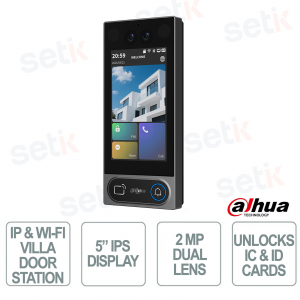

VTO6631QB-WP 2MP WiFi IP Video Doorbell with Facial Recognition, RFID, Bluetooth, and PoE IP65 - Dahua

VTO6631QB-WP 2MP WiFi IP Video Doorbell with Facial Recognition, RFID, Bluetooth, and PoE IP65 - Dahua

 
-56% nuevo

VTO6631QB-WP is an advanced IP and Wi-Fi video intercom station designed for residential and professional applications, equipped with a 5” IPS touchscreen display with 720×1280 resolution for smooth and modern interaction. It integrates a dual 2MP wide-angle camera with 120 dB WDR that guarantees clear images in any lighting conditions. It supports multi-factor access with facial recognition, RFID badge, Bluetooth and password , offering maximum security and versatility. With a capacity of up to 20,000 users and 300,000 recordings , it is ideal for high-density contexts. Complete with Wi-Fi, PoE and IP65 protection , it ensures simple installation and resistance in outdoor environments. Dahua

Technical data sheet

referencia : VTO6631QB-WP

brand : Dahua

EAN: 6937552417175

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

La empresa asiática, fundada en 2001, debe su reputación a la excelente calidad de sus productos en términos de rendimiento y capacidad. La gama de productos de Dahua abarca desde los sistemas clásicos de CCTV hasta los sistemas de seguridad más complejos y articulados: no sólo la videovigilancia, sino también el control de acceso, los sistemas de videoportería, los productos de detección térmica y mucho más. La fiabilidad, la tecnología de punta y los precios competitivos que ofrece Dahua son sólo algunas de las razones por las que Setik siempre ha elegido distribuir la marca. Dahua es desde hace años un sólido punto de referencia en el mercado internacional de los circuitos cerrados de televisión, gracias a las enormes inversiones que cada año se dedican a la investigación y el desarrollo. Las cifras hablan por sí mismas: desde 2016 hasta hoy Dahua ha registrado más de 800 patentes con su propia marca. Actualmente Dahua puede presumir de estar entre los 10 primeros líderes mundiales en el mundo de la seguridad. Este año Dahua fue premiado con el 2º puesto en el ranking "2019 TOP SECURITY 50".

Los productos de la marca Dahua vendidos por Setik SRL pueden ser entregados como productos OEM, es decir, productos que a todos los efectos son productos originales de Dahua, pero que tienen una apariencia estética diferente reservada para el mercado en línea (generalmente en términos de logotipo y embalaje). Esto no afecta en modo alguno a la garantía y a las características técnicas del producto, que es siempre genuino de Dahua, ni a las actualizaciones y la funcionalidad.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. es uno de los principales proveedores mundiales de soluciones de videovigilancia, con más de 13.000 empleados y 35 filiales activas en todo el mundo.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2026-02-19 16:06:32 [link_rewrite] => dahua [meta_title] => Los mejores productos Dahua: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Productos Dahua para la videovigilancia digital IP, HYBRIDA, HD-SDI, HDCVI, como cámaras, grabadoras, control de acceso, accesorios y videointercomunicadores wifi. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

VTO6631QB-WP | EXTERNAL IP & WI-FI VIDEO DOOR PHONE - 5" DISPLAY - 2MP DUAL LENS

Dahua

The Dahua VTO6631QB-WP is a professional IP and Wi-Fi video intercom designed for residential and business environments, featuring a 5” IPS touchscreen display with 720×1280 resolution and an ultra-slim design. It integrates a dual 2MP wide-angle camera with 120 dB WDR , capable of offering clear images even in difficult lighting conditions. It supports multi-factor access with high-precision facial recognition (99.9%), RFID badge, Bluetooth and password , ensuring maximum security. With a capacity of up to 20,000 users and 300,000 events , it is ideal for advanced installations. Wi-Fi, TCP/IP and PoE connectivity, combined with IP65 protection , ensures reliability even in outdoor environments.

Main specifications:

- 5” 720×1280 IPS display for a modern and intuitive interface

- Dual 2MP cameras with 120dB WDR for always clear images

- 99.9% facial recognition + RFID, Bluetooth and password for advanced security

- Capacity of 20,000 users and 300,000 records for professional installations

- Built-in Wi-Fi, TCP/IP and PoE for flexible connection

- IP65 protection ideal for heavy duty outdoor use

Further details

✅ Display :
The video intercom is equipped with a 5” IPS touchscreen display with 720×1280 resolution , designed to offer a modern, fluid and highly intuitive interface, ideal for residential and professional installations.
✅ Function:
Advanced access control system with facial recognition, RFID badge, Bluetooth and password , user management of up to 20,000 profiles and interface customization, ensuring maximum security and operational flexibility.
✅ RFID:
Compatibility with dual frequency 13.56 MHz and 125 kHz IC and ID cards , reliable technology for fast and secure reading, ideal for high-traffic environments.
✅ Network :
Full connectivity with built-in Wi-Fi, Ethernet TCP/IP and ONVIF, SIP and HTTP/HTTPS protocol support , ensuring easy integration into security systems and remote management.
✅ Performance :
High performance with 0.2 seconds facial recognition and 99.9% accuracy , stable operation even at a distance of 0.3 to 2 meters and smooth handling of high user volumes.
✅ Doors:
Full interfaces with RS-485, Wiegand, alarm input/output, Ethernet port and lock control , plus exit button and door sensor connections for advanced integration.
✅ Alarm :
Integrated security system with tamper alarm and alarm input/output management , designed to ensure protection against tampering and unauthorized access.

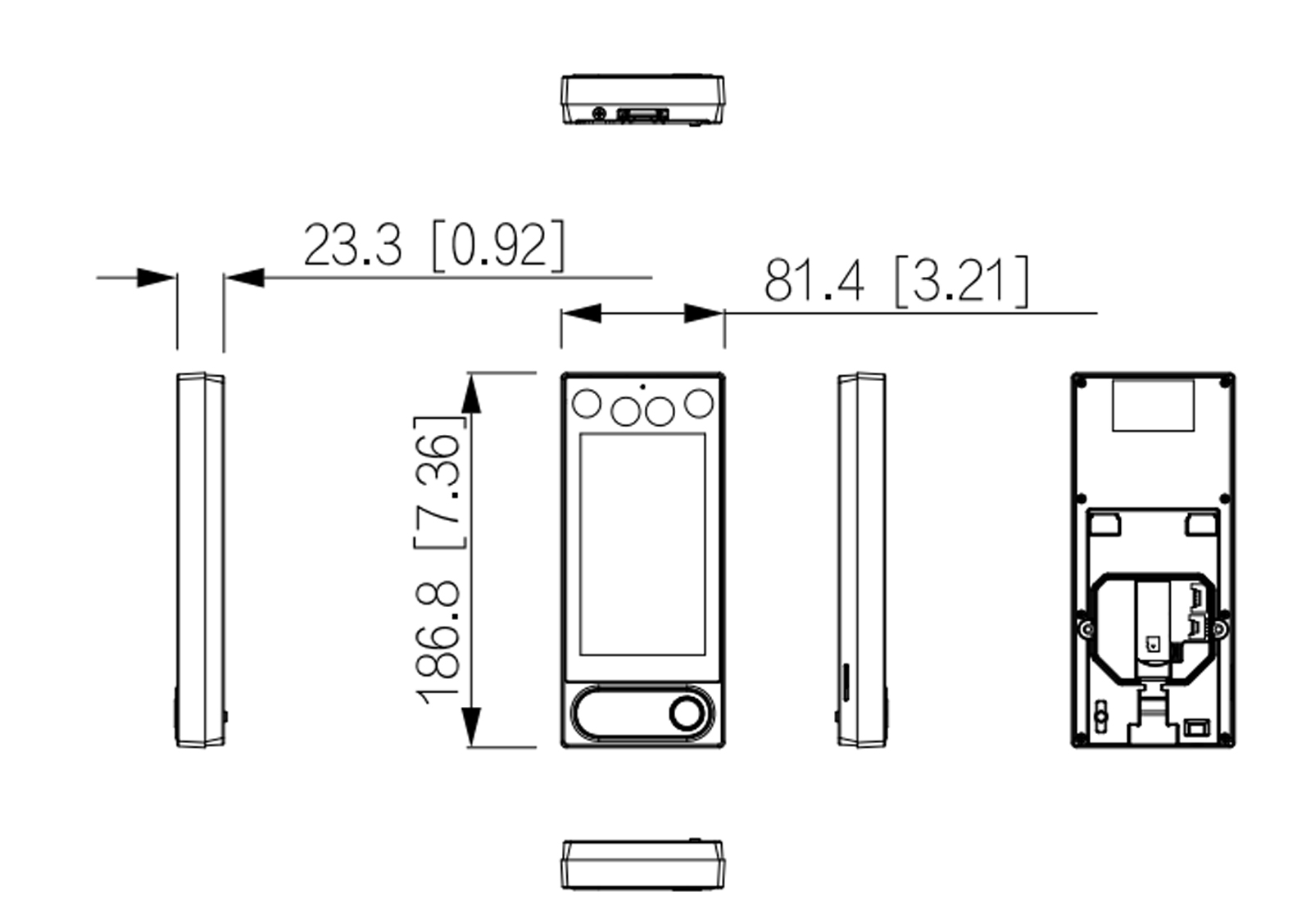

VTO6631QB-WP dimensions

Technical data sheet

VTO6631QB-WP
System
Main Processor Embedded Processor
Operating System Embedded Linux OS
Button Type Mechanical
Number of Buttons 1
Network Protocol RTSP;DNS;FTP;RTP;RTMP;SIP;SSH;HTTP/HTTPS;ONVIF
Basic
Screen Type Capacitive Touchscreen
Display Screen 5-inch display screen
Screen Resolution 720 (H) × 1280 (V)
Room 1/2.8" 2 MP CMOS high-definition, low illumination, dual cameras
Field of View H: 119°; V: 66°; D: 142°
WDR 120dB
Noise Reduction 3D NR
Video Compression H.264;H.265
Video Resolution Main stream: 720P/D1/WVGA/CIF； Sub stream: 1080P/720P/D1/WVGA/CIF/QVGA
Video Frame Rate PAL: 25 fps; NTSC: 30 fps
Video Bit Rate 256 kbps–4,096 kbps
Light Compensation Auto IR
Audio Compression G.711a; G.711u; PCM
Audio Input 1 channel
Audio Output Built-in speaker
Audio Mode Two-way audio
Audio Enhancement Echo suppression/digital noise reduction
Audio Bit Rate 16 kHz, 16 bit
Function
Communication Mode Full digital
Verification Method Card;Password;Face Recognition;Bluetooth
Frequency Range 2400-2483.5 MHz
Max. Transmission Power CE EIRP:
≤20 dBm@2400-2483.5 MHz
Bluetooth Yes
Bluetooth Standard BLE (Bluetooth mode), BT5.2 (Bluetooth version)
Auto Snapshot Yes
Information Release Receive and view text information released by the management center.
Elevator Control Residents and visitors can call elevators. Permissions can also be granted to access floors through access control.
Leave Videos Yes (SD card inserted in VTO is needed)
Storage Supports Micro SD card (up to 128 GB)
Web Configuration Yes
Auto Registration Yes
RFID
Card Type IC card; ID card
Modulation Type ASK
Frequency Range IC: 13.56 MHz; ID: 125 kHz
Max. Transmission Power IC:42 dBuA/m @10m; ID:66 dBuA/m @10m
Network
Max. Transmission Power ≤20dBm@2400-2483.5 MHz
Wi-Fi Yes
Wireless Standard IEEE802.11b/802.11g/802.11n
Wireless Frequency Range 2.4 GHz
Performance
Card Reading Distance 0 cm–3 cm
Face Recognition Height Range 1.2 m–2.0 m (3.94 ft–6.56 ft)
Face Recognition Distance 0.3 m–2.0 m (0.98 ft–6.56 ft)
Face Recognition Accuracy 99.9%
Face Recognition Time 0.2 s
Casing Material Tempered glass; PC + ABS
Capacity
Card Capacity 100,000
Face Image Capacity 20,000
User Capacity 20,000
Port
RS-485 1 channel
Wiegand 1 channel
Alarm Input 2 channels
Alarm Output 1 channel
Power Output Max 12 V, 1.5 A through an adapter
Max 12 V, 0.5 A through PoE
Exit Button 1 channel
Lock Control 1 channel
Door Status Detection 1 channel
Network Port 1 × 10Mbps/100Mbps Ethernet port
Alarm
Tamper Alarm Yes
General
Appearance Color Dark Silver
Power Adapter Optional
Power Supply Standard PoE; 12 VDC, 3 A
Installation Surface Mount
Certifications THERE IS
Accessory Power supply (optional);
Surface Mounted (standard)
Product Dimensions 186.8 mm × 81.4 mm × 23.3 mm (7.35" × 3.20" × 0.92") (H × W × D)
Protection IP65 rated (Silicone sealant is required.)
Operating Temperature –30 °C to +60 °C (–22 °F to +140 °F)
Operating Humidity 0%–90% (RH), non-condensing
Operating Environment Outdoor
Operating Altitude 0 m–1,300 m (0 ft–4,265.09 ft)
Power Consumption ≤ 8W (standby), ≤ 10W (working). These two values of power consumption do not contain the output power.
Gross Weight 0.82 kg (1.81 lb)
Storage Temperature –20 °C to +70 °C (–4 °F to +158 °F)
Storage Humidity 30%–75%
