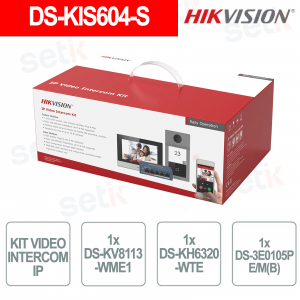

DS-KIS604-S Full HD WiFi IP Video Intercom Kit with PoE and Switch DS-3E0105P-E/M(B) - Hikvision

DS-KIS604-S Full HD WiFi IP Video Intercom Kit with PoE and Switch DS-3E0105P-E/M(B) - Hikvision

 
EN PROMOCIÓN -35%

DS-KIS604-S The IP video intercom kit is the ideal solution for villas and homes thanks to the combination of a Full HD 1080P external unit, a 7" internal touch monitor and remote management via the Hik-Connect App . The DS-KV8113-WME1 external unit integrates a camera with a wide-angle lens, two-way audio with echo cancellation and IP65 IK08 protection, ensuring safety and reliability even in outdoor environments. The DS-KH6320-WTE1 monitor offers an intuitive interface with Wi-Fi support and image storage on a TF card. The kit also includes the Hikvision DS-3E0105P-E/M(B) 4-port PoE switch, ideal for easily powering and connecting devices via a PoE network, simplifying the installation of the entire video intercom system. Hikvision

Technical data sheet

referencia : DS-KIS604-S

brand : Hikvision

EAN: 6931847179489

Disponibilità: 166

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Desde el año de su nacimiento, su prestigio ha crecido tanto que en 2015 se convertirá en la primera realidad mundial en materia de seguridad.

A partir de 2016 Hikvision expande su mercado convirtiéndose en Proveedor de Soluciones Totales para todo el mercado de la seguridad. Así entra en el mundo de la detección de intrusos y luego se acerca a las nuevas tecnologías e inteligencia al servicio de la humanidad ocupándose de IO, Visión Artificial, Robótica y Sistemas Automovilísticos. De líder en seguridad, Hikvision se convierte con compromiso, pasión y competencia en una empresa de alta tecnología con una visión 4.0, siempre apuntando alto.

Por lo tanto, Setik se siente honrado de ser un distribuidor de Hikvision. Como siempre, ofreceremos productos de última generación y el apoyo técnico y comercial adecuado.

[short_description] =>

Videosorveglianza Hikvision

Hikvision fue fundada en 2001 con el objetivo de crear y desarrollar soluciones profesionales completas de videovigilancia, convirtiéndose rápidamente en un líder en el mundo de la seguridad.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Seguridad hikvision [meta_keywords] => Seguridad hikvision [meta_description] => Hikvision fue fundada en 2001 y pronto se convirtió en líder del mundo de la videovigilancia. Descubra ahora los productos del catálogo! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

DS-KIS604-S – NETWORK VIDEO INTERCOM

Hikvision

The Hikvision DS-KIS604-S IP video intercom kit offers a complete solution for villas and homes, combining a Full HD 1080P external unit, a 7” touchscreen internal monitor and remote management via the Hik-Connect App . The DS-KV8113-WME1 external unit integrates a wide-angle camera with WDR , IR illumination, two-way audio with echo cancellation and IP65 IK08 protection for maximum outdoor reliability. The DS-KH6320-WTE1 monitor with high-resolution TFT display allows intuitive control, Wi-Fi connection and image saving on a TF card up to 32 GB. The kit also includes the Hikvision DS-3E0105P-E/M(B) 4-port PoE switch, ideal for powering and connecting devices via a PoE network, simplifying the installation and management of the video intercom system.

Main features:

- Complete IP video intercom kit ideal for villas, homes and small residential systems

- Full HD 1080P external unit with wide-angle lens and WDR technology

- 7” TFT touch monitor with 1024×600 resolution and intuitive interface

- Two-way audio with built-in echo cancellation and noise reduction

- Remote management via Hik-Connect App from smartphones and tablets

- IP65 IK08 protection resistant to water, dust and vandalism

- Hikvision DS-3E0105P-E/M(B) PoE switch included for easy power and device connection

- Support Wi-Fi and TF card up to 32GB for storing pictures and messages

Further details

✅ IP Technology:
The Hikvision video intercom kit uses advanced IP Network Video Intercom technology, ensuring stable communication, intelligent access management, and complete integration with home or professional LAN networks. Thanks to TCP/IP, SIP, and RTSP protocols, the system offers high performance, remote control, and maximum compatibility with modern video surveillance and smart home infrastructures.
✅ Video camera:
 The outdoor station integrates a Full HD 1920x1080 video camera with WDR technology and integrated IR illumination, ensuring detailed images and optimal visibility even in low-light or high-contrast conditions. The wide viewing angle of up to 124° horizontally improves entry control and home security.
✅ Monitor:
 The internal monitor features a 7-inch TFT touchscreen with 1024x600 resolution, designed to offer intuitive management of video intercom calls and access control functions. The capacitive touchscreen interface improves navigation and makes use modern, quick, and practical.
✅ Two-way audio :
The system supports full-duplex two-way audio communication with an omnidirectional microphone and built-in speaker, ensuring clear and natural conversations. Noise suppression and echo cancellation features eliminate background noise and echo effects, improving audio quality during communications.
✅ Wi-Fi:
 Thanks to 2.4 GHz 802.11 b/g/n Wi-Fi connectivity, the video intercom can be easily connected to your home wireless network, allowing remote management via smartphone with the Hik-Connect app and real-time notifications wherever you are.
✅ PoE :
 IEEE802.3af PoE power allows data and power to be transmitted over a single Ethernet cable, simplifying system installation and reducing time, cost, and the need for additional cabling.
✅ 4 PoE ports:
 The kit includes the Hikvision DS-3E0105P-E/M(B) switch with 4 PoE ports , designed to quickly power and connect outdoor units, monitors, and other IP devices. The switch facilitates system expansion and ensures stable and efficient network management.
✅ Compatibility :
The kit is compatible with the Hik-Connect app, supports TF cards up to 32 GB for image and message recording, and can be integrated with access control systems, IP networks and professional Hikvision security systems thanks to the RS-485 interfaces, alarm inputs and lock control.

Technical data sheet

DS-KIS604-S
Door station/System parameters
Operating system Embedded high performance processor
Flash 32 M
RAM 256 M
Door station/Video parameters
Supplement light IR supplement
Resolution Main stream: 1920 × 1080
Substream: 640 × 480
Lens 1
WDR Support
FOV Horizontal: 124° Vertical: 75°
Video compression standard H.264
Door station/Audio parameters
Audio input Built-in omnidirectional microphone
Audio output Built-in loudspeaker (more than 80 dB within 30 cm)
Audio quality Noise suppression and echo cancellation
Volume adjustment Adjustable
Audio compression standard G.711 U, G.711 A
Audio Compression Rate 64 Kbps
Audio intercom Two-way audio communication
Door station/Capacity parameters
User capacity 2000
Door station/Network parameters
Network protocol TCP/IP, RTSP
Wi-Fi Wi-Fi 802.11 b/g/n
Audio quality 10/100 Mbps self-adaptive Ethernet
3G/4G /
Bluetooth /
Door station/Device parameters
Network interface 1
RS-485 1
Wiegand 0
Alarm input 4
Lock control 2
Exit button 2 Max.
Door contact 2
Alarm output 0
Power interface 1
TAMPER
Bluetooth 0
TF card 1 (reserved)
Door station/General
Button 1
Indicator 3
Power consumption ＜ 10 W
Power supply IEEE802.3af, PoE standard
12 VDC
Working temperature -40° C to 53° C(-40° F to 127.4° F)
Working humidity 10% to 95%
Dimensions 174 mm × 91 mm × 29 mm
Application environment Outdoor
Protection level IP65, IK08
Indoor station/System parameters
Operating system Embedded high performance processor
Memory 128 MB
Flash 32 MB
Indoor station/Display parameters
Display screen 7-inch colorful TFT screen
Display resolution 1024 × 600
Operation method Capacitive touch screen
Indoor station/Audio parameters
Audio input Built-in omnidirectional microphone
Audio output Built-in loudspeaker
Audio quality Noise suppression and echo cancellation
Audio compression standard G.711 U
Audio Compression Rate 64 Kbps
Indoor station/Device interfaces
RS-485 1
Alarm input 8-channel alarm inputs
Relay output 2
TF card Max to 32G, SD 2.0 or lower version
Indoor station/General
Power consumption ≤ 6 W
Power supply Standard PoE,12VDC
Working temperature -10 °C to 55 °C (14 °F to 131 °F)
Working humidity 10% to 90%
Dimensions (L x W x H) 200mm × 140mm × 15.1mm (7.9" × 5.5 × 0.6\")"
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
