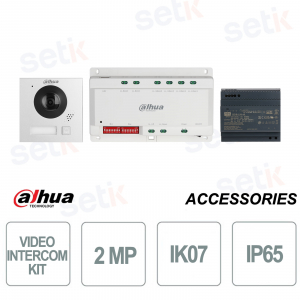

KTX01-A | VIDEO DOOR PHONE KIT

Dahua

The Dahua KTX01-A video intercom kit offers a complete security system with a 2MP fisheye camera and a 176° ultra-wide viewing angle, ideal for residential or business settings. The anodized aluminum alloy body with IP65 and IK07 protection is perfect for flush-mounted or surface-mounted installations. Two-wire communication allows for stable connection of up to 100 analog or 22 hybrid indoor monitors, with access management via password, fingerprint, or card.

Main specifications:

- 2MP fisheye camera with 176° angle

- Stable and secure 2-wire communication

- IP65 protection against water and dust

- IK07 vandal-proof certification

- Access with password, fingerprint or card

- Flexible recessed or surface installation

Further details

✅ Resolution:
The video intercom kit is equipped with a 2 Megapixel HD CMOS color camera with low-illumination technology and a fisheye lens that offers an extremely wide 176° viewing angle, ensuring clear images even in low light conditions and complete visual coverage of the entrance.
✅ Communication :
The system supports analog 2-wire communication, allowing for simple and reliable wiring even over long distances. It includes 4 2-wire ports for connecting to VTH monitors and 2 2-wire ports for additional VTO modules, allowing expansion with multiple devices in cascade up to 10 modules.
✅ Compatibility with VTH models :
The KTX01-A is compatible with up to 100 analog VTH or 22 hybrid VTH indoor monitors, offering great flexibility for installations in complex residential or business environments, also allowing integration with other Dahua modules.
✅ IP65 protection:
The device is certified with IP65 protection grade, ensuring high resistance against dust and water jets from any direction, perfect for safe and continuous use in outdoor environments.
✅ IK10 protection:
Although the document specifies IK07, typical of Dahua video intercom modules for impact protection up to 2 joules, I should emphasize that the higher level of vandal resistance refers to IK10, so for installations at risk of vandalism, we always recommend checking the correct model. This model is officially declared IK07.

Technical data sheet

Model KTX01-A
System (VTO)
Main Processor Embedded Processor
Operating System Embedded Linux OS
Button Type Mechanical
Basic (VTO)
Room

1/2.5" 2 MP CMOS low illumination HD color fisheye camera
Field of View H: 168.6°; V: 87.1; D: 176.7°
WDR 120 dB
Noise Reduction 3D NR
Video Resolution P: 960 (H) × 576 (V) N: 960 (H) × 480 (V)
Video Frame Rate P: 25 fps N: 30 fps
Light Compensation Auto IR
Day/Night Auto(ICR)/Color/B/W
Audio Compression G.711a; G.711u; PCM
Audio Input 1 channel
Audio Output Built-in speaker
Audio Mode Two-way audio (half-duplex)
Audio Enhancement Echo suppression/digital noise reduction
Audio Output Built-in speaker
Audio Mode Two-way audio (half-duplex)
Audio Enhancement Echo suppression/digital noise reduction
Function(VTO)
Communication Mode Analog 2-wire
Verification Method Remote;Face Recognition;Card;Password
Leave Videos Yes (SD card inserted in VTH is needed)
Performance (VTO)
Casing Material Aluminum alloy
Port(VTO)
RS-485 1
Alarm Output 1 channel
Power Output 1 port (12V, 1A)
Exit Button 1 channel
Door Status Detection 1 channel
Lock Control 1 channel
Alarm (VTO)
Tamper Alarm Yes
General (VTO)
Appearance Color Silver
Power Supply 2-wire controller
Installation Flush Mount; Surface Mount
Certifications THERE IS
Accessory Surface mount box (optional), flush mount box (optional), panel (optional)
Product Dimensions 100 mm × 100 mm × 47.35 mm (3.94" × 3.94" × 1.86") (H × W × D)
Protection IK07; IP65
Operating Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity 10%–90%
Operating Altitude 0 m–3,000 m (0 ft–9842.52 ft)
Operating Environment Outdoor
Power Consumption ≤4W (standby), ≤12W (working)
Gross Weight 435 g (0.96 lb)
System(VTNC)
Main Processor Embedded Processor
Operating System Embedded Linux OS
Network Protocol IPv4; UDP; DNS; TCP; SSH
Function(VTNC)
Communication Mode Analog 2-wire
Web Configuration Yes
Performance (VTNC)
Casing Material PC + ABS
Port(VTNC)
Network Port 1 × 100 Mbps Ethernet port
General(VTNC)
Appearance Color White
Power Supply 48–53 VDC, 4 A
Installation Rail Mount Guides
Certifications THERE IS
Product Dimensions 117 mm × 191 mm × 38 mm (4.61" × 7.52" × 1.50") (L × W × H)
Operating Temperature –10 °C to +55 °C (+14 °F to +131 °F)
Operating Humidity 10%–95%, non-condensing
Operating Altitude 0 m–3,000 m (0 ft–9842.52 ft)
Operating Environment Indoor
Power Consumption ≤4W (standby), ≤100W (working)
Gross Weight 647.5 g (1.43 lb)
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
