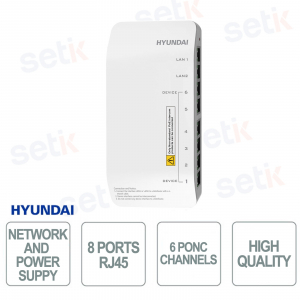

Hyundai HYU-560 8-Port RJ45 100Mbps Switch with 24V PoNC Power Supply

Hyundai HYU-560 8-Port RJ45 100Mbps Switch with 24V PoNC Power Supply

 
nuevo

The HYU-560 switch is a network and power distribution switch designed for efficient device interconnection via eight 100 Mbps RJ45 ports, six of which provide 24V DC power via proprietary PonC cable up to 40 meters. It supports up to six PonC channels and allows cascading of up to eight devices, ensuring flexible expansion. It complies with IEEE802.3 standards, with store & forward functionality, an external power supply included, low power consumption of ≤8W, and wide temperature range operation from -10°C to +55°C. Hyundai

Technical Data Sheet

referencia : HYU-560

brand : Hyundai Security

Manufacturer Object ( [id] => 30 [name] => Hyundai Security [description] =>

Fundada en Corea, Hyundai Corporation es un fabricante líder de productos digitales y se destaca en el mercado mundial por su amplia gama de productos industriales, eléctricos y electrónicos. Hyundai Corporation ha entrado en el mundo de la videovigilancia desarrollando y diseñando sistemas de seguridad como cámaras y grabadoras de alta tecnología y diseño. El principal objetivo que persigue la empresa coreana es garantizar la protección y la seguridad de las personas en los hogares, las oficinas y los transportes.

Todos los sistemas de videovigilancia de Hyundai son apreciados y recomendados por los profesionales del sector, sobre todo porque la mayor parte de la gama se basa en la tecnología Hikvision, por lo que son totalmente compatibles.

Los distribuidores oficiales de Hyundai Seguridad son pocos porque hay pocas realidades, como Setik, autorizadas a distribuirlo. En la base de esta política está la voluntad de proteger y salvaguardar la marca, evitando así las elecciones agresivas de los canales.

CATALOGO HYUNDAI: DOWNLOAD

Hyundai Security

[short_description] =>

Videosorveglianza Hyundai

Productos de seguridad Hyundai para la protección y la seguridad de las personas que se instalen en el hogar, las oficinas y el transporte.

[id_address] => [date_add] => 2018-10-29 15:00:38 [date_upd] => 2021-06-18 12:43:04 [link_rewrite] => hyundai-security [meta_title] => Hyundai Security [meta_keywords] => Hyundai Security,Videosorveglianza Hyundai,Sicurezza Hyundai,Hyundai NEXTGEN,Telecamere Hyundai,Dvr Hyundai [meta_description] => Hyundai Security diseña y desarrolla sistemas de videovigilancia ofreciendo soluciones innovadoras y avanzadas tanto en tecnología como en diseño. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

LIQUIDACION TOTAL ×

 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

HYU-560 | NETWORK AND POWER DISTRIBUTOR SWITCH FOR INSTRUMENT INTERCONNECTION


Dahua

The HYU-560 switch is a compact network device that allows the simultaneous interconnection and powering of wired devices, supporting up to 6 PoNC channels. Equipped with 8 100 Mbps RJ45 ports and 24V DC power on 6 ports, it allows for stable connections and cascading configurations of up to 8 units, ensuring reliability in industrial and technical environments. Compliant with IEEE standards, it offers quick installation, low heat dissipation, and extensive protection against dust and humidity .

Main specifications:

- 8 x 100Mbps RJ45 ports (6 with 24V DC power supply)

- Support up to 6 PoNC channels (max 40m)

- Daisy chain connection of up to 8 devices

- IEEE802.3/3u/3x compatibility, store & forward function

- 24VDC power supply included, consumption ≤8W

- Operating range: -10°C ~ +55°C, 10–90% RH

Further details

✅ Number of doors:
The switch features 8 100 Mbps RJ45 ports , 6 of which provide 24V DC power for connected devices, while the other 2 are dedicated to daisy-chaining , allowing modular expansion of up to 8 units connected together .
✅ Storage and forwarding function :
The device uses store & forward mode, which stores each received data packet to check its integrity before forwarding it. This technology reduces transmission errors and ensures greater reliability in network management, especially in professional environments.
✅ PonC (Power over network Cable):
It supports up to 6 channels of PonC , i.e. power over a proprietary network cable, which allows low voltage power (24V DC) to pass directly through the data cable, with a maximum operating distance of 40 meters . Ideal for installations where separate power supply is not possible .

Technical data sheet

HYU-560
Specifications
Network and power distribution switch for instrument interconnections
8 x 100Mbps RJ45 ports (6 ports provide 24V DC for power + 2 for cascading connections)
Support up to 6 PonC channels (powered by proprietary network cable, max. distance 40 meters)
Up to 8 can be daisy chained
IEEE802.3, IEEE802.3u, IEEE802.3x
Store & forward function
External 24V DC power supply included
Consumption: ≤8W
Operating temperature -10°C ~ +55°C
Operating humidity 10% ~ 90% (non-condensing)
Dimensions: 176 x 91 x 32 mm
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
