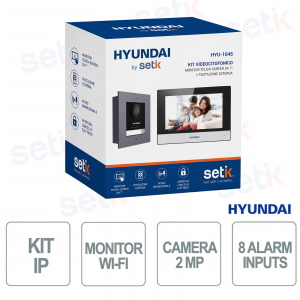

Hyundai IP Video Intercom Kit with 7" WiFi Monitor, 2MP Fisheye Camera, PoE, and Advanced Access Control

Hyundai IP Video Intercom Kit with 7" WiFi Monitor, 2MP Fisheye Camera, PoE, and Advanced Access Control

nuevo

HYU-1045 - The IP video intercom kit is a complete and professional solution for access control, consisting of an IP video intercom, a 7" WiFi monitor, a PoE switch, and 16GB of memory for immediate and integrated management. The 2MP fisheye camera with a viewing angle of up to 146° and IR night vision guarantees detailed images in any condition. The system offers two-way audio with echo and noise cancellation and supports WDR for optimal video quality. Thanks to IP connectivity with WiFi, PoE, and TCP/IP, SIP, and RTSP protocols , it allows remote access and advanced integration. It also includes management of up to 2000 users, alarm inputs, and lock control , making it ideal for advanced residential and professional applications. Hyundai

referencia : HYU-1045

brand : Hyundai Security

Manufacturer Object ( [id] => 30 [name] => Hyundai Security [description] =>

Fundada en Corea, Hyundai Corporation es un fabricante líder de productos digitales y se destaca en el mercado mundial por su amplia gama de productos industriales, eléctricos y electrónicos. Hyundai Corporation ha entrado en el mundo de la videovigilancia desarrollando y diseñando sistemas de seguridad como cámaras y grabadoras de alta tecnología y diseño. El principal objetivo que persigue la empresa coreana es garantizar la protección y la seguridad de las personas en los hogares, las oficinas y los transportes.

Todos los sistemas de videovigilancia de Hyundai son apreciados y recomendados por los profesionales del sector, sobre todo porque la mayor parte de la gama se basa en la tecnología Hikvision, por lo que son totalmente compatibles.

Los distribuidores oficiales de Hyundai Seguridad son pocos porque hay pocas realidades, como Setik, autorizadas a distribuirlo. En la base de esta política está la voluntad de proteger y salvaguardar la marca, evitando así las elecciones agresivas de los canales.

CATALOGO HYUNDAI: DOWNLOAD

Hyundai Security

[short_description] =>

Videosorveglianza Hyundai

Productos de seguridad Hyundai para la protección y la seguridad de las personas que se instalen en el hogar, las oficinas y el transporte.

[id_address] => [date_add] => 2018-10-29 15:00:38 [date_upd] => 2021-06-18 12:43:04 [link_rewrite] => hyundai-security [meta_title] => Hyundai Security [meta_keywords] => Hyundai Security,Videosorveglianza Hyundai,Sicurezza Hyundai,Hyundai NEXTGEN,Telecamere Hyundai,Dvr Hyundai [meta_description] => Hyundai Security diseña y desarrolla sistemas de videovigilancia ofreciendo soluciones innovadoras y avanzadas tanto en tecnología como en diseño. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR


HYU-1045 | IP KIT WITH INDOOR Wi-Fi IP MONITOR AND IP VIDEO INTERCOM


Dahua

The Hyundai HYU-1045 IP video intercom kit is a complete solution for advanced access control, consisting of a modular IP video intercom, a 7” touch WiFi monitor and a PoE switch , ideal for modern and connected installations. The 2MP fisheye camera with a viewing angle of up to 146° and IR night vision guarantees detailed images in all conditions, supported by WDR technology. It integrates two-way audio with echo and noise cancellation for clear and professional communications. Thanks to IP connectivity with WiFi, PoE and TCP/IP, SIP and RTSP protocols , it allows remote management and total integration. The system supports up to 2000 users, alarm inputs and lock control , making it ideal for residential and business environments.

Main specifications:

- 7” WiFi touch screen monitor with 1024x600 resolution

- 2MP fisheye camera with up to 146° viewing angle

- IR night vision and WDR technology

- Two-way audio with noise and echo cancellation

- IP connection with WiFi, PoE and advanced protocols

- Management of up to 2000 users and advanced access control

Further details

IP Technology:
Advanced IP technology that allows complete management of the video intercom system via the network, with support for TCP/IP, SIP and RTSP protocols for integration into modern infrastructures and remote access.
Wi-Fi Monitor:
Built-in Wi-Fi IP monitor with 802.11 b/g/n connectivity, allowing remote control, live viewing and system management directly from mobile devices or software clients.
Alarm:
8 configurable alarm inputs and 2 configurable alarm outputs , ideal for integration with security systems and automations for advanced access control.
Microphone & Speakers :
Built-in omnidirectional microphone and speaker for smooth, high-quality two-way audio communication in residential and professional environments.
PoE Switch:
Included 4-port PoE switch simplifies installation by powering and connecting devices over a single Ethernet cable, reducing complexity and cost.
Call button:
Integrated call button to quickly activate communication with the internal monitor, improving usability and access management.
Infrared night vision:
Infrared night vision ensures clear images even in total darkness, increasing safety at night.

Technical data sheet

HYU-1045
Specifications
1x modular IP video intercom
HYUNDAI IP video intercom suitable for outdoor use
1x call button
2MP fisheye camera with 146°(H)/82°(V) viewing angle
H.264 video format
Infrared night vision
WDR Backlight
Built-in microphone and speaker
Noise suppression and echo cancellation
Adjustable volume
Tamper-proof tamper
Up to 2000 users
Up to 6000 cards
Connect up to 500 internal monitors
Subconnection of up to 16 video intercoms
4 alarm inputs (2 exit buttons and 2 door contacts by default)
Supports 2 exit request buttons (for door lock)
2 inputs for door contacts
2 door lock control ports
1 RS485 port for submodules
1 RJ45 port (10/100 Mbps)
TCP/IP, RTSP protocols
1 x 12V DC power output, 500 mA
Power supply: 12V DC / PoE (802.3af)
Power consumption: ≤5W
Operating temperature from -40°C to +60°C
Operating relative humidity 10% ~ 95% (non-condensing)
IP65 protection rating
Dimensions: 98 (W) x 100 (H) x 42 mm
Ceiling installation
1x WIFI IP monitor
7" TFT capacitive touch screen (1024x600)
Store messages and capture images on a 16GB TF card (included)
Remote unlocking via client software or mobile client
View live video from video intercoms and connected cameras
Built-in microphone and speaker
G.711u audio compression
Noise suppression and echo cancellation
Adjustable volume
200 event recordings
Capacity up to 16 notifications
Capacity up to 5 connected extensions
Capacity for up to 8 connected video intercoms
8 alarm inputs / 2 alarm outputs
1 RS485 port
1 RJ45 port (10/100Mbps)
TCP/IP, SIP, RTSP protocols
Integrated WiFi 802.11 b/g/n
1 power port
Power consumption: ≤6W
Operating temperature from -10°C to +55°C
Operating relative humidity 10% ~ 90% (non-condensing)
Indoor installation environment
Dimensions: 200 (W) x 140 (H) x 23.6 mm
Weight: 355 g
Surface mount
