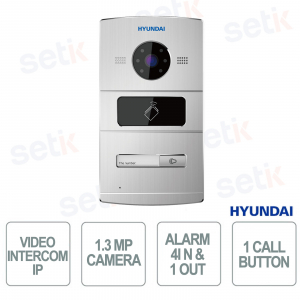

1.3MP Outdoor IP Video Intercom with Mifare RFID, Two-Way Audio, IP65, Alarms and Ethernet - Hyundai

1.3MP Outdoor IP Video Intercom with Mifare RFID, Two-Way Audio, IP65, Alarms and Ethernet - Hyundai

 
nuevo

HYU-558 - The outdoor IP video intercom station is a professional access control solution, equipped with a 1.3MP camera with 720P resolution and adaptive IR LEDs for clear images in all conditions. It integrates a Mifare proximity reader and 1 call button , ideal for residential installations and small spaces. The system offers two-way audio with echo cancellation and noise reduction , ensuring clear communications. It supports Fast Ethernet connection and TCP/IP and RTSP protocols , ensuring integration and remote management. It has 4 inputs and 1 alarm output with tamper function , improving security. The metal structure with IP65 protection and operating range from -40°C to +60°C guarantees durability and reliability over time. Hyundai

Technical Data Sheet

referencia : HYU-558

brand : Hyundai Security

Manufacturer Object ( [id] => 30 [name] => Hyundai Security [description] =>

Fundada en Corea, Hyundai Corporation es un fabricante líder de productos digitales y se destaca en el mercado mundial por su amplia gama de productos industriales, eléctricos y electrónicos. Hyundai Corporation ha entrado en el mundo de la videovigilancia desarrollando y diseñando sistemas de seguridad como cámaras y grabadoras de alta tecnología y diseño. El principal objetivo que persigue la empresa coreana es garantizar la protección y la seguridad de las personas en los hogares, las oficinas y los transportes.

Todos los sistemas de videovigilancia de Hyundai son apreciados y recomendados por los profesionales del sector, sobre todo porque la mayor parte de la gama se basa en la tecnología Hikvision, por lo que son totalmente compatibles.

Los distribuidores oficiales de Hyundai Seguridad son pocos porque hay pocas realidades, como Setik, autorizadas a distribuirlo. En la base de esta política está la voluntad de proteger y salvaguardar la marca, evitando así las elecciones agresivas de los canales.

CATALOGO HYUNDAI: DOWNLOAD

Hyundai Security

[short_description] =>

Videosorveglianza Hyundai

Productos de seguridad Hyundai para la protección y la seguridad de las personas que se instalen en el hogar, las oficinas y el transporte.

[id_address] => [date_add] => 2018-10-29 15:00:38 [date_upd] => 2021-06-18 12:43:04 [link_rewrite] => hyundai-security [meta_title] => Hyundai Security [meta_keywords] => Hyundai Security,Videosorveglianza Hyundai,Sicurezza Hyundai,Hyundai NEXTGEN,Telecamere Hyundai,Dvr Hyundai [meta_description] => Hyundai Security diseña y desarrolla sistemas de videovigilancia ofreciendo soluciones innovadoras y avanzadas tanto en tecnología como en diseño. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

HYU-558 | OUTDOOR IP VIDEO INTERCOM STATION WITH 1.3MP CAMERA


Hyundai Security

The Hyundai HYU-558 outdoor IP video intercom station is an advanced access control solution, designed to ensure security and high performance thanks to the 1.3MP camera with 720P resolution and adaptive IR LEDs for clear vision in all conditions. It integrates a Mifare proximity reader and 1 call button , ideal for residential contexts and small installations. The system offers two-way audio with echo cancellation and noise reduction , ensuring clear communications. It supports Fast Ethernet connection with TCP/IP and RTSP protocols , for remote management and advanced integration. It has 4 inputs and 1 alarm output with tamper function , improving security. The metal structure with IP65 protection and operating range from -40°C to +60°C guarantees resistance and reliability over time.

Main specifications:

- 1.3MP 720P camera with adaptive IR LEDs for night vision

- Mifare RFID reader and 1 integrated call button

- Two-way audio with echo cancellation and noise reduction

- Fast Ethernet connection with TCP/IP and RTSP protocols

- 4 inputs and 1 alarm output with tamper function

- IP65 metal construction resistant to extreme conditions

Further details

✅ IP Technology:
 Advanced IP technology that enables stable network connection and remote management via TCP/IP and RTSP protocols , ideal for integration into modern security systems and controllable by apps or software.
✅ 1 call button:
1 integrated call button designed for simple and immediate access management , particularly suitable for single homes or small residential contexts.
✅ 1 call button :
1 configurable call button that allows flexible access management , ideal for single homes or dedicated entrances.
✅ Proximity reader:
Mifare proximity reader that allows secure access control via badge or RFID card , improving convenience and security without the need for traditional keys.
✅ Built-in microphone and speaker:
Built-in microphone and speaker with two-way audio support ensure clear real-time communication , thanks to echo cancellation and noise reduction.
✅ Fast Ethernet Connection:
10/100Mbps Fast Ethernet connection that ensures fast and reliable data transmission , allowing smooth video streaming and integration with existing network infrastructures.
✅ Alarm :
4 inputs and 1 alarm output that allow advanced security management , connecting external sensors and devices for monitoring and protecting the area.
✅ PonC Support :
PonC (Power over Network Cable) support allows power to be supplied via a network cable up to 40 metres , reducing additional cabling and simplifying installation.

Technical data sheet

HYU-558
Specifications
IP video intercom station for small apartments with 1 call button
Linux operating system
1.3 megapixel colorful IP camera
Resolution 720P (1280x720) at 25 fps
Self-adaptive infrared LED
H.264 video compression format
Mifare proximity card reader
Compatible with external RS-485 readers (HYUNDAI protocol)
Remote unlocking via client software or mobile app (requires indoor console)
Supports tamper alarm and magnetic contact alarm
G.711u audio compression format
It incorporates omnidirectional microphone and speaker
Two-way audio with noise suppression and echo cancellation
Self-adaptive 10/100Mbps Ethernet
Network Protocols: TCP/IP and RTSP
4 input / 1 alarm output
RS485 Half-Duplex Port
Metal carcass
IP65 protection rating
Operating temperature -40° ~ +60°C
Operating humidity 10% ~ 90%
Power supply: 12V DC
Power supply with network cable up to 40 meters (requires HYU-560)
Consumption: <12W
Dimensions: 182 x 100 x 33 mm
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
