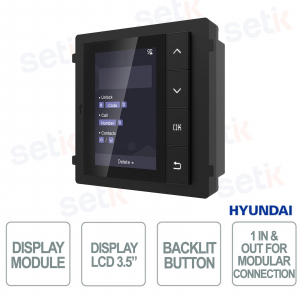

NEXTGEN Video Intercom Module with 3.5" LCD Display, IP65, Keypad and PIN Access - Hyundai

NEXTGEN Video Intercom Module with 3.5" LCD Display, IP65, Keypad and PIN Access - Hyundai

 
nuevo

HYU-710 - The HYUNDAI NEXTGEN display module represents an advanced solution for video intercom systems, designed to guarantee reliability and ease of use thanks to the 3.5" LCD screen with 320x480 resolution and backlit buttons that improve interaction even in poor visibility conditions. It supports up to 500 storable contacts and advanced functions such as door opening via PIN code and call management with compatible modules, offering a complete and intuitive experience. Equipped with a modular connection with 12V DC input/output , it integrates a stable system with low consumption ≤3W and IP65 protection, ideal for both flush-mounted and surface-mounted installations in outdoor environments. Hyundai

Technical Data Sheet

referencia : HYU-710

brand : Hyundai Security

Manufacturer Object ( [id] => 30 [name] => Hyundai Security [description] =>

Fundada en Corea, Hyundai Corporation es un fabricante líder de productos digitales y se destaca en el mercado mundial por su amplia gama de productos industriales, eléctricos y electrónicos. Hyundai Corporation ha entrado en el mundo de la videovigilancia desarrollando y diseñando sistemas de seguridad como cámaras y grabadoras de alta tecnología y diseño. El principal objetivo que persigue la empresa coreana es garantizar la protección y la seguridad de las personas en los hogares, las oficinas y los transportes.

Todos los sistemas de videovigilancia de Hyundai son apreciados y recomendados por los profesionales del sector, sobre todo porque la mayor parte de la gama se basa en la tecnología Hikvision, por lo que son totalmente compatibles.

Los distribuidores oficiales de Hyundai Seguridad son pocos porque hay pocas realidades, como Setik, autorizadas a distribuirlo. En la base de esta política está la voluntad de proteger y salvaguardar la marca, evitando así las elecciones agresivas de los canales.

CATALOGO HYUNDAI: DOWNLOAD

Hyundai Security

[short_description] =>

Videosorveglianza Hyundai

Productos de seguridad Hyundai para la protección y la seguridad de las personas que se instalen en el hogar, las oficinas y el transporte.

[id_address] => [date_add] => 2018-10-29 15:00:38 [date_upd] => 2021-06-18 12:43:04 [link_rewrite] => hyundai-security [meta_title] => Hyundai Security [meta_keywords] => Hyundai Security,Videosorveglianza Hyundai,Sicurezza Hyundai,Hyundai NEXTGEN,Telecamere Hyundai,Dvr Hyundai [meta_description] => Hyundai Security diseña y desarrolla sistemas de videovigilancia ofreciendo soluciones innovadoras y avanzadas tanto en tecnología como en diseño. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

HYU-710 | HYUNDAI NEXTGEN VIDEO INTERCOM DISPLAY MODULE


Hyundai Security

The HYUNDAI HYU-710 NEXTGEN display module for video intercom is a professional solution designed for modular systems, ideal for residential and business settings. It integrates a 3.5" LCD display with 320x480 resolution that ensures a clear view, accompanied by backlit buttons for intuitive use even in low light conditions. Thanks to the ability to manage up to 500 contacts and advanced functions such as door opening via PIN code , it offers advanced control and security. The modular connection with 12V DC power supply , low consumption ≤3W and IP65 protection make it reliable even in outdoor environments and versatile installations.

Main specifications:

- High visibility 3.5" (320x480) LCD display

- Backlit physical buttons

- Management of up to 500 contacts

- Door opening with PIN code

- Modular connection with 12V DC input/output

- IP65 protection for outdoor use

Further details

✅ LCD Screen:
 3.5" high-resolution LCD screen (320x480) designed to ensure a clear and detailed display of video intercom information, improving the user experience and facilitating the management of calls and contacts even in professional contexts.
✅ Backlit buttons:
Ergonomic backlit buttons designed for maximum visibility and ease of use in low-light conditions, ensuring intuitive and immediate interaction with the system.
✅ Modular connection:
Modular connection with 1 input/output ideal for expandable systems, which allows simple and flexible integration with other video intercom modules, optimising installation and configuration of the system.

Technical data sheet

HYU-710
Characteristics
3.5" LCD screen with a resolution of up to 320x480
Backlit buttons
Ability to aggregate up to 500 contacts
Number of dials and calls to the internal station with the HYU-713 keypad module
Unlocking the door by PIN code with the HYU-713 keypad module
Multilingual
Specifications
Embedded MCU processor
Storage up to 64MB
8MB flash memory
3.5" LCD screen (320x480)
4 backlit physical buttons
Modular connection: 1 input / 1 output
Power input: 12V DC (from another module)
12V DC power output (up to another module)
Power consumption ≤3W
Purification interface
Operating temperature -20°C ~ +60°C
Operating humidity 10% ~ 95%
IP65 protection rating
Dimensions: 100 (W) x 98.6 (H) x 34 mm
Flush or surface installation
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
