2-Wire Video Audio Distributor with 6 Interfaces, RJ45 and DIN Mount for Video Intercom - Hyundai

2-Wire Video Audio Distributor with 6 Interfaces, RJ45 and DIN Mount for Video Intercom - Hyundai

 
nuevo

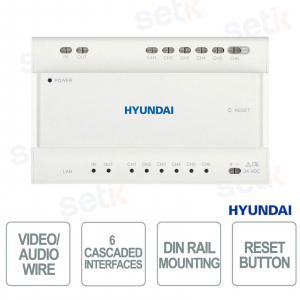

HYU-833 - The HYUNDAI HYU-833 video/audio distributor is designed for 2-wire video intercom systems, offering efficient signal management thanks to the 6 cascade interfaces that allow the connection of multiple devices in a simple and organized way. Equipped with an RJ45 network interface with WAN support , it guarantees advanced integration into IP networks, while the 6 LED status indicators allow immediate monitoring of the connection. The structure supports DIN rail mounting , facilitating installation in professional electrical panels. Powered by 24V DC with low consumption <7W , it ensures reliability and operational continuity. Ideal for advanced modular systems, it offers stability and configuration flexibility. Hyundai

Technical Data Sheet

referencia : HYU-833

brand : Hyundai Security

Manufacturer Object ( [id] => 30 [name] => Hyundai Security [description] =>

Fundada en Corea, Hyundai Corporation es un fabricante líder de productos digitales y se destaca en el mercado mundial por su amplia gama de productos industriales, eléctricos y electrónicos. Hyundai Corporation ha entrado en el mundo de la videovigilancia desarrollando y diseñando sistemas de seguridad como cámaras y grabadoras de alta tecnología y diseño. El principal objetivo que persigue la empresa coreana es garantizar la protección y la seguridad de las personas en los hogares, las oficinas y los transportes.

Todos los sistemas de videovigilancia de Hyundai son apreciados y recomendados por los profesionales del sector, sobre todo porque la mayor parte de la gama se basa en la tecnología Hikvision, por lo que son totalmente compatibles.

Los distribuidores oficiales de Hyundai Seguridad son pocos porque hay pocas realidades, como Setik, autorizadas a distribuirlo. En la base de esta política está la voluntad de proteger y salvaguardar la marca, evitando así las elecciones agresivas de los canales.

CATALOGO HYUNDAI: DOWNLOAD

Hyundai Security

[short_description] =>

Videosorveglianza Hyundai

Productos de seguridad Hyundai para la protección y la seguridad de las personas que se instalen en el hogar, las oficinas y el transporte.

[id_address] => [date_add] => 2018-10-29 15:00:38 [date_upd] => 2021-06-18 12:43:04 [link_rewrite] => hyundai-security [meta_title] => Hyundai Security [meta_keywords] => Hyundai Security,Videosorveglianza Hyundai,Sicurezza Hyundai,Hyundai NEXTGEN,Telecamere Hyundai,Dvr Hyundai [meta_description] => Hyundai Security diseña y desarrolla sistemas de videovigilancia ofreciendo soluciones innovadoras y avanzadas tanto en tecnología como en diseño. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

HYU-833 | MAIN STATION WITH 7" CAPACITIVE COLOR TOUCHSCREEN


Hyundai Security

The HYUNDAI HYU-833 video/audio distributor is a professional solution for 2-wire video intercom systems, designed to optimize signal management thanks to the 6 cascade interfaces that allow the simultaneous connection of multiple devices. Equipped with an RJ45 network interface with WAN support , it allows for advanced integration into IP networks, while the 6 LED status indicators offer immediate network monitoring. Compatibility with DIN rail mounting facilitates installation in electrical panels, ensuring order and practicality. Powered by 24V DC with low consumption <7W , it ensures efficiency and operational continuity. Ideal for advanced modular systems, it offers reliability and flexibility.

Main specifications:

- 6 cascaded interfaces for 2-wire systems

- RJ45 network interface with WAN support

- 6 LED indicators for network status and signals

- DIN rail mounting for professional installations

- 24V DC power supply with low consumption <7w p="">

- Compatible with modular video intercom systems

Further details

✅ Video/Audio Distributor:
Video/audio distributor for 2-wire systems designed to ensure efficient and stable management of audio and video signals , allowing the connection and distribution of data between multiple devices within the video intercom system.
✅ 6 LED indicators :
6 LED interface status indicators ideal for providing an immediate view of network operation and status , facilitating rapid diagnosis and operational control of individual channels.
✅ RJ45 network interface:
RJ45 network interface with WAN support that enables advanced integration into IP networks , allowing fast and reliable communication between system devices.
✅ Built-in reset button:
Integrated reset button designed to allow quick and safe reset of the device , useful for maintenance, configuration or troubleshooting.
✅ Dedicated power indicator:
Dedicated power indicator that allows immediate verification of the device's power status , ensuring constant visual control over the correct functioning of the system.

Technical data sheet

HYU-833
Specifications
Characteristics
6 two-wire cascade interface to connect with HYU-833 and HYU-832
6 interface indicators to show network status
Specifications
Video/audio distributor for 2-wire systems
Allows you to connect multiple elements within a 2-wire system
RJ45 network interface (1 channel and 1 terminal reserved for WAN access)
6-channel 6-wire interface for data exchange
Reset button
6 indicators for displaying the status of the 6-channel signal
1 power indicator
Operating temperature: -10°C ~ +55°C
operating midity of 10% ~ 90%
Power: 24 V DC
Consumption: <7 w="" td="">
Allows DIN rail mounting
