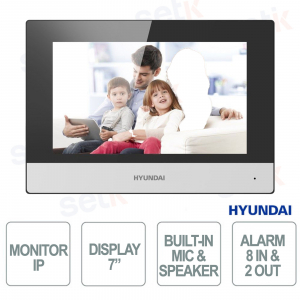

Hyundai 7" Touch Screen WiFi 2-Wire IP Video Intercom Monitor with Alarms, Relays, and Remote Control
HYU-834 - The 2-wire IP video intercom monitor is designed for modern indoor installations, offering an intuitive interface thanks to the 7" (1024x600) capacitive color touchscreen . Equipped with integrated WiFi connection and 2-wire network , it guarantees installation flexibility and remote access, while the built-in microphone and speaker with echo cancellation ensure clear communications. It supports SD card storage and live viewing of video intercoms and IP cameras , improving control and security. The presence of 8 alarm inputs, 2 relay outputs and RS485 interface makes it highly versatile for advanced systems. Ideal for Smart Home, it also allows remote door unlocking and management via app . Hyundai
HYU-834 | 2-WIRE INDOOR IP MONITOR
The HYUNDAI HYU-834 IP monitor is an advanced indoor 2-wire video intercom solution, designed to offer complete control thanks to the 7" (1024x600) capacitive color touchscreen and intuitive design with touch buttons . It integrates WiFi and 2-wire network , ensuring installation flexibility and remote access, while the microphone and speaker with echo cancellation and noise reduction ensure clear communications. It supports SD card storage and live viewing of video intercoms and IP cameras , improving security and monitoring. Equipped with 8 alarm inputs, 2 relay outputs and RS485 interface , it allows advanced integration into professional systems. Ideal for Smart Home, it also allows remote door unlocking and management via app .
Main specifications:
- 7" capacitive color touchscreen (1024x600)
- Integrated WiFi and 2-wire network connection
- Two-way audio with echo and noise cancellation
- SD card storage and IP live viewing
- 8 alarm inputs and 2 relay outputs
- RS485 interface for advanced systems integration
Further details
Technical data sheet
| HYU-834 |
| Specifications |
| Characteristics |
| Two-wire cable for power and network access |
| Intuitive design |
| 7" color touchscreen with 1024x600 resolution |
| 2-channel broadcast plan |
| Store messages and capture images on SD card |
| Remote unlocking via client or mobile software |
| View live images from connected video intercoms and cameras |
| Supports wireless network |
| Specifications |
| 128MB memory |
| 16MB flash memory (32MB hardware compatibility) |
| Embedded Linux operating system |
| 7" capacitive touch TFT screen (1024x600) |
| Incorporates omnidirectional microphone |
| Built-in speaker |
| Volume configurable locally or with the management software |
| G.711U audio compression |
| Noise suppression and echo cancellation |
| Broadband R-Reach Wired Network |
| Two-wire network interface |
| Incorporates WiFi 802.11b/g/n |
| Network Protocol: TCP/IP, SIP, RTSP |
| 8 alarm inputs |
| 2 relay outputs |
| SD card slot for up to 32GB (card not included) |
| RS485 port |
| Two-wire power interface |
| Consumption: <6 w="" td=""> |
| Operating temperature: -10°C ~ +55°C |
| Operating humidity: 10% ~ 90% |
| Dimensions: 200 (W) x 140 (H) x 23.6 mm |
| Weight: 355 g |
