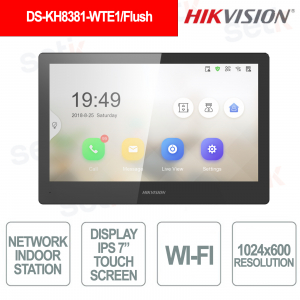

DS-KH8381-WTE1/Flush - is an indoor IP video intercom monitor designed for modern smart systems, ideal for access control and home security management. Equipped with a 7" IPS touch display with 1024×600 resolution , it offers clear images and intuitive use thanks to the practical physical button for opening the door. It supports integrated Wi-Fi , IEEE802.3at PoE power supply and remote control via the Hik-Connect app to receive calls and view cameras from anywhere. The die-cast aluminum alloy structure, together with support for relays, alarm inputs, RS-485 and TF card up to 128 GB, guarantees high performance and maximum integration with Hikvision security systems. Hikvision

Technical Data Sheet

referencia : DS-KH8381-WTE1/Flush

brand : Hikvision

EAN: 6936422125844

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Desde el año de su nacimiento, su prestigio ha crecido tanto que en 2015 se convertirá en la primera realidad mundial en materia de seguridad.

A partir de 2016 Hikvision expande su mercado convirtiéndose en Proveedor de Soluciones Totales para todo el mercado de la seguridad. Así entra en el mundo de la detección de intrusos y luego se acerca a las nuevas tecnologías e inteligencia al servicio de la humanidad ocupándose de IO, Visión Artificial, Robótica y Sistemas Automovilísticos. De líder en seguridad, Hikvision se convierte con compromiso, pasión y competencia en una empresa de alta tecnología con una visión 4.0, siempre apuntando alto.

Por lo tanto, Setik se siente honrado de ser un distribuidor de Hikvision. Como siempre, ofreceremos productos de última generación y el apoyo técnico y comercial adecuado.

[short_description] =>

Videosorveglianza Hikvision

Hikvision fue fundada en 2001 con el objetivo de crear y desarrollar soluciones profesionales completas de videovigilancia, convirtiéndose rápidamente en un líder en el mundo de la seguridad.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Seguridad hikvision [meta_keywords] => Seguridad hikvision [meta_description] => Hikvision fue fundada en 2001 y pronto se convirtió en líder del mundo de la videovigilancia. Descubra ahora los productos del catálogo! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

DS-KH8381-WTE1/Flush – NETWORK INDOOR STATION

Hikvision

Hikvision DS-KH8381-WTE1/Flush is an indoor IP monitor designed for smart video intercom systems and advanced access control, ideal for modern homes and professional environments. Equipped with a 7” IPS touch display with 1024×600 resolution , it guarantees clear images and intuitive call management, door opening and live camera viewing via the Hik-Connect app. The premium die-cast aluminum alloy structure ensures elegance and resistance, while integrated Wi-Fi support, IEEE802.3at PoE power supply and flush or surface installation offer maximum flexibility. Compatible with advanced functions such as elevator control, alarm inputs, relays, RS-485 and TF memory up to 128 GB.

Main features:

- 7” TFT capacitive touch screen

- HD resolution 1024 × 600

- Remote control via Hik-Connect

- Integrated Wi-Fi 802.11 b/g/n

- IEEE802.3af PoE support

- Support up to 16 internal extensions

- 8-channel alarm input

- Support TF card up to 128GB

- Flush-mounted and surface installation

- Die-cast aluminum alloy structure

Further details

✅ 7” TFT Touch Screen:
The IPS capacitive display ensures a modern and intuitive visual experience, with bright colors, a wide viewing angle and quick control of video intercom functions, ideal for smart homes and professional security systems.
✅ 1024 × 600 HD Resolution:
 High-definition video quality ensures sharp, detailed images during live view of cameras and outdoor stations, improving security and access control.
✅ Integrated Wi-Fi 802.11 b/g/n :
Wireless connectivity allows for easier installation without complex wiring, ensuring stable communication with the video intercom system and remote management via the Hik-Connect app.
✅ IEEE802.3af PoE Power Supply :
Thanks to Power over Ethernet technology, the device transmits data and power via a single network cable, reducing installation time and professional cabling costs.
✅ 8-Channel Alarm Input :
Support for connecting sensors and intrusion detection systems allows the monitor to be integrated with advanced security systems, receiving notifications and managing alarms in real time directly from the internal panel.

Technical data sheet

DS-KH8381-WTE1/Flush
System parameters
Operation system Embedded Linux operation system
ROM 32 MB
RAM 128 MB
Processor Embedded high performance processor
Display parameters
Size 7-inch
Operation method Capacitive touch screen
Type Colorful IPS
Resolution 1024*600
Video parameters
Lens /
Resolution /
FOV /
Wide dynamic range (WDR) /
Video compression standard H.265；H.264
Focal length /
Audio parameters
Audio input 1 built-in omnidirectional microphone
Audio compression standard G.711u、G.711a、Opus、AAC-LD、AAC-LC、G.726、G.722.1
Audio output 1 built-in loudspeaker
Audio compression bitrate 16, 32, 64 Kps
Audio quality Noise suppression and echo cancellation
Volume adjustment Adjustable
Capacity
Message capacity TF card inserted: 200 captured pictures, 200 alarm records
Without TF card: 2 MB RAM for picture storage; The storage number is decided by the picture size, 200 alarm records
Notice capacity 200
Linked network camera capacity 16
Linked indoor extensions capacity 16
Linked doorphone capacity /
Network parameters
Network protocol TCP/IP, SIP, RTSP
Wi-Fi Wi-Fi 802.11 b/g/n
Wireless network 1 RJ-45 10/100Mbps self-adaptive
Bluetooth /
3G/4G /
Zigbee /
Device interfaces
Alarm input 8
Network interface 1 RJ-45 10/100 Mbps self-adaptive
TAMPER /
RS-485 1
USB /
TF card Support TF card, up to 128G
Alarm output /
Lock control 4 relays, Max. 30 VDC 1A
Power supply output Max. 12 VDC 0.5 A
Debugging port 1
Relay 4
General
Button 1 physical button(s)
Installation Flush mounting, surface mounting, table mounting
Indicator /
Weight Without package: 412.2 g (0.909 lb)
Protective level /
Working temperature -10 °C to 50 °C (14 °F to 122 °F)
Working humidity 10% to 90% (no condensation)
Dimensions 180.4 mm × 128.4 mm × 21.8 mm (7.10" × 5.06" × 0.86")
Battery /
Power supply method IEEE802.3at, Standard PoE, 12 VDC, 1.5 A
Application environment Indoor
Power consumption ≤ 12 W
Language English, Arabic, French, Russian, Spanish, Spanish (Latin America), Italian, German, Polish, Turkish, Portuguese, Portuguese (Brazil), Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese
Material Die-cast integrated aluminum alloy casing
